MS3454LS20-3PY

Heilind Number:	AMP1558661-9
Manufacturer:	Aero-Electric Connector \| Conesys
Manufacturer Number:	MS3454LS20-3PY
Datasheet:	Agency Approval Document (CQC)
ECAD Model:

Description:

T9GV1L14-110

More >>

Specifications

Attribute	Value
Product Category:	Relays Power Relays
Manufacturer:	Aero-Electric Connector \| Conesys
Manufacturer Part Number:	Aero-Electric Connector \| Conesys MS3454LS20-3PY
Amperage:	30 A
Mount Type:	Printed Circuit Board
Contact Material:	Silver Tin Oxide (AgSnO)
Number of Poles:	1
Coil Resistance:	13444 Ω
Coil Voltage:	110 VDC
Maximum Switching Voltage:	480 VAC
Termination Type:	Printed Circuit Terminals
Contact Voltage:	250 VAC
Operating Temperature Range:	-40 - 105 °C
Contact Arrangement:	1 Form A (NO)
SKU:	AMP1558661-9

Detailed Description

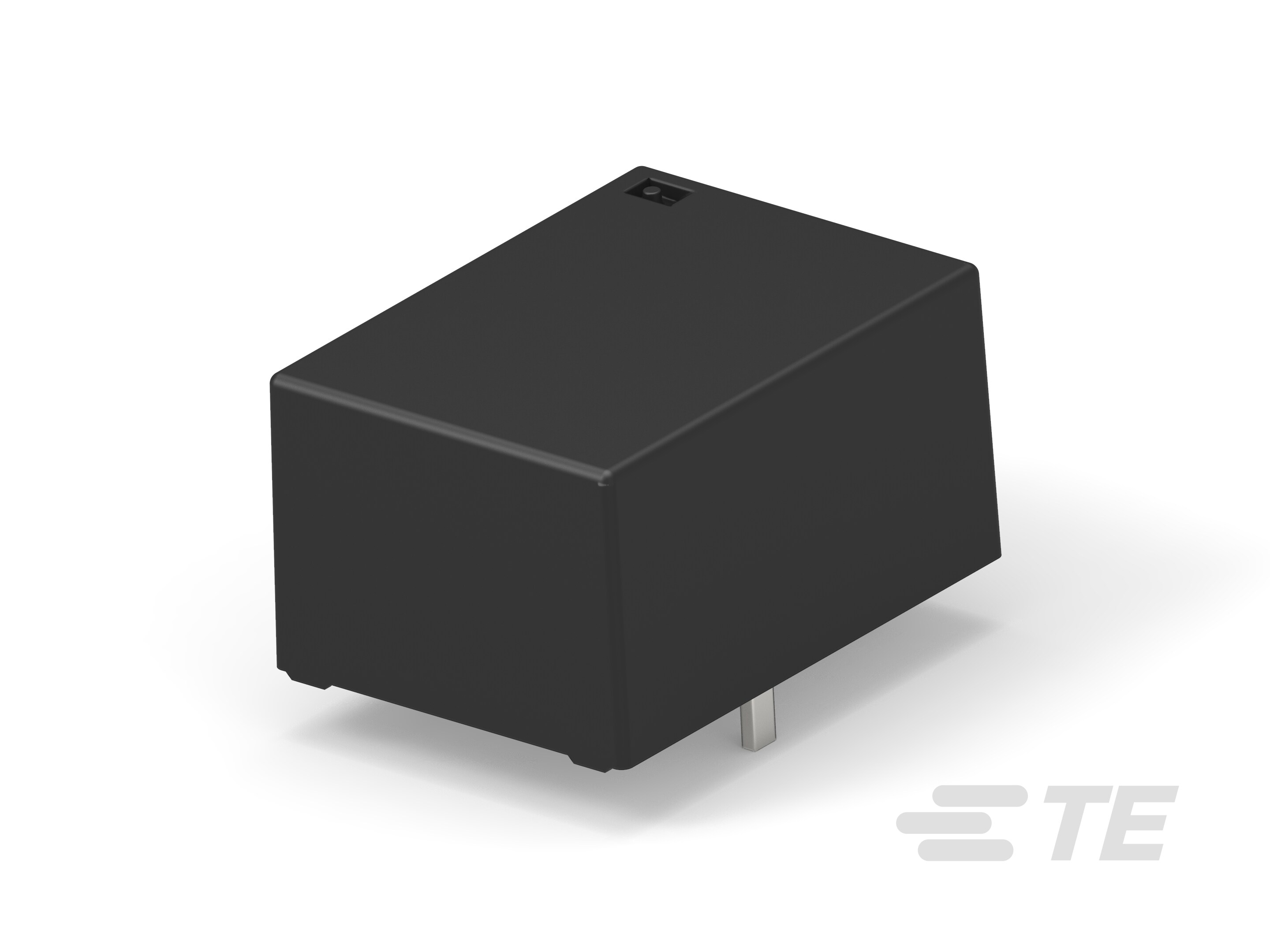

Elevate your circuit board's performance with the T9GV1L14-110 relay. Designed for reliability and efficiency, this power relay boasts a 30A amperage rating and a single pole configuration with 1 Form A (NO) contact arrangement. Featuring Printed Circuit Terminals for easy installation, its silver tin oxide contact material ensures optimal conductivity. With a coil resistance of 13444Ω and a coil voltage of 110VDC, this relay is engineered for seamless operation. Its wide operating temperature range of -40 to 105°C, along with a maximum switching voltage of 480VAC, guarantees versatility in various applications, while its RoHS compliance underscores its commitment to environmental responsibility. Perfect for HVAC systems and other high-power applications, this relay is a must-have component for any project in need of reliable switching capabilities.
