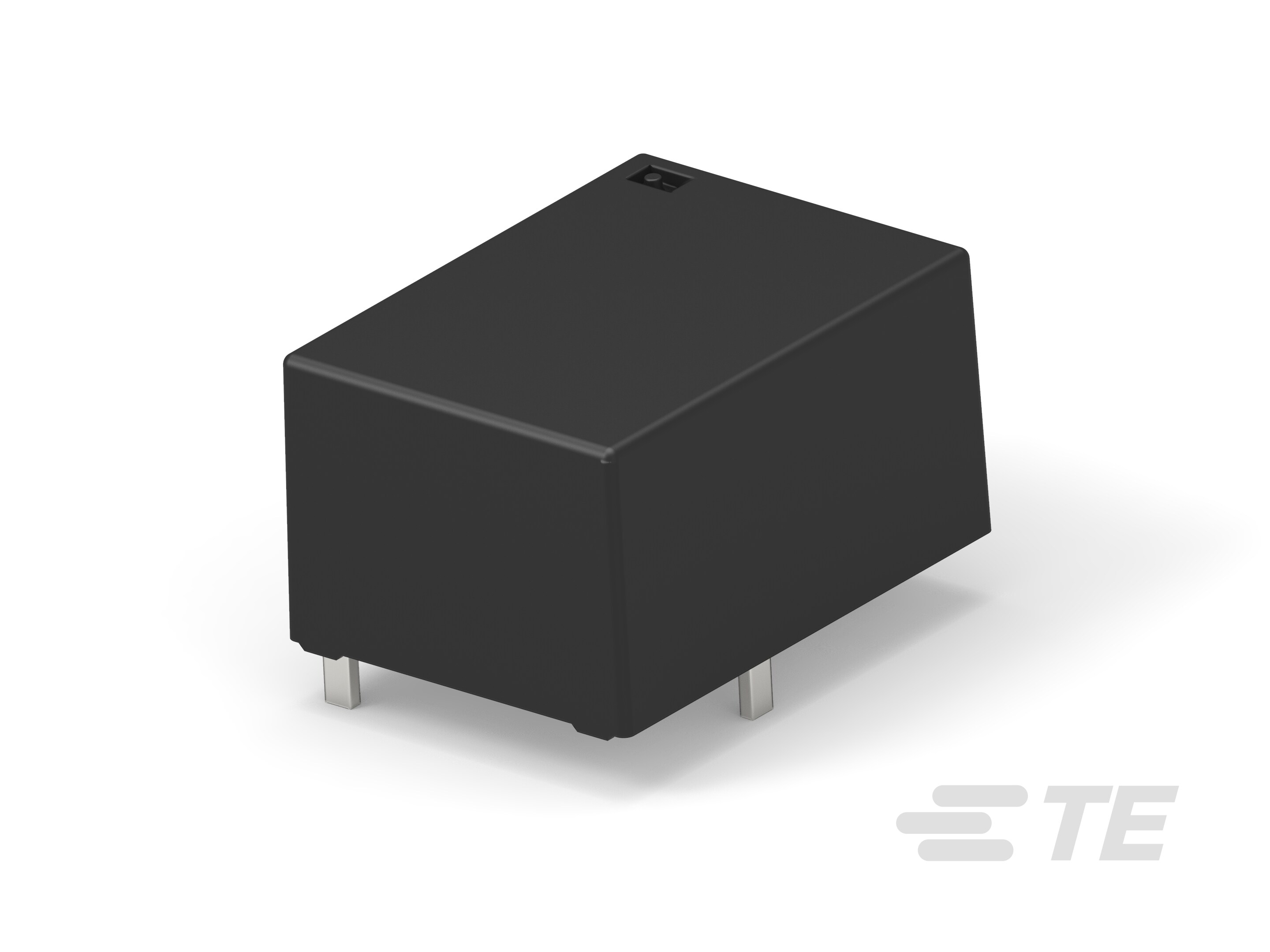

1558662-7

Heilind Number:	AMP1558662-7
Manufacturer:	TE Connectivity
Manufacturer Number:	1558662-7
Datasheet:	Agency Approval Document (UL)
ECAD Model:

Description:

T9GV2L14-24

More >>

Specifications

Attribute	Value
Product Category:	Relays Power Relays
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 1558662-7
Amperage:	20 A
Mount Type:	Printed Circuit Board
Contact Material:	Silver Tin Oxide (AgSnO)
Number of Poles:	1
Coil Resistance:	640 Ω
Coil Voltage:	24 VDC
Maximum Switching Voltage:	480 VAC
Termination Type:	Printed Circuit Terminals
Contact Voltage:	250 VAC
Operating Temperature Range:	-40 - 105 °C
Contact Arrangement:	1 Form B (NC)
SKU:	AMP1558662-7

Detailed Description

Enhance your circuit board's efficiency with our T9GV2L14-24 Power Relay. Designed for HVAC applications, this relay features a single pole with a 1 Form B (NC) contact arrangement, ensuring reliable performance. With a 20A amperage and 24VDC coil voltage, it can handle high-power loads with ease. The silver tin oxide contact material guarantees durability and efficient conductivity, while the wide operating temperature range of -40 to 105°C makes it suitable for various environments. Trust in this relay for seamless power control and maximum switching voltage of 480VAC.
