1558666-4

product logo
Heilind Number:AMP1558666-4
Manufacturer:TE Connectivity
Manufacturer Number:1558666-4
Datasheet:Agency Approval Document (CQC)
ECAD Model:
3D Model

Description:

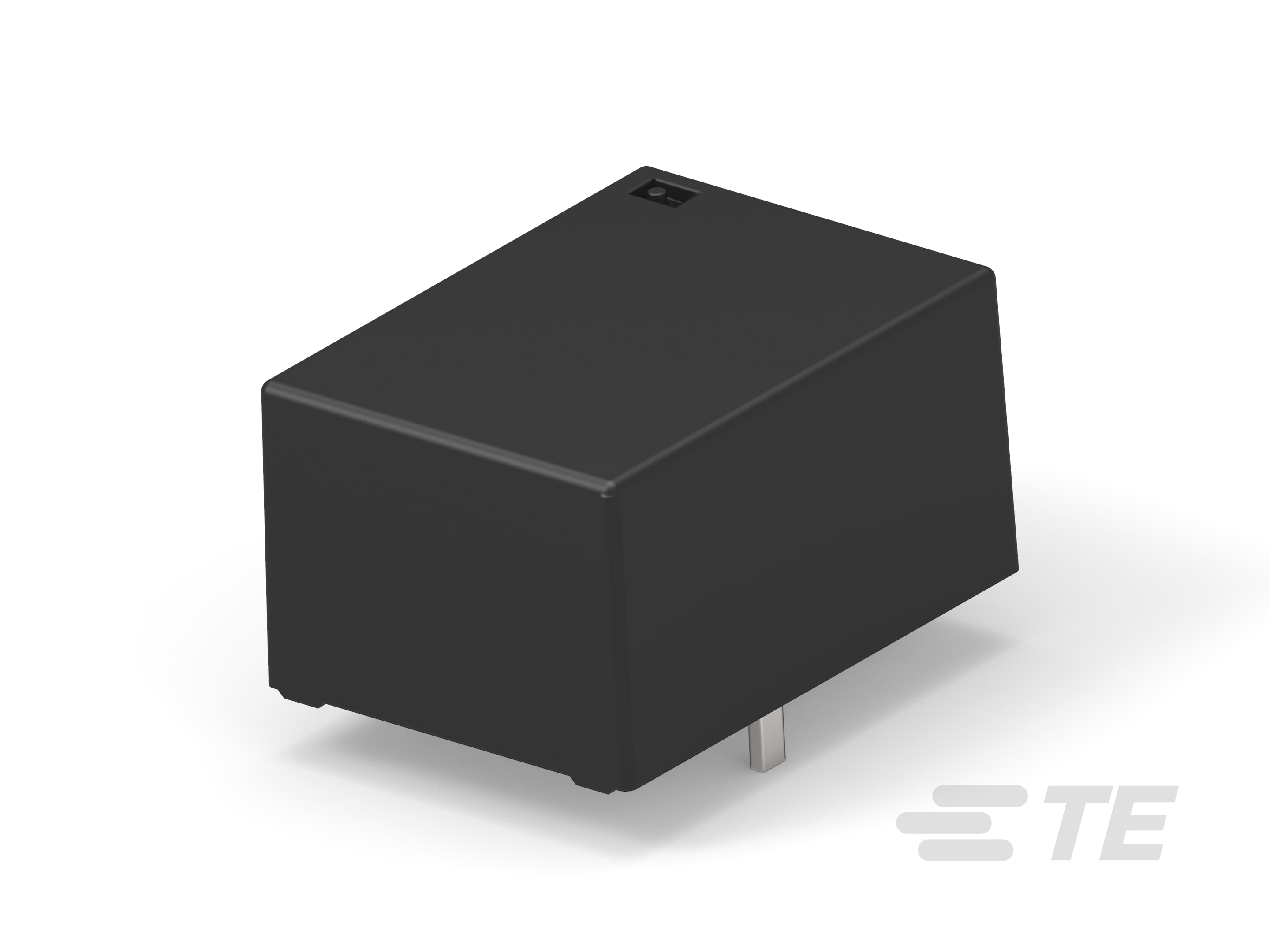

T9GS1L14-15

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1558666-4
Amperage:30 A
Mount Type:Printed Circuit Board
Contact Material:Silver Tin Oxide (AgSnO)
Number of Poles:1
Coil Resistance:249 Ω
Coil Voltage:15 VDC
Maximum Switching Voltage:480 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:250 VAC
Operating Temperature Range:-40 - 105 °C
Contact Arrangement:1 Form A (NO)
SKU:AMP1558666-4

Detailed Description

The T9GS1L14-15 Power Relay offers reliable and efficient performance for a variety of applications. With a maximum amperage of 30A and a coil voltage of 15VDC, this relay is designed for optimal power control. Featuring a single pole configuration and silver tin oxide contact material, it ensures high conductivity and durability. Suitable for Printed Circuit Board mounting, it guarantees secure installation. Operating within a wide temperature range of -40 to 105°C, it's ideal for use in harsh environments. With RoHS compliance and a contact voltage of 250VAC, it meets international safety standards. Perfect for HVAC systems and other industrial applications, this relay is a dependable solution for power switching needs.
