MS3454LS20-7PX

Heilind Number:	AMP1558666-5
Manufacturer:	Aero-Electric Connector \| Conesys
Manufacturer Number:	MS3454LS20-7PX
Datasheet:	Agency Approval Document (CQC)
ECAD Model:

Description:

T9GS1L14-18

More >>

Specifications

Attribute	Value
Product Category:	Relays Power Relays
Manufacturer:	Aero-Electric Connector \| Conesys
Manufacturer Part Number:	Aero-Electric Connector \| Conesys MS3454LS20-7PX
Amperage:	30 A
Mount Type:	Printed Circuit Board
Contact Material:	Silver Tin Oxide (AgSnO)
Number of Poles:	1
Coil Resistance:	360 Ω
Coil Voltage:	18 VDC
Maximum Switching Voltage:	480 VAC
Termination Type:	Printed Circuit Terminals
Contact Voltage:	250 VAC
Operating Temperature Range:	-40 - 105 °C
Contact Arrangement:	1 Form A (NO)
SKU:	AMP1558666-5

Detailed Description

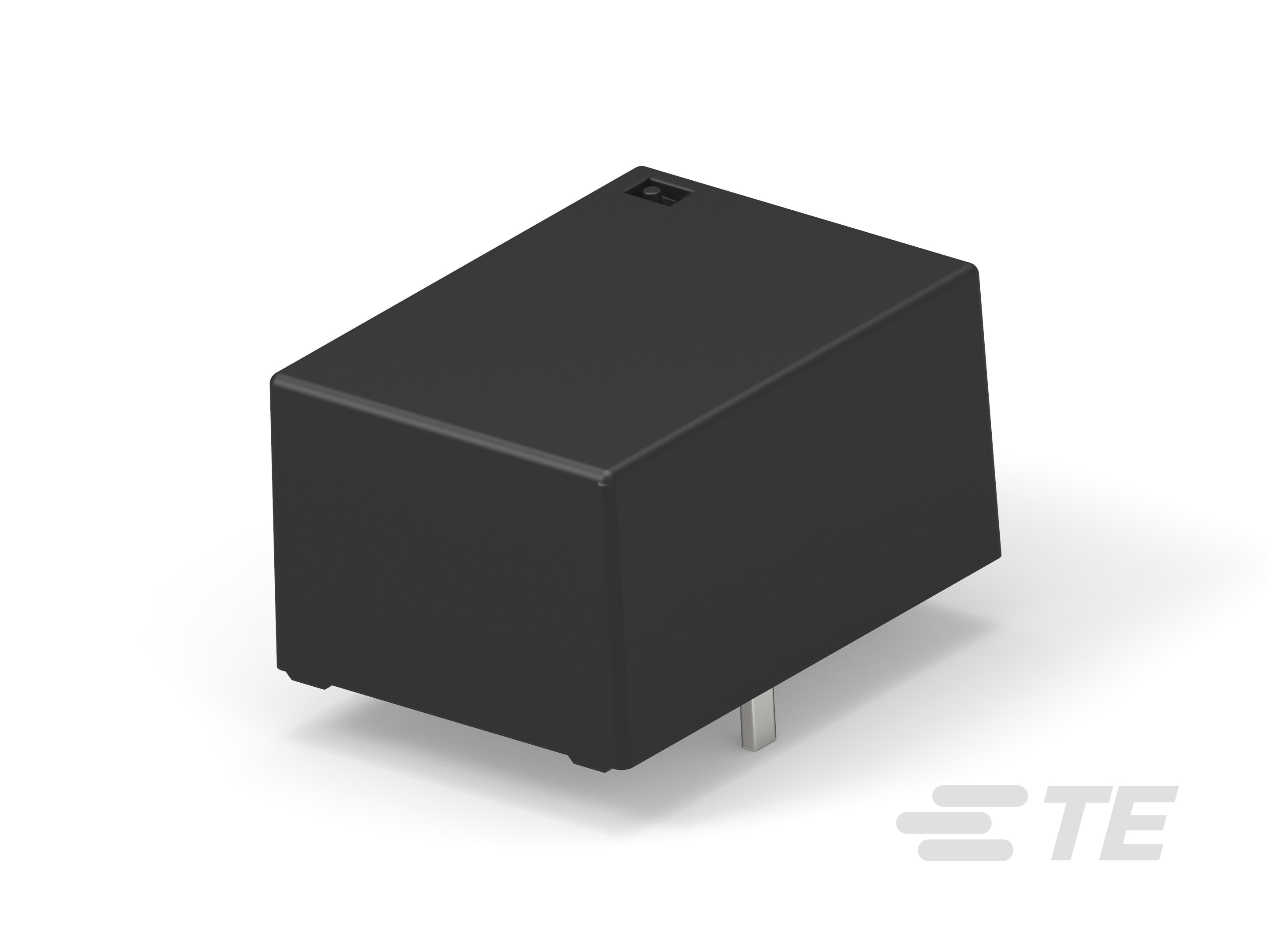

Enhance the performance of your circuit board with the T9GS1L14-18 Power Relay, designed for reliable power control. With a 30A amperage and silver tin oxide contact material, this relay ensures efficient and durable operation. Featuring a single pole and 1 Form A contact arrangement, it offers seamless NO connection. The coil resistance of 360Ω and 18VDC coil voltage guarantee optimal functionality, while the high maximum switching voltage of 480VAC and contact voltage of 250VAC make it suitable for various applications. RoHS compliant and operable in a wide temperature range from -40 to 105°C, this relay is a quality choice for HVAC and other electronic systems. Upgrade your relay system now for enhanced performance and durability.
