| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1558666-6 |
| Amperage: | 30 A |
| Mount Type: | Printed Circuit Board |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Number of Poles: | 1 |
| Coil Resistance: | 538 Ω |
| Coil Voltage: | 22 VDC |
| Maximum Switching Voltage: | 480 VAC |
| Termination Type: | Printed Circuit Terminals |
| Contact Voltage: | 250 VAC |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Arrangement: | 1 Form A (NO) |
| SKU: | AMP1558666-6 |
1558666-6
| Heilind Number: | AMP1558666-6 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1558666-6 |
| Datasheet: | Agency Approval Document (CQC) |
| ECAD Model: | |
Specifications
Detailed Description

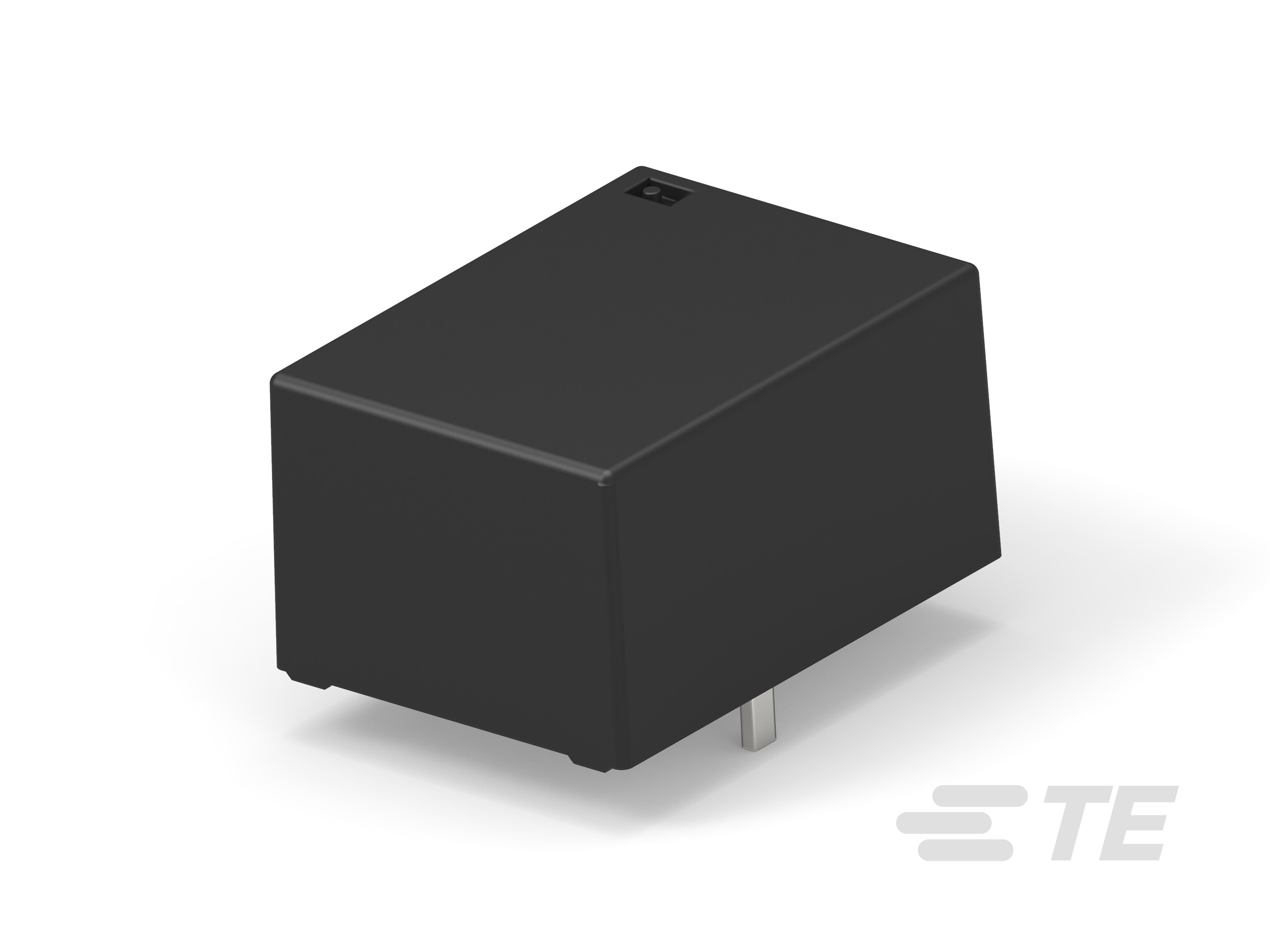

Enhance circuit connectivity with this high-performance relay, designed for efficient power transmission in HVAC systems and beyond. With a robust 30A amperage and 538Ω coil resistance, it ensures reliable operation under varying conditions. The 1 Form A (NO) contact arrangement, made of Silver Tin Oxide (AgSnO), guarantees optimal conductivity, while the 22 VDC coil voltage offers seamless activation. Suitable for Printed Circuit Board mounting, it features Printed Circuit Terminals for easy installation. With a maximum switching voltage of 480 VAC and a contact voltage of 250 VAC, it meets stringent safety standards. Operating flawlessly in temperatures ranging from -40 to 105 °C, this relay is a durable and RoHS-compliant solution for your power relay needs.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 1-1558661-6 |  | |
 | TE Connectivity 1-1558666-6 | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
