| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1558666-8 |
| Amperage: | 30 A |
| Mount Type: | Printed Circuit Board |
| Contact Material: | Silver Tin Oxide (AgSnO) |
| Number of Poles: | 1 |
| Coil Resistance: | 2560 Ω |
| Coil Voltage: | 48 VDC |
| Maximum Switching Voltage: | 480 VAC |
| Termination Type: | Printed Circuit Terminals |
| Contact Voltage: | 250 VAC |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Arrangement: | 1 Form A (NO) |
| SKU: | AMP1558666-8 |
1558666-8
| Heilind Number: | AMP1558666-8 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1558666-8 |
| Datasheet: | Agency Approval Document (UL) |
| ECAD Model: | |
Specifications
Detailed Description
Elevate your circuit board with the T9GS1L14-48 power relay, designed for seamless integration and dependable performance. With a robust 30A amperage and 48VDC coil voltage, this relay offers reliable switching capabilities for your HVAC systems and other applications. Crafted with silver tin oxide contacts and a single pole configuration, it ensures efficient conductivity and longevity. Operating in a wide temperature range from -40 to 105 °C, it's built to withstand harsh environments. RoHS compliant, it's also environmentally friendly. Upgrade your setup with this essential component for optimal functionality and peace of mind.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|

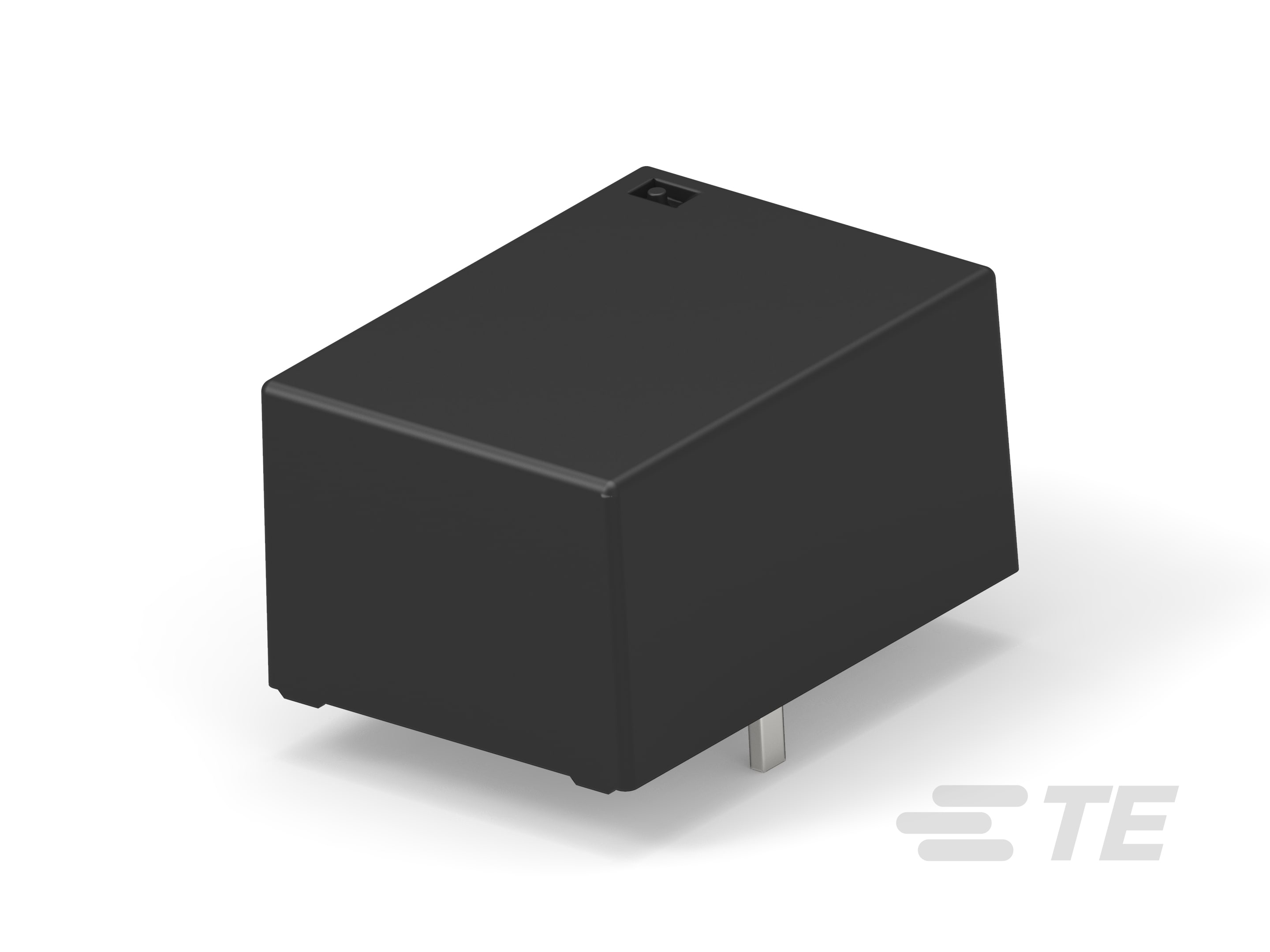

 | TE Connectivity 1-1558661-8 |  | |

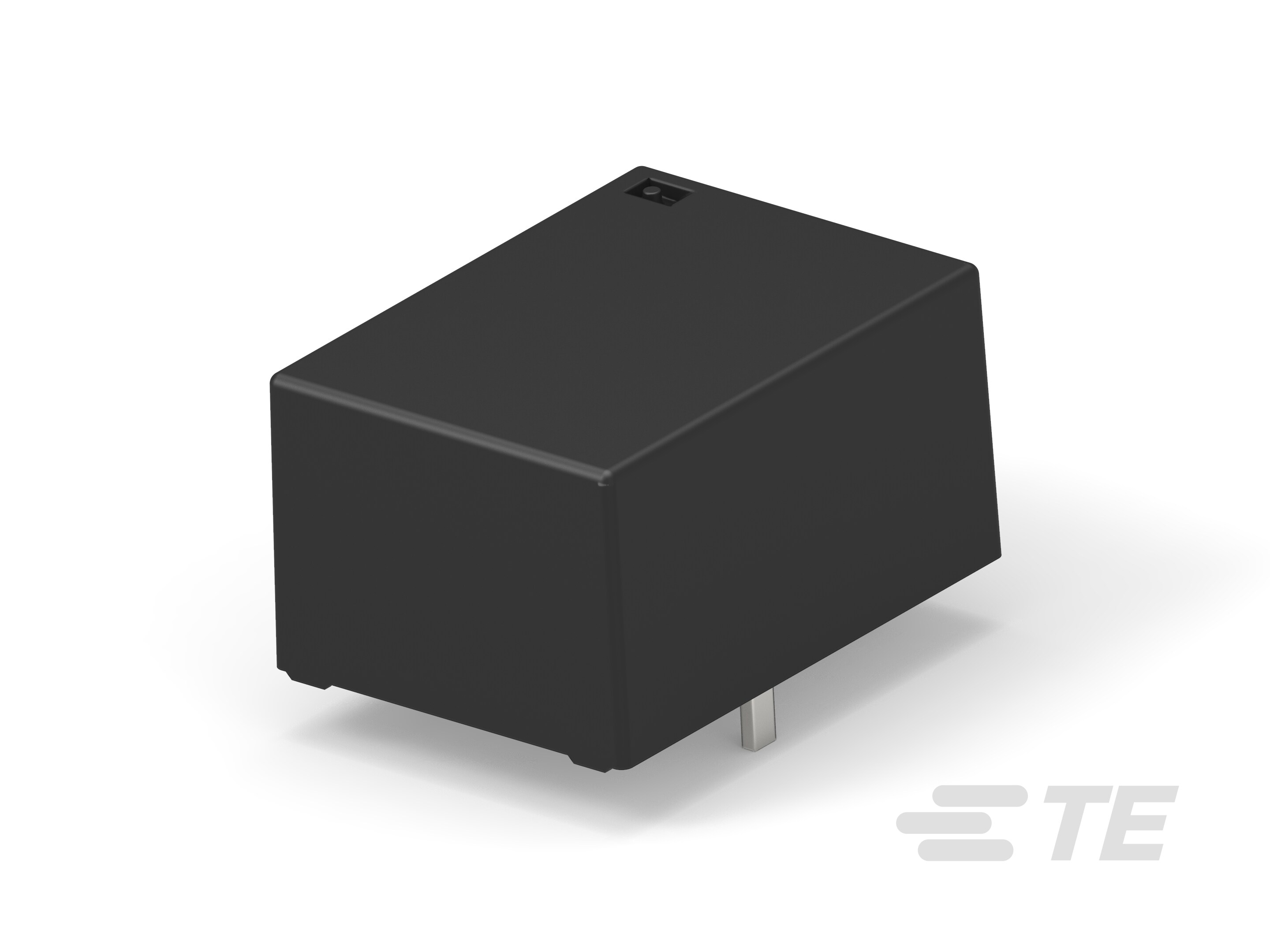

 | TE Connectivity 1-1558666-8 | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
