| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1617110-2 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 390 Ω |
| Coil Voltage: | 12 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/6-004M |
| SKU: | AMP1617110-2 |
1617110-2
| Heilind Number: | AMP1617110-2 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 1617110-2 |
| ECAD Model: | |
Specifications
Detailed Description

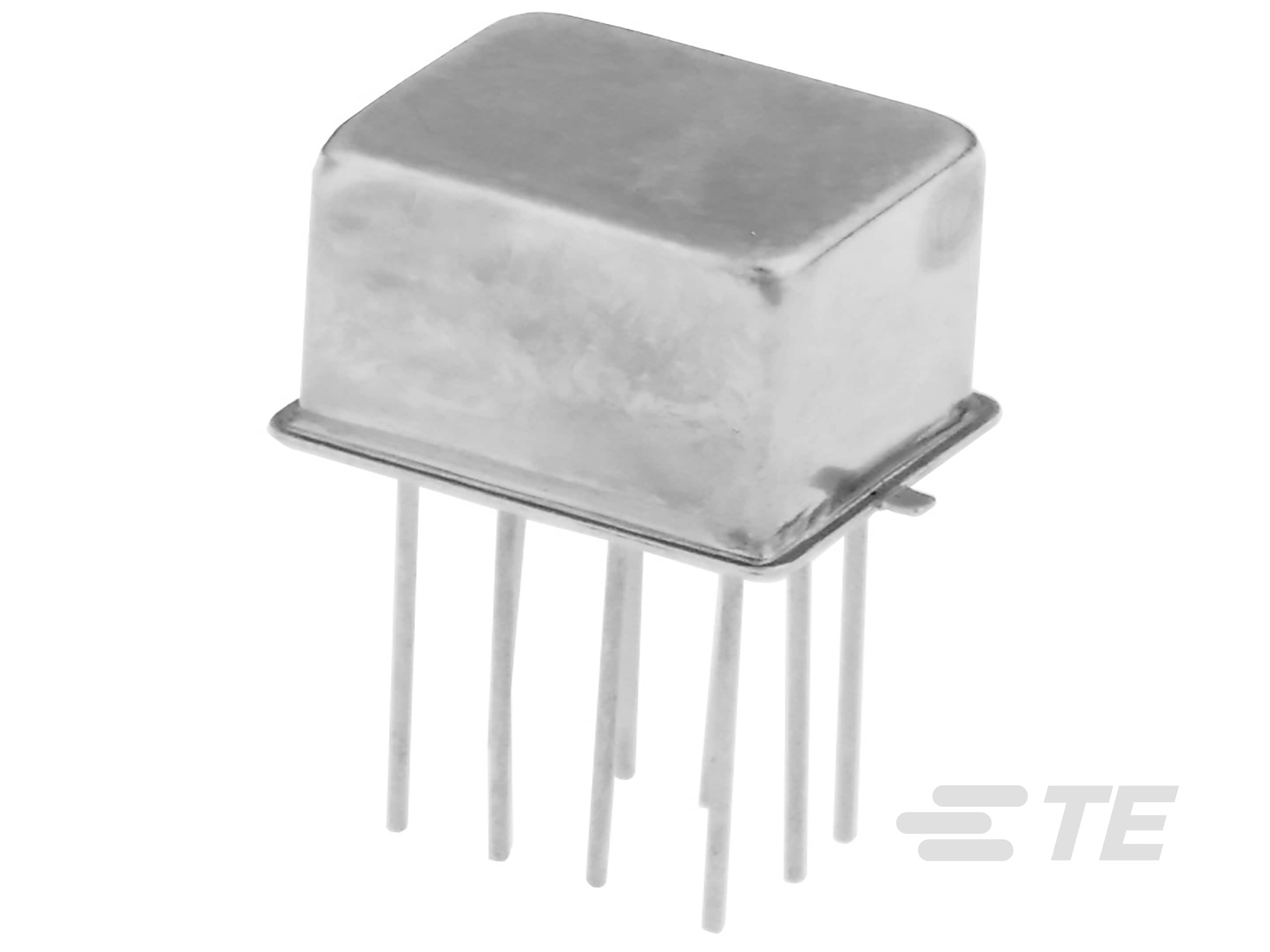

Introducing the JMGAT-12M Signal Relay, a high-performance component designed for printed circuit board mounting. With a coil resistance of 390 Ω and a coil voltage of 12 VDC, this relay offers reliable operation in a variety of applications. Featuring a 2 Form C contact configuration (DPDT, 2 C/O), it provides versatile switching capabilities. The contact current rating of 1 A and maximum switching voltage of 28 VDC make it suitable for signal and communication systems. Termination is through PC Pin(s), ensuring easy and secure installation. While not RoHS compliant, this relay, also known as M28776/6-004M, is a reliable choice for your relay needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 1617110-2 |
| Other Names: | M28776/6-004M |
