| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity TD229C-1203TY |
| Amperage: | 10 A at 28 VDC, 115 VAC |
| Mount Type: | Raised Vertical Flange Mount |
| Operation Type: | Delay on Release |
| Repeatability: | ±10% |
| Termination Type: | Solder Pin Terminal |
| Status Indicator: | None |
| Enclosure: | Hermetic Sealed Metallic |
| Dimensions: | 1.015 x 1.015 x 1 in, 25.79 x 25.79 x 25.4 mm |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | 120 seconds |
| Input Voltage: | 28 VDC |
| Control Type: | Fixed |
| SKU: | AMP1617805-4 |

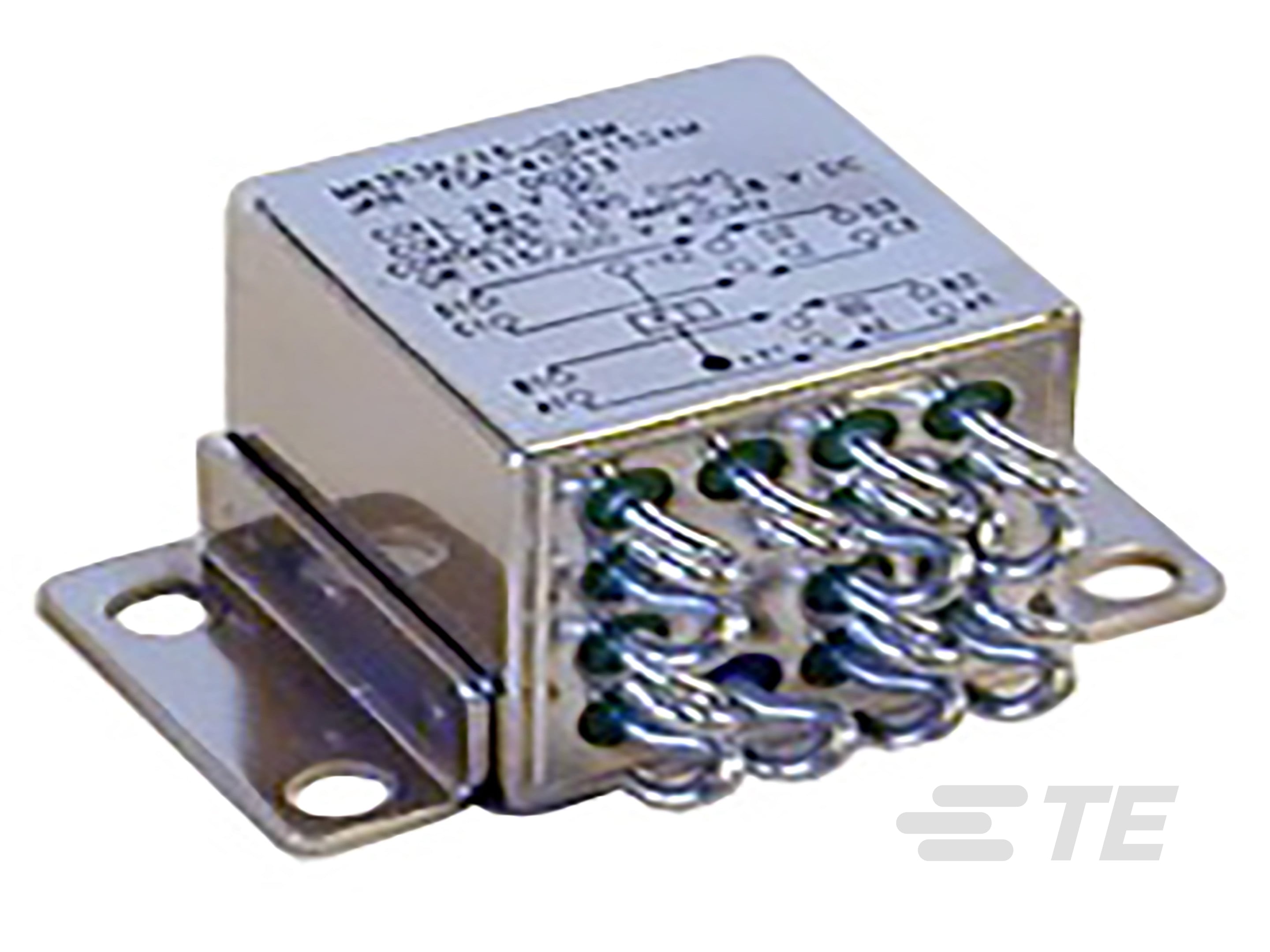

TD229C-1203TY
| Heilind Number: | AMP1617805-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | TD229C-1203TY |
| Datasheet: | 3D Model (STP) |
| ECAD Model: | |
Specifications
Detailed Description
Enhance your electrical system with the TD229C-1203TY=TDFR 120 SEC Time Delay Relay. Operating at 10 A with 28 VDC and 115 VAC, this relay offers reliable performance in a compact form. Featuring a Raised Vertical Flange Mount for easy installation, it ensures secure connectivity with Solder Pin Terminals. The Delay on Release operation type, along with a repeatability of ±10%, guarantees precise timing control. With an enclosure that is Hermetic Sealed Metallic, it is durable and suitable for various environments. Its 2 Form C, DPDT contact arrangement provides versatility, and the fixed control type simplifies setup. Ideal for applications requiring a 120-second delay, this relay is a dependable component for your projects. Please note, it is not RoHS compliant.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
