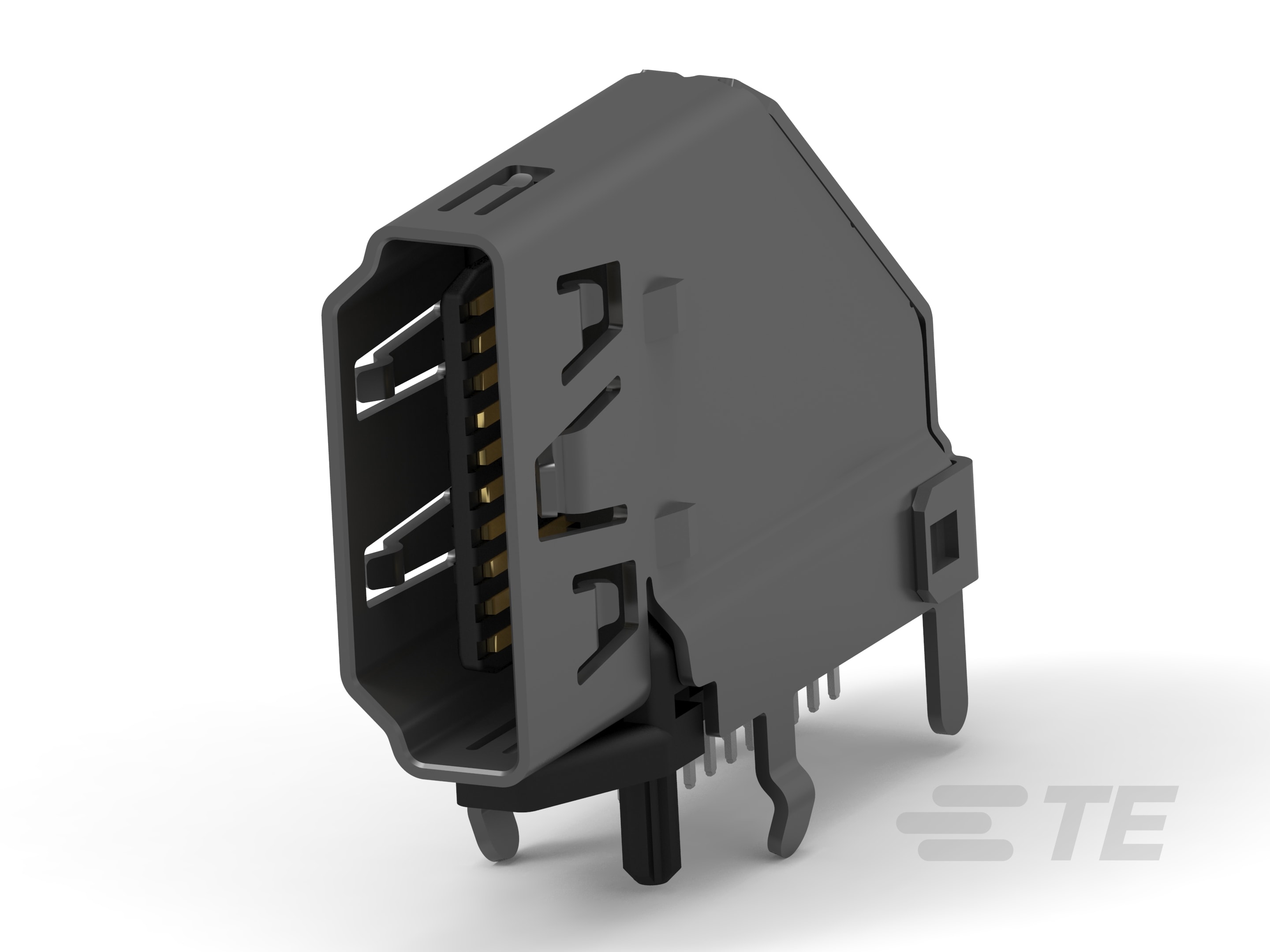

2007435-1

AMP2007435-1
Heilind Number:AMP2007435-1
Manufacturer:TE Connectivity
Manufacturer Number:2007435-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Std HDMI, Flag, T/H

More >>

Specifications

AttributeValue
Product Category:
Audio, Video & Broadcast Connectors & Accessories Audio, Video & Broadcast Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007435-1
Color:Black
Series:HDMI Type A Standard
Amperage:.5 A
Gender:Receptacle
Mount Type:Board Mount
Termination Method:Solder
Contact Plating:Gold
Pitch:.039 in, 1 mm
Connector Size:526
Shell Plating:Tin
Number of Ports:1
Orientation:Flag
Mount Location:Top
Size:Standard
Contact Amperage:.5 A
Number of Positions:19
Housing Color:Black
Termination Type:Through Hole
GPL:450
Tail Length:.091 in, 2.3 mm
Packaging:Tray
Operating Temperature Range:-20 - 85 °C, -4 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:15 µin, .38 µm
Mating Cycles:10000
PCB Thickness (Recommended):.063 in, 1.6 mm
PCB Retention Type:Kinked Legs, Straight Leg
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K567
Preloaded:Yes
Connector System:Cable-to-Board
ECCN:EAR99
Shell Plating Finish:Matte
Stacked:No
PCB Mounting Style:Through Hole
Locating Posts:With
Maximum Soldering Temperature:240 °C
Part Aliases:2007435-1
SKU:AMP2007435-1

Detailed Description

Enhance your audio and video connectivity with our Flag HDMI Connector. Featuring standard HDMI compatibility, this black connector is designed for seamless integration onto your circuit board. With gold-plated contacts for optimal signal transmission, it offers a reliable .5A amperage and is RoHS compliant. The flag orientation and top mount location make for easy installation, while its durable construction ensures longevity. Perfect for data and device applications, this connector is a must-have for your cable-to-board setups. Stay connected with quality and performance, upgrade to our Flag HDMI Connector today.
