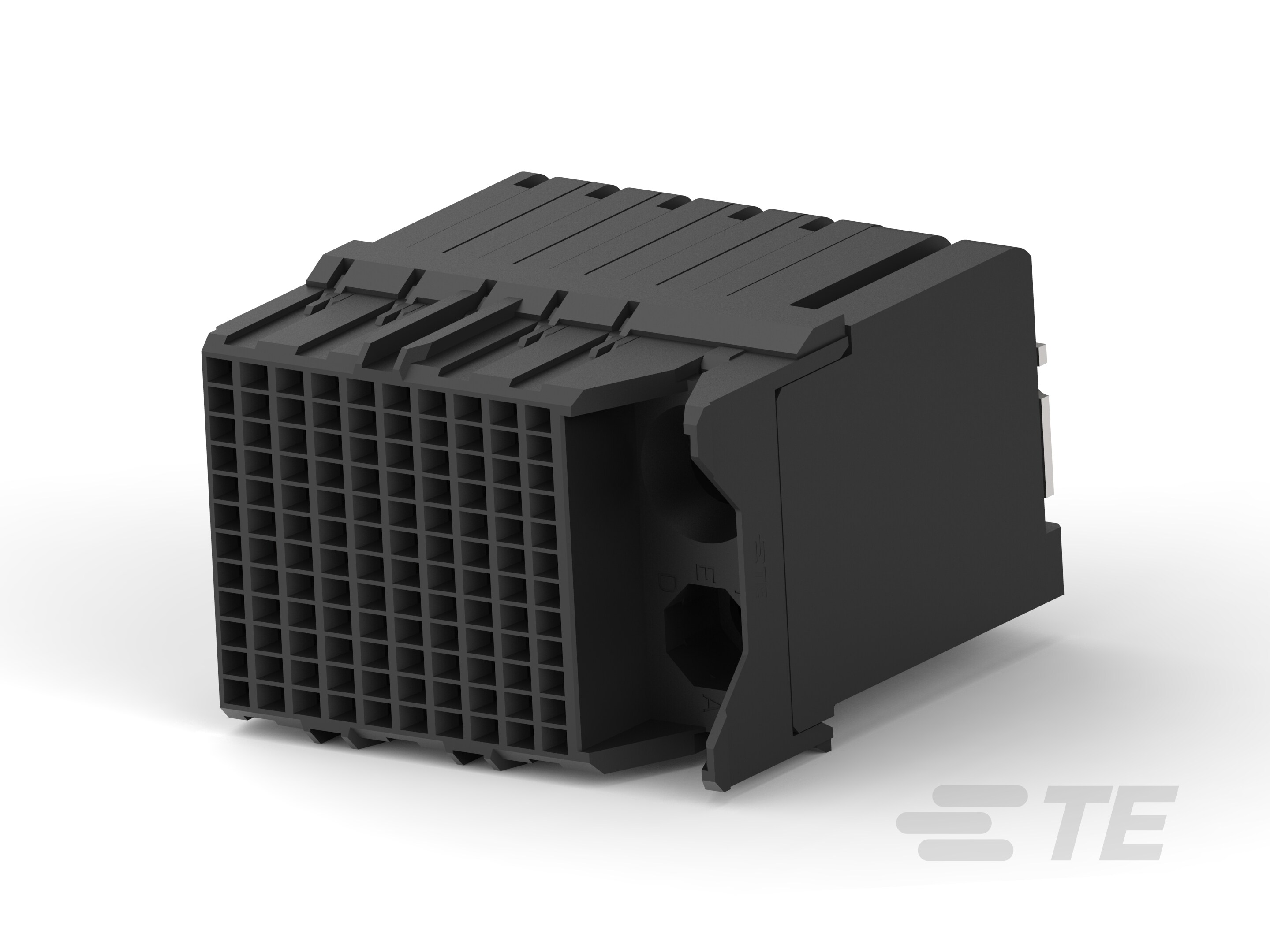

2007716-1

AMP2007716-1
Heilind Number:AMP2007716-1
Manufacturer:TE Connectivity
Manufacturer Number:2007716-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

IMP100S,R,RA4P10C,RG,39

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007716-1
Series:IMPACT
Amperage:.75 A
Connector Type:Connector Assembly
Gender:Receptacle
Housing Material:LCP - GF (Liquid Crystal Polymer)
Number of Contacts:120
Number of Rows:12
Mount Type:Board Mount
Termination Method:Through Hole - Press-Fit
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:185 °F, 85 °C
Body Orientation:Right Angle
Pitch:.075 in, 1.9 mm
Voltage:30 V AC, 30 V DC
Contact Type:Socket
Contact Length:26.6 mm
Row Spacing:.053 in, 1.35 mm
Impedance:100 Ω
PCB Hole Diameter:.015 in, .39 mm
Number of Pairs:40
Number of Positions:120
Data Rate:20 - 25 Gb/s
Housing Color:Black
Mount Orientation:Right Angle
GPL:K74
Tail Length:.047 in, 1.2 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:30 µin, .762 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1 mm
Connector Height:17.3 mm, .681 in
PCB Retention Type:Action/Compliant Tail & Screw
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L349
Number of Columns:10
Number of Signal Positions:80
Contact Design:Dual Beam
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:1.047 in
Connector System:Board to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Stackable:No
Connector Product Type:Connector
Pairs Per Column:4
Contact Style:Press-Fit
Board to Board Configuration:Right Angle
Contact Underplating Thickness:1.27 µm, 50 µin
Connector Width:1.11 in, 28.2 mm
Mating Retention:Without
PCB Mount Alignment Type:Locating Posts
Make First / Break Last:No
Stack Height:17.3 mm
Shroud Type:No
PCB Contact Termination Area Plating Thickness:1.27 µm, 50 µin
Guide Location:Right
Number of Ground Positions:40
Guide Hardware:With
Signal Arrangement:Differential
Standards Met:Yes UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2007716-1
SKU:AMP2007716-1

Detailed Description

Experience high-speed connectivity with the IMP100S right-angle receptacle, designed for seamless board-to-board applications in the IMPACT series. This connector boasts a robust construction with UL 94V-0 compliant LCP-GF housing, ensuring reliable performance even in demanding environments. Featuring 120 gold-plated contacts in a dual beam layout, it offers efficient signal transmission at data rates of 20-25 Gb/s. With a pitch of 1.9mm and a 100Ω impedance, it facilitates precision connections on the PCB. Operating temperature range from -55 to 85°C, this connector is suitable for a wide range of applications. Its press-fit termination method and action/compliant tail & screw PCB retention type provide secure mounting, while the keyed mating alignment ensures proper connection orientation. RoHS compliant and UL certified, this connector guarantees both quality and environmental responsibility in your designs. Upgrade your connectivity solutions with the IMP100S for optimal performance.
