| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2007805-1 |
| Amperage: | .75 A |
| Gender: | Plug |
| Number of Rows: | 9 |
| Mount Type: | Board Mount |
| Pitch: | .075 in, 1.9 mm |
| Row Spacing: | .053 in, 1.35 mm |
| Number of Positions: | 144 |
| Mount Orientation: | Vertical |
| GPL: | K74 |
| Operating Temperature Range: | -55 - 85 °C, -67 - 185 °F |
| Circuit Application: | Signal |
| Sealable: | No |
| Mating Alignment: | With |
| Mating Alignment Type: | Polarization |
| GPL Description: | Data and Devices |
| Connector and Contact Terminate To: | Printed Circuit Board |
| Product Code: | L346 |
| Number of Columns: | 16 |
| Connector System: | Board to Board |
| Board to Board Configuration: | Right Angle |
| Shroud Type: | Partial |
| Guide Location: | Unguided |
| Part Aliases: | 2007805-1 |
| SKU: | AMP2007805-1 |

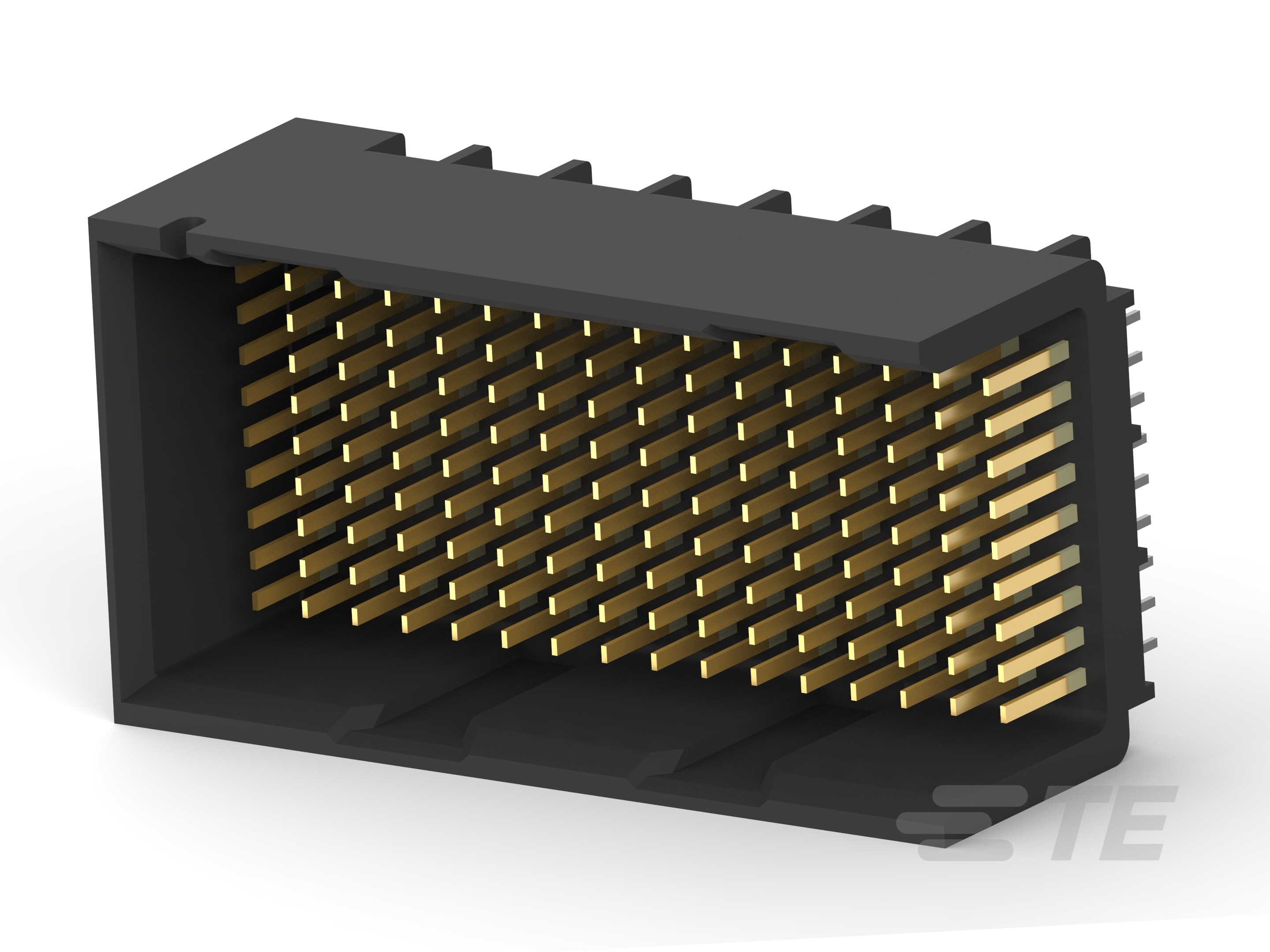

2007805-1
Specifications
Detailed Description
Easily connect your devices with the IMP100S Board-to-Board Connector. This vertical-mount connector features 144 positions in a right-angle configuration, perfect for signal transmission in various applications. With a pitch of 1.9mm and row spacing of 1.35mm, it offers precise connectivity on printed circuit boards. Operating at temperatures ranging from -55 to 85°C (-67 to 185°F), it ensures reliable performance in diverse environments. The connector's polarization ensures proper mating alignment, while its partial shrouding adds extra protection. RoHS compliant, it meets international standards for environmental responsibility. Ideal for data and device connectivity, this connector is a versatile solution for your PCB assembly needs.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 2007711-1 |  |
