2007806-1

AMP2007806-1
Heilind Number:AMP2007806-1
Manufacturer:TE Connectivity
Manufacturer Number:2007806-1
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

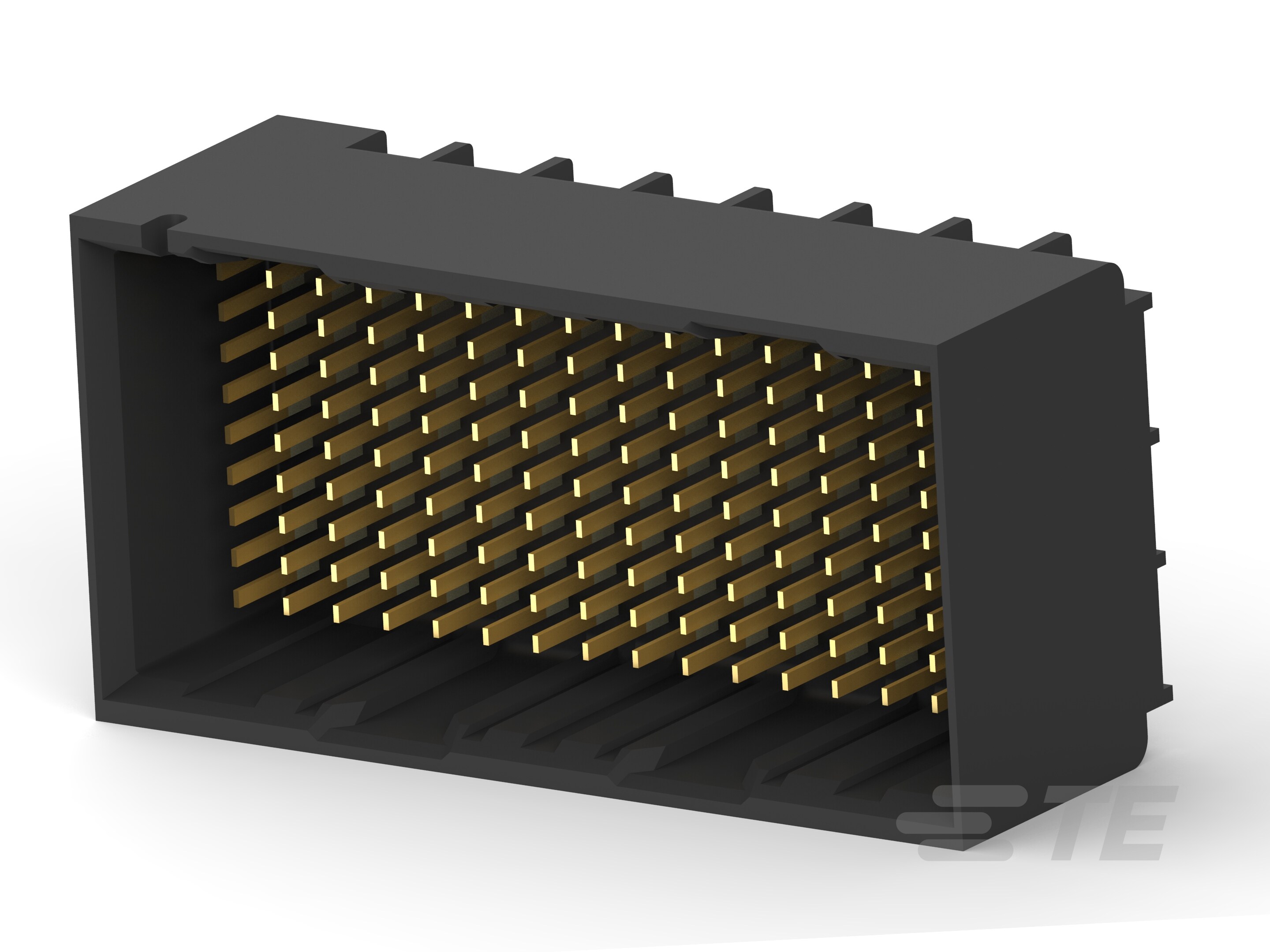

IMP100S,H,V3P16C,UG,DEW39,4.5

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007806-1
Amperage:.75 A
Gender:Plug
Number of Rows:9
Mount Type:Board Mount
Pitch:.075 in, 1.9 mm
Row Spacing:.053 in, 1.35 mm
Number of Positions:144
Mount Orientation:Vertical
GPL:K74
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L346
Number of Columns:16
Connector System:Board to Board
Board to Board Configuration:Right Angle
Shroud Type:Fully
Guide Location:Unguided
Part Aliases:2007806-1
SKU:AMP2007806-1

Detailed Description

Enhance signal connectivity with our IMP100S Board to Board Connector, featuring a high-density 9-row design with 144 positions. Engineered for vertical mounting on PCBs, this connector offers a 1.9mm pitch and fully shrouded, right-angle configuration for secure and efficient board-to-board assembly. With a current rating of .75A, it ensures reliable performance in data and device applications. Operating within a wide temperature range of -55 to 85°C (-67 to 185°F), this connector is suitable for diverse environments. Mating alignment is facilitated by polarization, guaranteeing proper connection alignment. RoHS compliant and designed for ease of use, it is an essential component for your PCB interconnect needs.
