2007809-1

AMP2007809-1
Heilind Number:AMP2007809-1
Manufacturer:TE Connectivity
Manufacturer Number:2007809-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

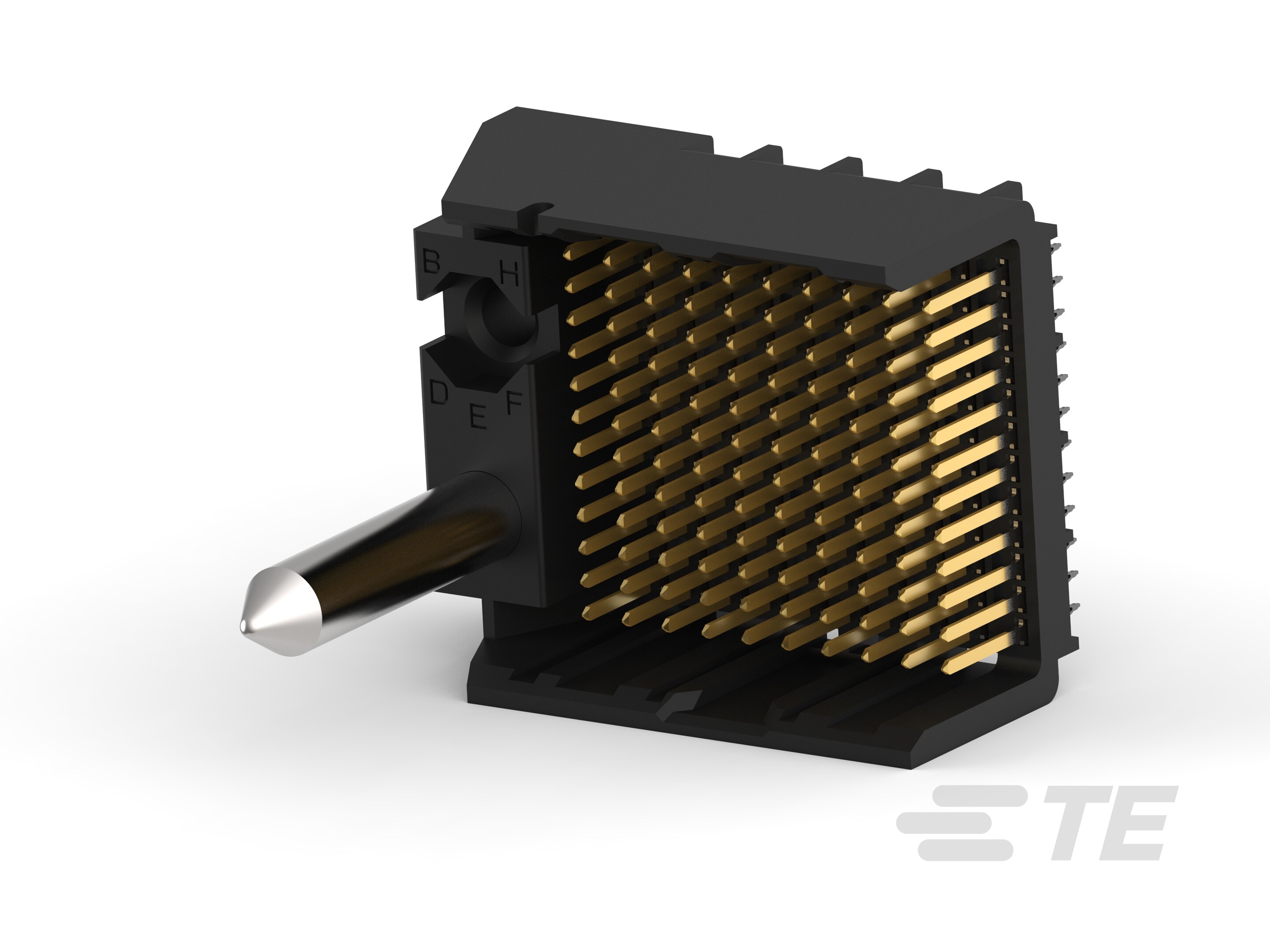

IMP100S,H,V4P10C,LG,OEW39,4.5

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007809-1
Series:IMPACT
Amperage:.75 A
Connector Type:Header
Gender:Plug
Housing Material:LCP - GF (Liquid Crystal Polymer)
Number of Contacts:120
Number of Rows:12
Mount Type:Board Mount
Termination Method:Through Hole - Press-Fit
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:185 °F, 85 °C
Body Orientation:Straight
Pitch:.075 in, 1.9 mm
Voltage:30 V AC, 30 V DC
Contact Type:Pin
Contact Length:.177 in, 25.5 mm, 4.5 mm
Row Spacing:.053 in, 1.35 mm
Impedance:100 Ω
PCB Hole Diameter:.015 in, .39 mm
Number of Pairs:40
Number of Positions:120
Data Rate:20 - 25 Gb/s
Housing Color:Black
Mount Orientation:Vertical
GPL:K74
Tail Length:.055 in, 1.4 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:29.92 µin, .76 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1 mm
Connector Height:24.6 mm, .969 in
PCB Retention Type:Action/Compliant Tail & Screw
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L348
Number of Columns:10
Number of Signal Positions:80
Contact Design:Dual Beam
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:1.004 in
Connector System:Board to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Stackable:No
Connector Product Type:Connector
Pairs Per Column:4
Contact Style:Press-Fit
Board to Board Configuration:Right Angle, Vertical
Contact Underplating Thickness:1.27 µm, 50 µin
PCB Contact Termination Area Plating Finish:Matte
Connector Width:20.8 mm, .819 in
Mating Retention:Without
Make First / Break Last:No
Stack Height:11.95 mm
Shroud Type:Partial
PCB Contact Termination Area Plating Thickness:30 - 60 µin, .76 - 1.52 µm
Guide Location:Left
Number of Ground Positions:40
End Wall Location:Open
Guide Hardware:With
Signal Arrangement:Differential
Standards Met:Yes UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2007809-1
SKU:AMP2007809-1

Detailed Description

Experience high-speed data transmission with our IMP100S 120-position connector. Designed for signal applications, this straight orientation connector features a durable LCP-GF housing and gold-plated copper contacts for reliable performance. With a pitch of 1.9mm and impedance of 100Ω, it ensures efficient signal transmission, meeting UL 94V-0 flammability standards. Operating in a wide temperature range of -55 to 85°C, it's suitable for diverse environments. The through-hole press-fit termination method and board mount design offer secure attachment, while the vertical mount orientation and keyed mating alignment ensure proper connection. Ideal for board-to-board applications, it offers 20-25 Gb/s data rates, making it a versatile choice for high-speed connectivity. RoHS compliant and E28476 UL certified, it guarantees quality and compliance with environmental standards. Upgrade your connectivity solutions with this advanced connector.
