2007811-1

AMP2007811-1
Heilind Number:AMP2007811-1
Manufacturer:TE Connectivity
Manufacturer Number:2007811-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

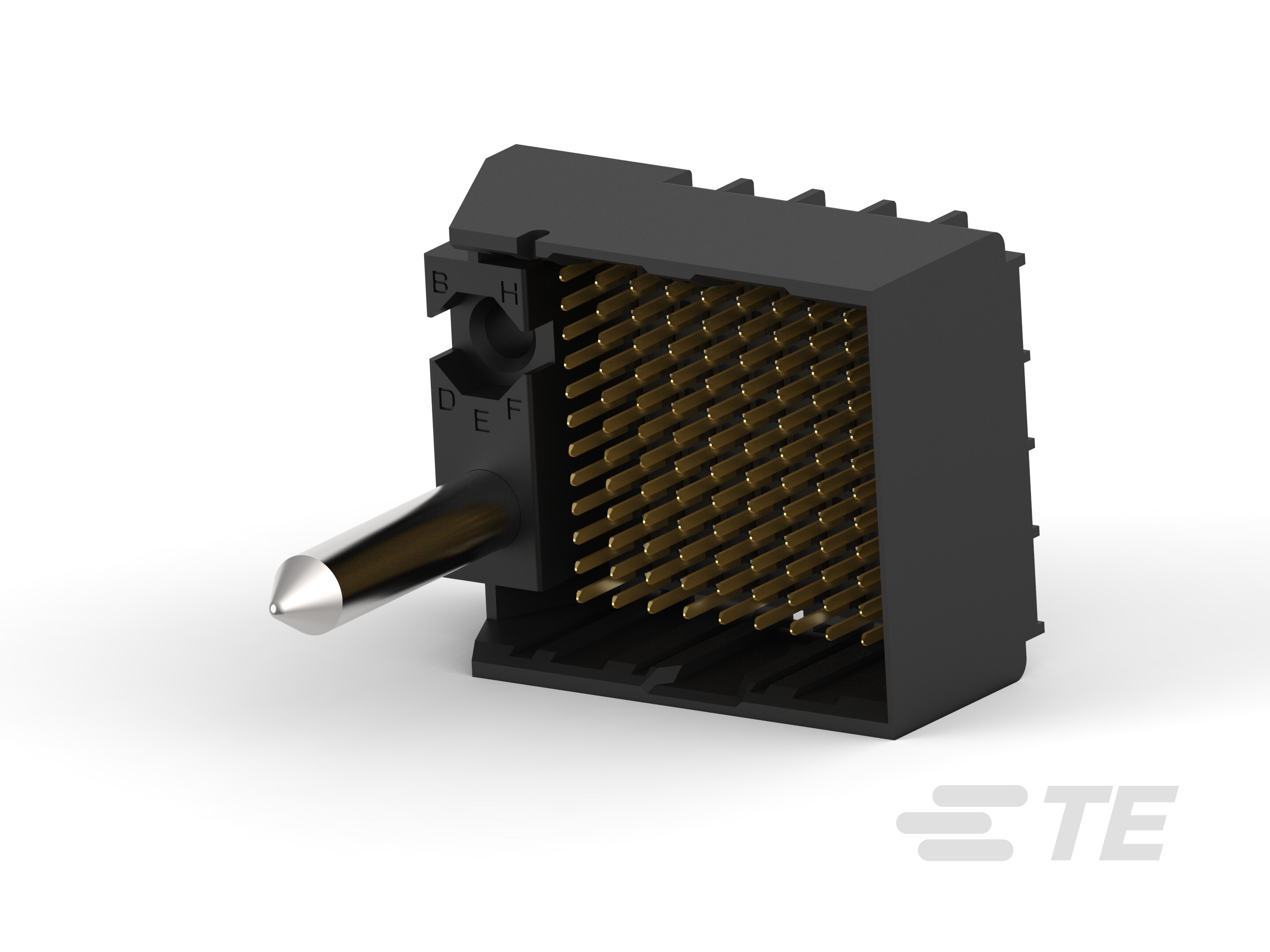

IMP100S,H,V4P10C,LG,REW39,4.5

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2007811-1
Series:IMPACT
Amperage:.75 A
Connector Type:Header
Gender:Plug
Housing Material:LCP - GF (Liquid Crystal Polymer)
Number of Contacts:120
Number of Rows:12
Mount Type:Board Mount
Termination Method:Through Hole - Press-Fit
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:185 °F, 85 °C
Body Orientation:Straight
Pitch:.075 in, 1.9 mm
Voltage:30 V AC, 30 V DC
Contact Type:Pin
Contact Length:.177 in, 26.9 mm, 4.5 mm
Row Spacing:.053 in, 1.35 mm
Impedance:100 Ω
PCB Hole Diameter:.015 in, .39 mm
Number of Pairs:40
Number of Positions:120
Data Rate:20 - 25 Gb/s
Housing Color:Black
Mount Orientation:Vertical
GPL:K74
Tail Length:.055 in, 1.4 mm
Packaging:Box & Tube, Tube
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:29.92 µin, .76 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Thickness (Recommended):1 mm
Connector Height:24.6 mm, .969 in
PCB Retention Type:Action/Compliant Tail & Screw
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L348
Number of Columns:10
Number of Signal Positions:80
Contact Design:Dual Beam
Contact Layout:Inline
Contact Transmits:Signal (Data)
Connector Length:1.059 in
Connector System:Board to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Stackable:No
Connector Product Type:Connector
Pairs Per Column:4
Contact Style:Press-Fit
Board to Board Configuration:Right Angle, Vertical
Contact Underplating Thickness:1.27 µm, 50 µin
PCB Contact Termination Area Plating Finish:Matte
Connector Width:20.8 mm, .819 in
Mating Retention:Without
Make First / Break Last:No
Stack Height:11.95 mm
Shroud Type:Fully
PCB Contact Termination Area Plating Thickness:30 - 60 µin, .76 - 1.52 µm
Guide Location:Left
Number of Ground Positions:40
End Wall Location:Right
Guide Hardware:With
Signal Arrangement:Differential
Standards Met:Yes UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2007811-1
SKU:AMP2007811-1

Detailed Description

Enhance your signal transmission with the IMP100S Header Connector from our IMPACT series. Featuring 120 gold-plated contacts designed for through-hole press-fit termination on a board mount, this connector ensures reliable connectivity. With a housing made of LCP - GF, it meets UL 94V-0 flammability standards. Operating at temperatures up to 185°F, it offers a pitch of 1.9mm and an impedance of 100Ω, perfect for high-speed data applications. Its straight orientation, black housing color, and vertical mount orientation make it versatile for various circuit setups. Each connector is RoHS compliant, guaranteeing environmentally friendly production practices. Elevate your PCB connectivity with this high-performance connector.
