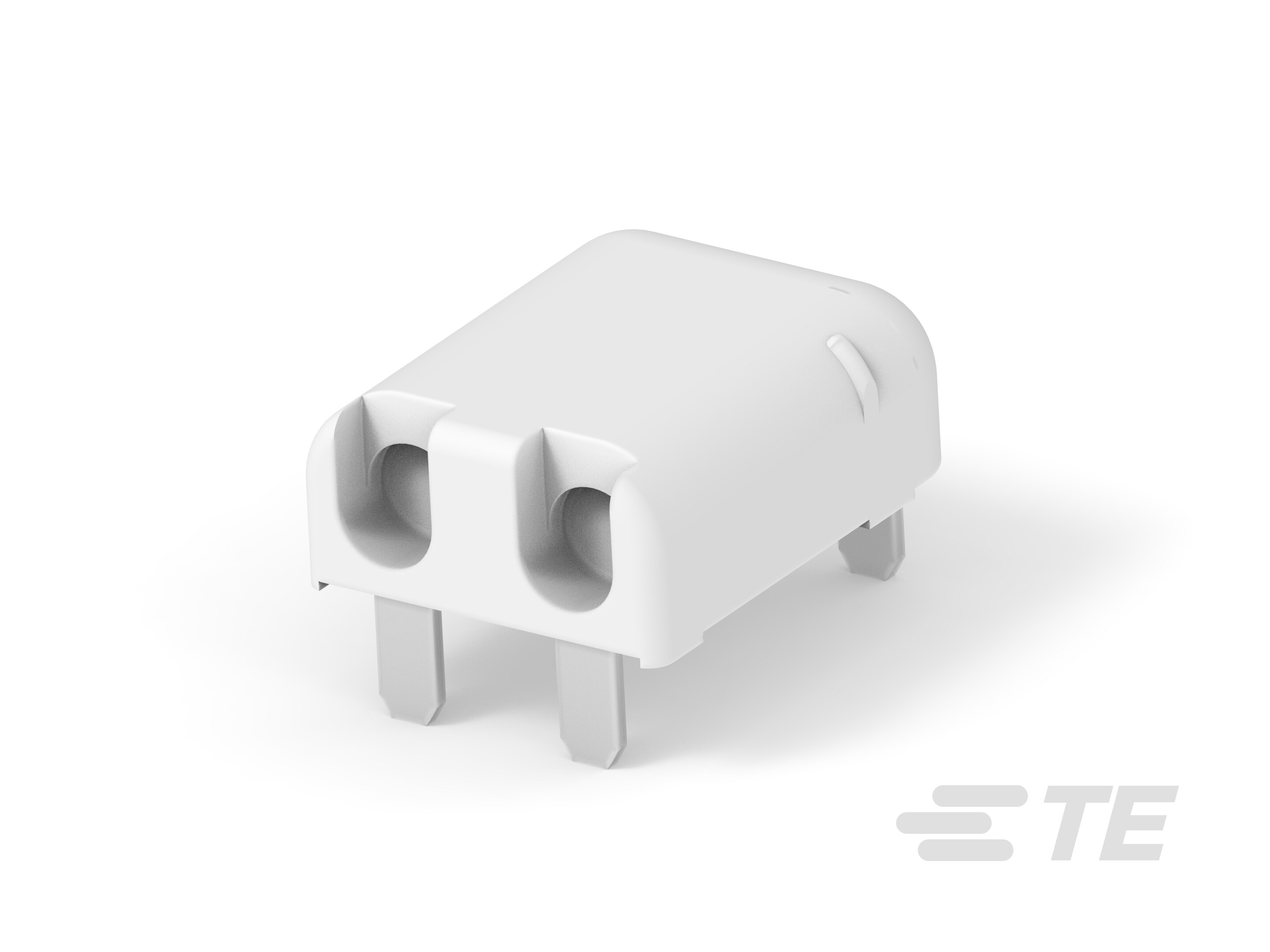

2008106-1

AMP2008106-1
Heilind Number:AMP2008106-1
Manufacturer:TE Connectivity
Manufacturer Number:2008106-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Connector Asy,2 Pos Through Ho

More >>

Specifications

AttributeValue
Product Category:
Lighting Connectors & Accessories Lighting Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2008106-1
Color:White
Amperage:4 A
Connector Type:Connector Assembly
Gender:Receptacle
Number of Rows:1
Termination Method:Through Hole - Solder
Contact Plating:Tin
Pitch:.157 in, 4 mm
Voltage:250 V AC, 250 V DC
Contact Type:Socket
Mount Angle:Right Angle
Diameter:.0826 ;2.1 mm
Cable Type:Discrete Wire
Contact Amperage:4 A
Number of Positions:2
Housing Color:White
GPL:K50
Packaging:SMT Pocket Tape
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Contact Mating Area Plating Thickness:118 µin, 3 µm
PCB Retention:Without
Contact Termination Plating Thickness:118.11 µin, 3 µm
PCB Thickness (Recommended):.062 in, 1.57 mm
Connector Height:.154 in
Sealable:No
Mating Alignment:Without
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board, Wire & Cable
Product Code:L012
Preloaded:Yes
Wire Size:18 - 22 AWG
Contact Layout:Inline
Connector Length:10.5 mm, .413 in
Connector System:Wire to Board
UL Agency Certification:E28476
Contact Termination Plating:Tin
Surface Mount Compatible:No
ECCN:EAR99
Contact Mating Area Plating Finish:Matte
Connector Width:.311 in, 7.9 mm
Mating Retention:Without
PCB Mount Alignment:Without
Accepts Wire Insulation Diameter:.083 in, 2.1 mm
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:Without
Contact Termination Area Plating Finish:Matte
Header Mating Orientation:Horizontal
Stamped and Formed:Yes
Toolless Wire Termination:Yes
UV Exposure Rated :No
Mated Length:10.5 mm, .413 in
Lighting Interconnect Level:Level 2
Standards Met:UL 94V-0 CSA C22.2 No. 182.3-M1987
Material Flammability Standard:UL 94V-0
Part Aliases:2008106-1
SKU:AMP2008106-1

Detailed Description

This White Connector Assembly features a 2-Position Receptacle with Through Hole - Solder termination method, ideal for discrete wire connections in industrial settings. UL 94V-0 and CSA certified, it ensures safety and reliability with a 4A amperage rating and 250V AC/DC voltage. The Right Angle mount angle and Inline contact layout offer convenient installation on printed circuit boards, accommodating wire sizes ranging from 18-22 AWG. With a compact size of 10.5mm in length and 7.9mm in width, it is suitable for Wire to Board applications. RoHS compliant and featuring matte plating finishes, this connector guarantees high performance in lighting systems, with toolless wire termination for easy assembly. Operating in a wide temperature range from -40 to 105°C, it meets stringent industry standards for durable and efficient connectivity. Explore our Lighting Connectors range for more options.
