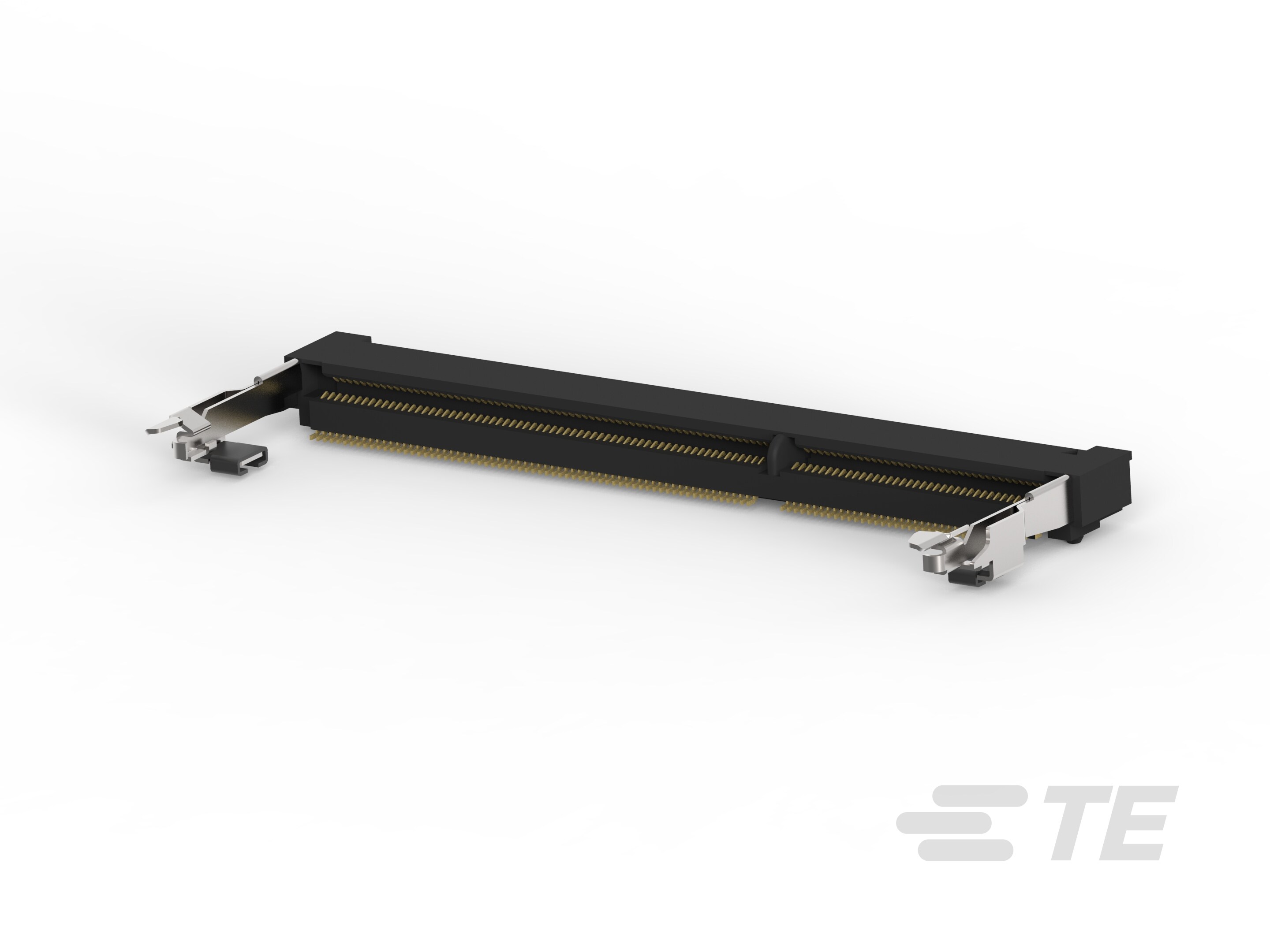

2013289-1

AMP2013289-1
Heilind Number:AMP2013289-1
Manufacturer:TE Connectivity
Manufacturer Number:2013289-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

SEMI-HARD TRAY DDR3 204P 5.2H STD

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2013289-1
Amperage:.5 A
Gender:Female
Housing Material:High Temperature Thermoplastic
Number of Contacts:204
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Maximum Operating Temperature:85 °C
Body Orientation:Right Angle
Pitch:.024 in, 6 mm
Voltage:1.5 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Standard
SDRAM Type:DDR3
Package Quantity:20
Key Type:SGRAM
Latch Material:Stainless Steel
Contact Amperage:.5 A
Number of Positions:204
Housing Color:Black
GPL:053
Profile:Standard
Packaging:Semi-Hard Tray Assembly
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold Flash
PCB Retention:With
PCB Contact Termination Area Plating:Gold
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:E374
Connector System:Cable-to-Board
ECCN:EAR99
Stack Height:.205 in, 5.2 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Latch Plating:Tin
Center Key:Offset Left
DRAM Type:DDR3
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2013289-1
SKU:AMP2013289-1

Detailed Description

Enhance your electronic assemblies with the SEMI-HARD TRAY DDR3 204P 5.2H STD, a female memory socket designed for optimal performance. This high-quality connector, meeting UL 94V-0 standards, features a durable housing made of high temperature thermoplastic. With 204 contacts arranged in two rows and a .6mm pitch, it ensures reliable connectivity for DDR3 SDRAM modules. Operating at up to 85°C, it offers secure board mounting with a right-angle body orientation. Gold flash plating on the contact mating area and solder peg retention guarantee efficient power transmission. Suitable for a variety of applications, this connector, packaged in a semi-hard tray assembly, is a versatile and essential component for your projects. Rest assured of its compliance with RoHS regulations, making it an environmentally friendly choice. Elevate your connectivity solutions with this essential connector system.
