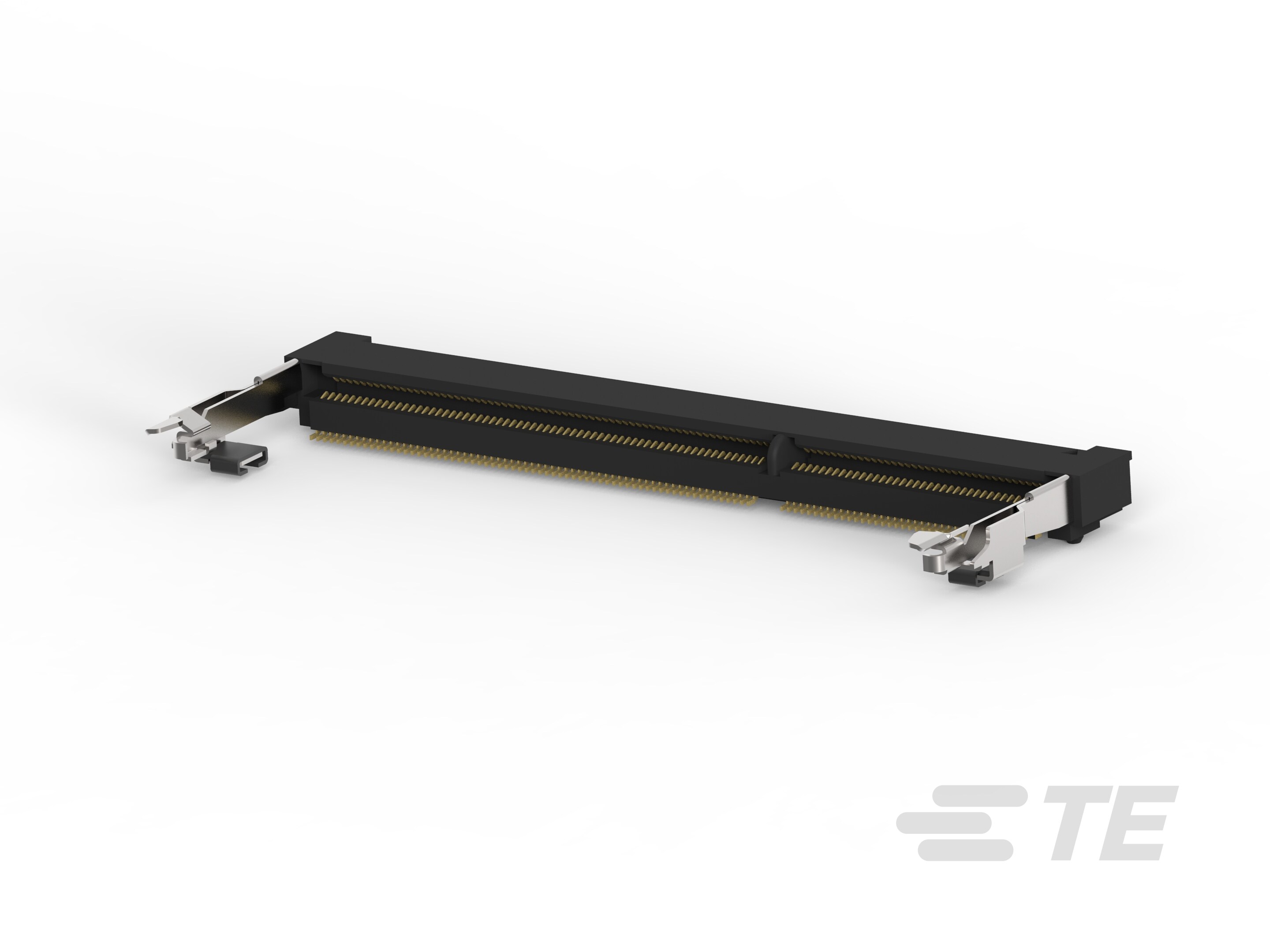

2013289-2

AMP2013289-2
Heilind Number:AMP2013289-2
Manufacturer:TE Connectivity
Manufacturer Number:2013289-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

SEMI-HARD TRAY DDR3 204P 5.2H STD Au0.25

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2013289-2
Amperage:.5 A
Gender:Female
Housing Material:High Temperature Thermoplastic
Number of Contacts:204
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Body Orientation:Right Angle
Pitch:.024 in, 6 mm
Voltage:1.5 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Standard
SDRAM Type:DDR3
Package Quantity:20
Key Type:SGRAM
Latch Material:Stainless Steel
Contact Amperage:.5 A
Number of Positions:204
Housing Color:Black
GPL:053
Profile:Standard
Packaging:Semi-Hard Tray Assembly
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:10 µin, .254 µm
PCB Retention:With
PCB Contact Termination Area Plating:Gold
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:E374
Connector System:Cable-to-Board
ECCN:EAR99
Stack Height:.205 in, 5.2 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Latch Plating:Tin
Center Key:Offset Left
DRAM Type:DDR3
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2013289-2
SKU:AMP2013289-2

Detailed Description

Enhance your memory module connections with this high-performance SEMI-HARD TRAY DDR3 204P 5.2H STD Au0.25 female socket. Designed for optimal functionality, it features UL 94V-0 standards compliance and a durable housing made of high temperature thermoplastic. With 204 contacts in 2 rows, this board mount socket ensures secure and efficient power transmission. The gold-plated copper alloy contacts offer reliable conductivity, while the right-angle body orientation and standard keying make for easy installation. Operating at temperatures up to 85°C, it's suitable for various applications. Perfect for SDRAM DDR3 modules, this assembly comes in a package quantity of 20 and is RoHS compliant, making it an eco-friendly and performance-driven choice for your connectivity needs.
