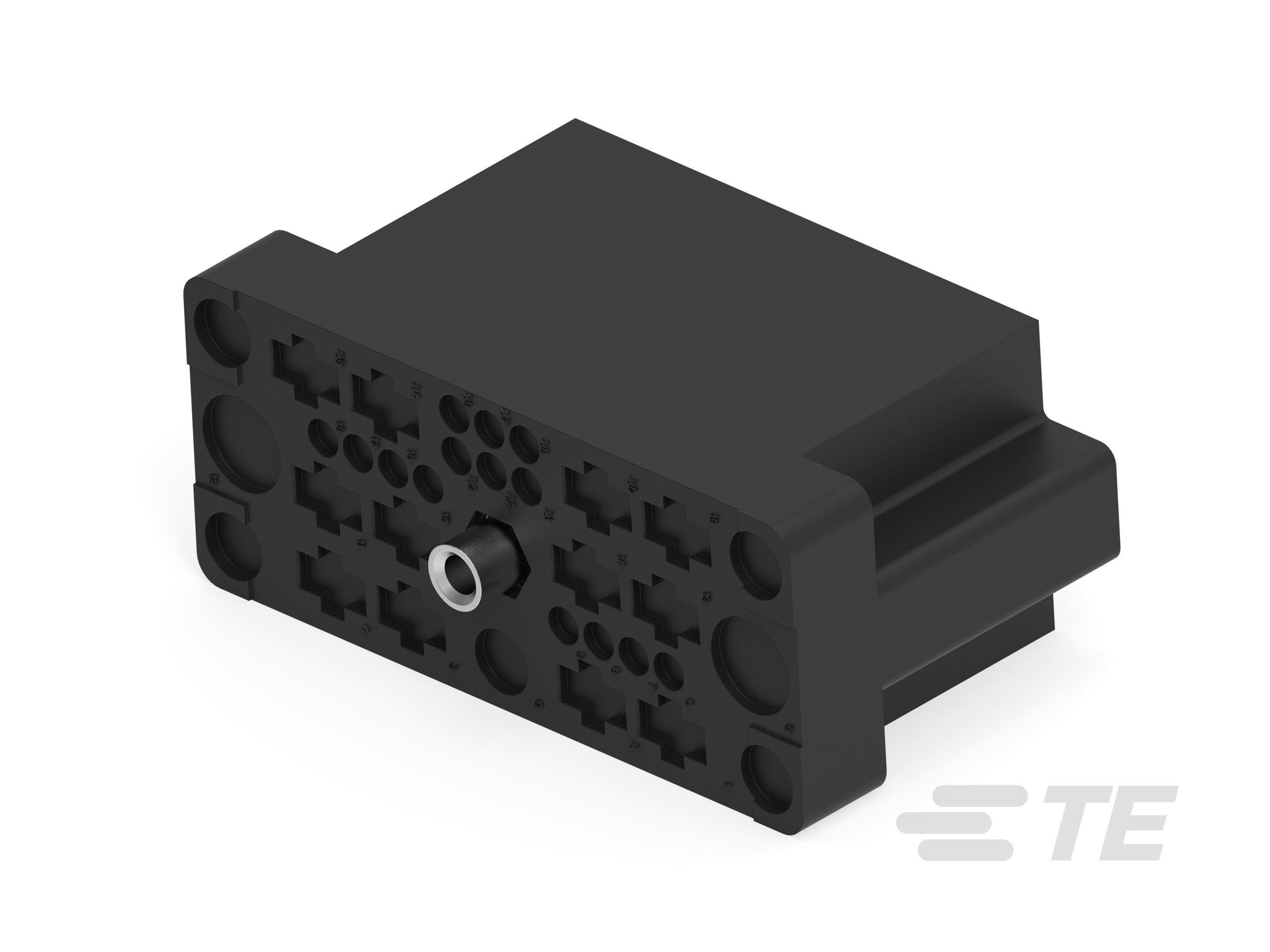

202478-2

AMP202478-2
Heilind Number:AMP202478-2
Manufacturer:TE Connectivity
Manufacturer Number:202478-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

29 RCPT BLOCK W/ CF

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 202478-2
Housing Material:Phenolic GF
Mount Type:Panel
Contact Type:Pin, Socket
Package Quantity:1
Number of Positions:29
Housing Color:Black
GPL:231
Packaging:Bag
Operating Temperature Range:-55 - 150 °C, -67 - 302 °F
Panel Mount:With
Connector Height:2.595 in, 65.91 mm
Panel Mount Type:Screw Mount
Sealable:No
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:5002
Connector Length:1.625 in, 41.28 mm
Connector System:Cable-to-Cable, Cable-to-Panel
Connector Product Type:Housing
ECCN:EAR99
Connector Width:1.1 in, 28.19 mm
Connector and Housing Type:Receptacle
Cicuit Configuration (Number of Pos/Type):14+12+2+1
Multiple Contact Types:With
Material Flammability Standard:UL 94V-0
Part Aliases:202478-2
SKU:AMP202478-2

Detailed Description

Enhance your industrial connectivity with our high-quality housing unit, meticulously crafted from UL 94V-0 rated Phenolic GF for exceptional durability. Designed for panel mounting with a secure screw mount feature, this receptacle is suitable for a wide range of applications, offering 29 positions for seamless cable-to-cable or cable-to-panel connections. With its sleek black housing and a wide operating temperature range of -55 to 150°C (-67 to 302°F), this connector ensures reliable performance in any environment. RoHS compliant and meticulously engineered for maximum safety and efficiency, it's the perfect solution for your power connectivity needs.
