202800-1

AMP202800-1
Heilind Number:AMP202800-1
Manufacturer:TE Connectivity
Manufacturer Number:202800-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

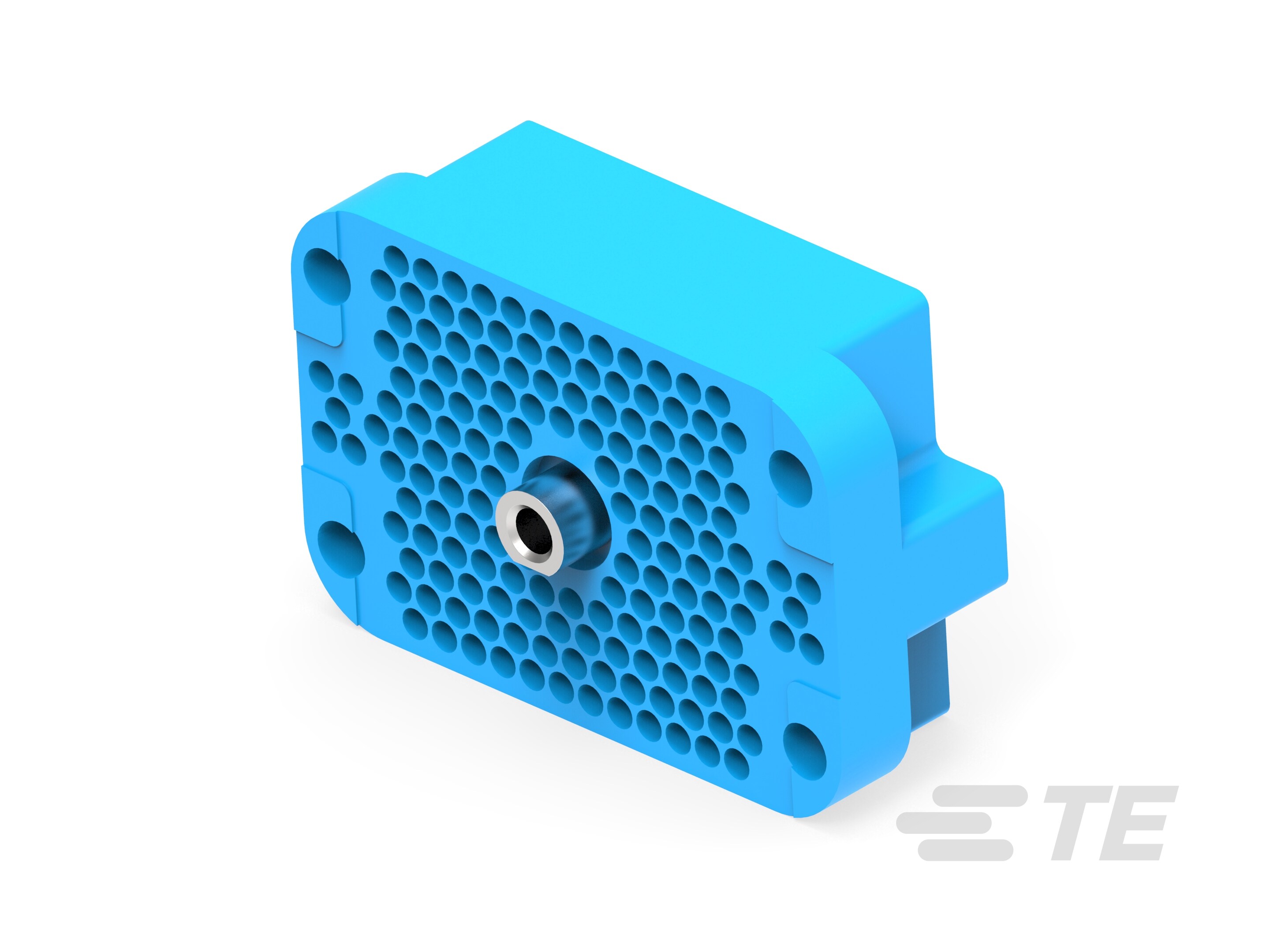

RECEPT ASSY,160 POSN,M SERIES

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 202800-1
Housing Material:Diallyl Phthalate
Mount Type:Panel
Contact Type:Socket
Package Quantity:1
Number of Positions:160
Housing Color:Blue
GPL:231
Packaging:Box
Operating Temperature Range:-65 - 125 °C, -85 - 257 °F
Panel Mount:With
Connector Height:2.75 in, 69.85 mm
Panel Mount Type:Screw Mount
Sealable:No
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:5002
Connector Length:1.115 in, 28.32 mm
Connector System:Cable-to-Cable, Cable-to-Panel
Connector Product Type:Housing
ECCN:EAR99
Connector Width:1.826 in, 46.38 mm
Connector and Housing Type:Receptacle
Material Flammability Standard:UL 94V-0
Part Aliases:202800-1
SKU:AMP202800-1

Detailed Description

Enhance your industrial connectivity with this robust 160-position M Series RECEPT ASSY. Featuring a durable Diallyl Phthalate housing in a striking blue hue, this assembly is designed for reliable performance in a wide range of operating conditions, from -65°C to 125°C (-85°F to 257°F). With a panel mount and screw mount feature, installation is straightforward, making it ideal for various applications. The UL 94V-0 material flammability standard ensures safety, while the connector's socket contact type allows for secure connections. Whether used for cable-to-cable or cable-to-panel setups, this housing offers versatility and efficiency. Compliant with RoHS regulations, it is also environmentally responsible. Elevate your power connector solutions with this high-quality receptacle assembly.
