2029056-3

Heilind Number:	AMP2029056-3
Manufacturer:	TE Connectivity
Manufacturer Number:	2029056-3
Datasheet:	Datasheet
ECAD Model:

Description:

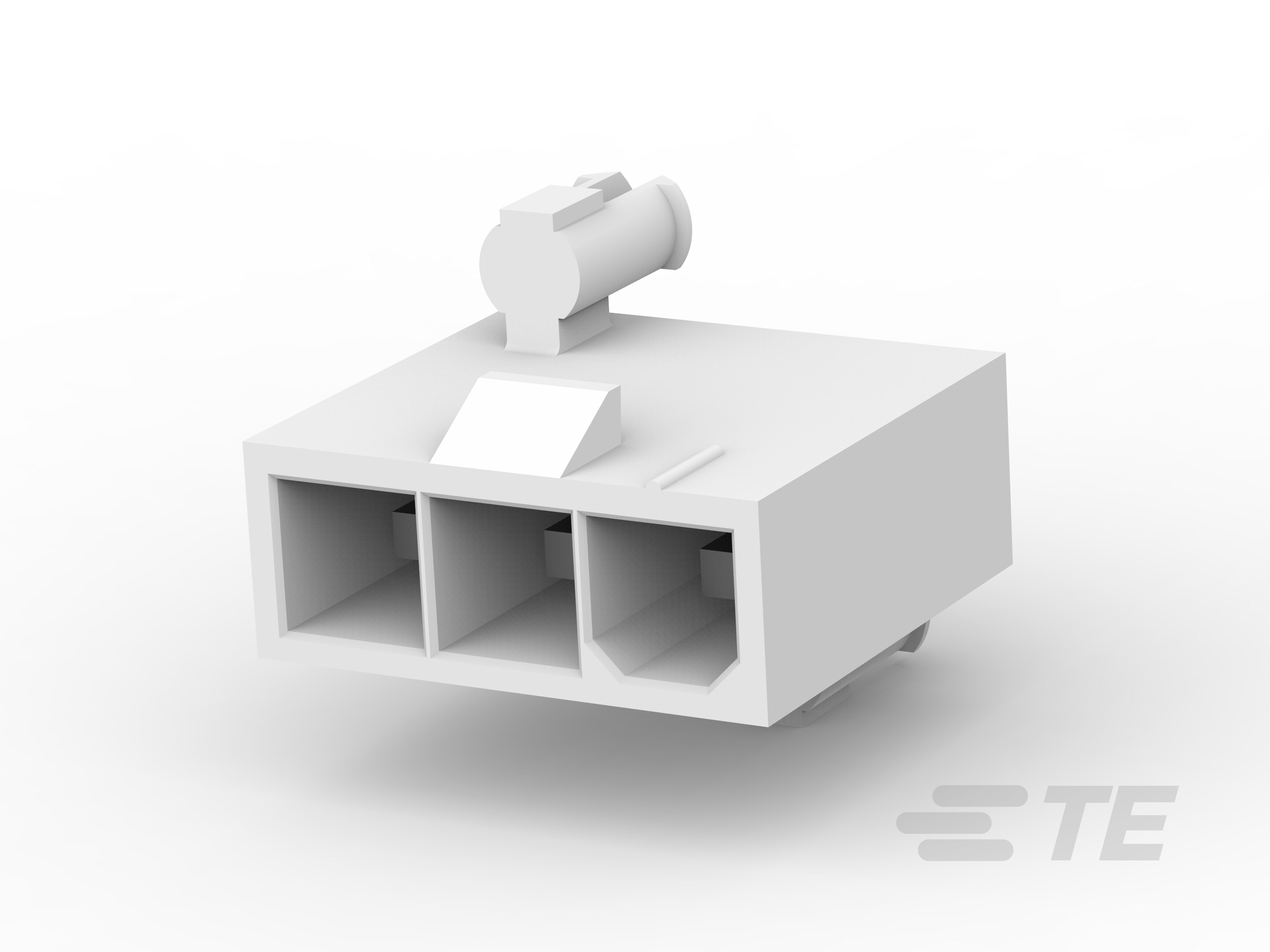

3P VAL-U-LOK SR HDR SN V0 W/DH

More >>

Specifications

Attribute	Value
Product Category:	Connectors Power Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2029056-3
Housing Material:	Nylon
Number of Rows:	1
Mount Type:	Board Mount
Termination Method:	Through Hole - Solder
Pitch:	.165 in, 4.2 mm
Voltage:	600 V AC
Contact Type:	Pin
Package Quantity:	1000
Contact Amperage:	9 A
Number of Positions:	3
Housing Color:	Natural
Mount Orientation:	Vertical
GPL:	G31
Mating Retention Type:	Latch
Packaging:	Box & Tray, Package
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	2.03 µm, 80 µin
PCB Retention:	With
PCB Thickness (Recommended):	.07 in, 1.78 mm
Connector Height:	12.8 mm, .504 in
PCB Retention Type:	Boardlock
Sealable:	No
Mating Alignment:	With
Mating Alignment Type:	Keyed
GPL Description:	Appliances
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K926
Number of Power Positions:	3
Contact Layout:	Inline
Connector Length:	13.8 mm, .543 in
Connector System:	Wire to Board
CSA Agency Certification:	208567
Contact Termination Plating:	Tin
Connector Product Type:	Header
ECCN:	EAR99
Connector Width:	.213 in, 5.4 mm
Mating Retention:	With
PCB Mount Alignment:	With
Termination Post Tail Length:	.138 in, 3.5 mm
Header Type:	Shrouded
Max Insulation Diameter:	2.39 in, 2.39 mm
Accepts Wire Insulation Diameter:	.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:	Without
Glow Wire Rating:	Standard Part - Not Glow Wire
Circuit Identification Feature:	With
VDE Tested:	No
Connector and Housing Type:	Plug
Standards Met:	UL CSA
Material Flammability Standard:	UL 94V-0
Part Aliases:	2029056-3
SKU:	AMP2029056-3

Detailed Description

Meet industry standards with this UL and CSA certified power connector. Designed for reliable performance, this connector features a durable nylon housing in a natural color, with a vertical mount orientation for easy installation. With a pitch of 4.2 mm and through-hole solder termination method, it provides secure connectivity for power applications. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it ensures stability in various environments. This connector, with a contact layout of inline and 3 power positions, is ideal for wire-to-board connections in appliances and other electronic devices. RoHS compliant and boasting a 600V AC voltage rating, it offers peace of mind in terms of safety and environmental responsibility. Each package includes 1000 units, making it suitable for bulk projects. Whether in a commercial or industrial setting, this power connector is a dependable choice for your connectivity needs.
