2042162-1

Heilind Number:	AMP2042162-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2042162-1
Datasheet:	Product Specification
ECAD Model:

Description:

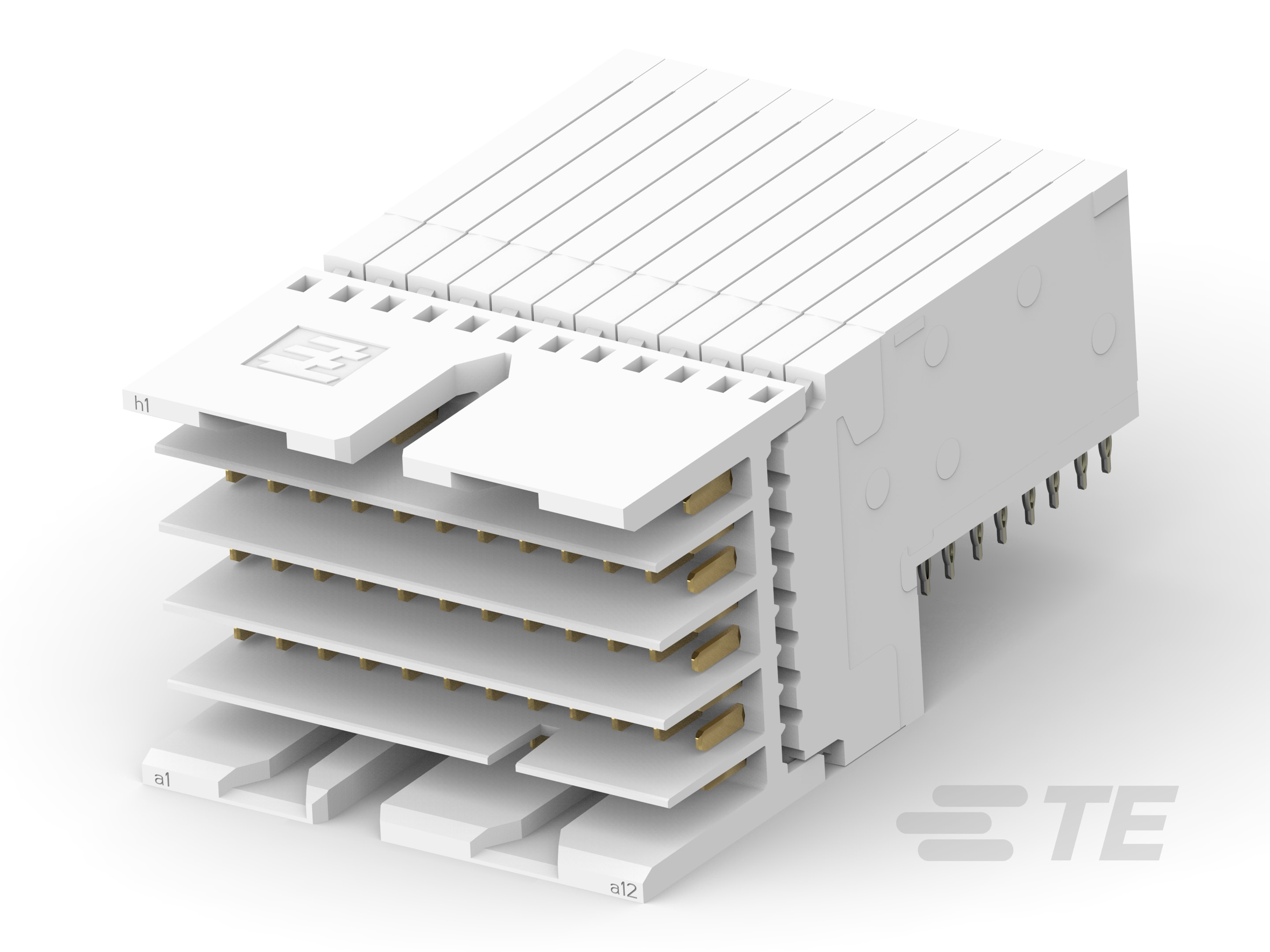

Right Angle Male Connector

More >>

Specifications

Attribute	Value
Product Category:	Backplane Connectors & Accessories Backplane Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2042162-1
Series:	Z-PACK Slim UHD
Amperage:	.5 A
Connector Type:	Header
Gender:	Plug
Housing Material:	LCP (Liquid Crystal Polymer)
Number of Rows:	8
Termination Method:	Through Hole - Press-Fit
Contact Material:	Copper Alloy
Body Orientation:	Right Angle
Pitch:	.057 in, 1.45 mm
Voltage:	30 V AC
Contact Type:	Pin
Contact Length:	17.3 mm
Row Spacing:	.05 in, 1.25 mm
Impedance:	30 Ω
PCB Hole Diameter:	.016 in, .4 mm
Number of Pairs:	96
Number of Positions:	192
Data Rate:	20 Gb/s
Housing Color:	Natural
Mount Orientation:	Right Angle
Termination Type:	Without
Module Type:	Center
GPL:	K76
Shield Material:	Copper Alloy
Tail Length:	1.6 mm, .493 in
Packaging:	Tray
Operating Temperature Range:	-55 - 105 °C, -67 - 221 °F
Circuit Application:	Signal
PCB Retention:	With
Contact Underplating Material:	Nickel
PCB Thickness (Recommended):	1.2 mm
Connector Height:	.374 in, 9.5 mm
PCB Retention Type:	Action/Compliant Tail
Sealable:	No
Mating Alignment:	With
Mating Alignment Type:	Polarization
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	L122
Number of Columns:	12
Number of Signal Positions:	192
Preloaded:	Yes
Contact Design:	Dual Beam
Contact Transmits:	Signal (Data)
Connector Length:	.681 in
Connector System:	Board to Board
Contact Termination Plating:	Tin
Stackable:	Yes
Connector Product Type:	Connector
Pairs Per Column:	8
Contact Style:	Press-Fit
Connector Width:	12.51 mm, .493 in
Mating Retention:	Without
PCB Mount Alignment:	With
PCB Mount Alignment Type:	Action/Compliant Tail
Make First / Break Last:	No
Stack Height:	1.6 mm
Shroud Type:	No
Post Type:	Through Hole - Press-Fit
PCB Contact Termination Area Plating Thickness:	20 - 100 µin, .5 - 2.5 µm
End Wall Location:	None
Guide Hardware:	Without
Durability Rating (Cycles):	200 Cycles
Standards Met:	UL 94V-0
Material Flammability Standard:	UL 94V-0
Part Aliases:	2042162-1
SKU:	AMP2042162-1

Detailed Description

Enhance your connectivity with this Right Angle Male Connector from the Z-PACK Slim UHD series. Engineered for optimal performance, it boasts UL 94V-0 standards compliance, ensuring reliability and safety. With a contact design featuring Dual Beam technology, this connector facilitates seamless signal transmission at a high data rate of 20 Gb/s. Its robust construction, including a housing made of LCP (Liquid Crystal Polymer) and contact material of Copper Alloy with Nickel plating, guarantees durability in demanding environments. Suitable for board-to-board connections in a variety of applications, this connector is a versatile and essential component for your electronic setups. Complete with preloaded contacts and stackable design, it offers convenience and flexibility in assembly. RoHS compliant and rated for 200 cycles of durability, it meets stringent quality standards for your peace of mind. Elevate your connectivity solutions with this high-performance connector.
