| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2108517-2 |
| Impedance: | 50 Ω |
| Protocol: | 802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee |
| Mounting Style: | Surface Mount |
| VSWR: | 2.5:1 |
| Antenna Type: | Stamped Metal |
| Application: | Bluetooth, Wi-Fi |
| Band Type: | Dual Band |
| Center Frequency: | 2450 MHz, 5512.5 MHz |
| Directionality: | Omnidirectional |
| Frequency Range: | 2400 - 2500 MHz, 5150 - 5875 MHz |
| Gain: | 3 dB |
| SKU: | AMP2108517-2 |
2108517-2
| Heilind Number: | AMP2108517-2 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2108517-2 |
| Datasheet: | 3D Model (STP) |
| ECAD Model: | |
Description:

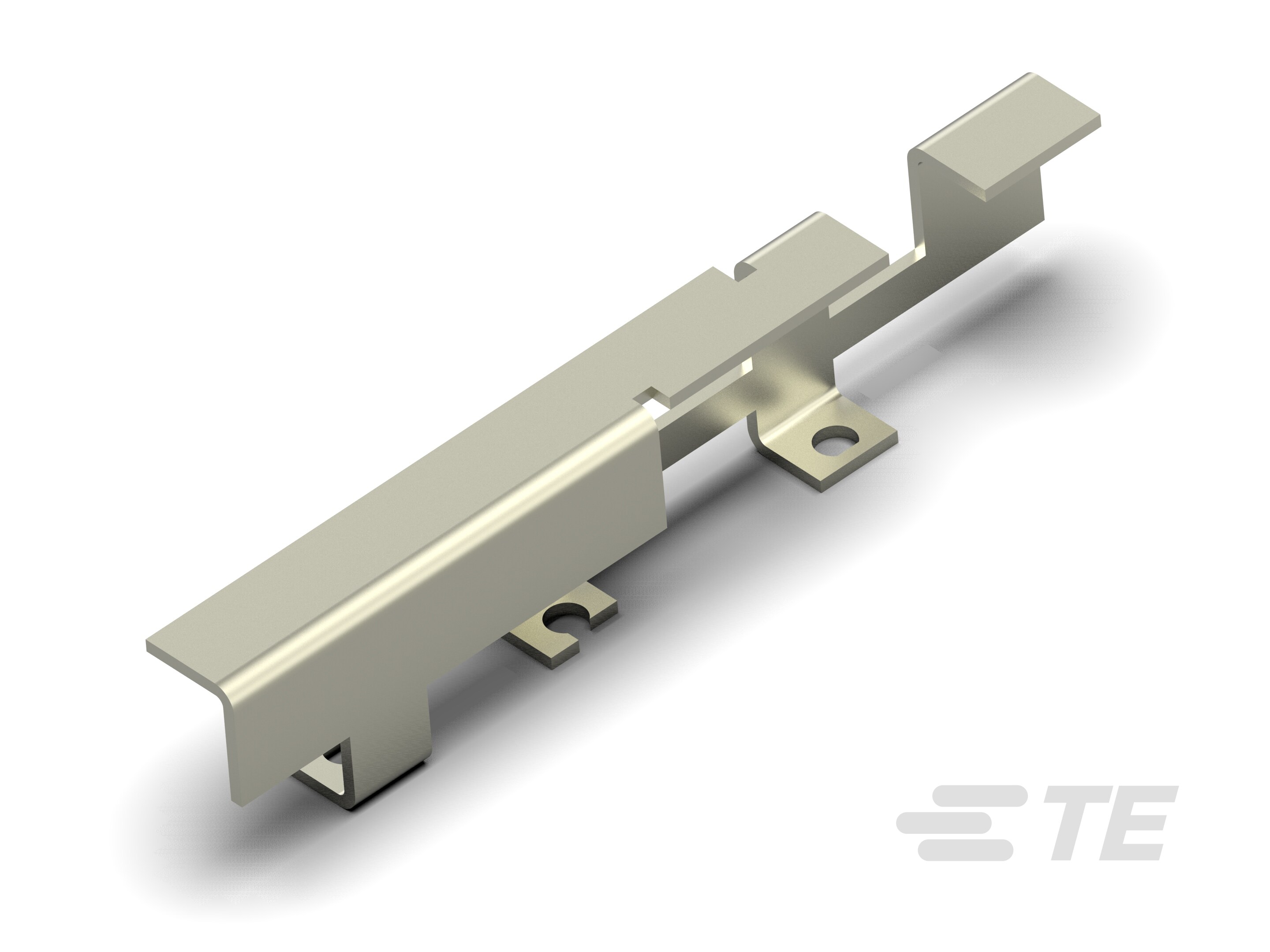

Stamped Metal Antenna, Dual Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 3 < 6 dBi
More >>Specifications
Detailed Description
Enhance your connectivity with this high-performance Stamped Metal Antenna, designed for seamless dual-band Bluetooth and Wi-Fi applications. Featuring internal/embedded mounting for a sleek finish, this omnidirectional antenna offers reliable signal transmission with a gain of 3 to 6 dBi. RoHS compliant and suitable for surface mounting, it operates efficiently within the frequency range of 2400-2500 MHz and 5150-5875 MHz. Perfect for ZigBee, Bluetooth, and various 802.11 protocols, this antenna ensures optimal performance for your wireless communication needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/06/2018 | P-18-016039 - Packing method. Changed packing structure for prevent a fool proofing. Refer to attached file (file name: PN2108517-2 Changed packing structure_20180704.pdf) 2. First Date To Ship (Changed Parts Only): From 2018-05-17(existing) to 2018-07-04(modified) | Download | |||
| 07/05/2018 | E-18-010448 - Product Improvement. Modified packing structure for prevent fool proofing. PN2108517-2 drawing updated . | Download | |||
| 05/17/2018 | P-18-015834 - Manufacturing location change. For the convention for new supplier due to the closure of existing supplier. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
