2108923-2

AMP2108923_2
Heilind Number:AMP2108923-2
Manufacturer:TE Connectivity
Manufacturer Number:2108923-2
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

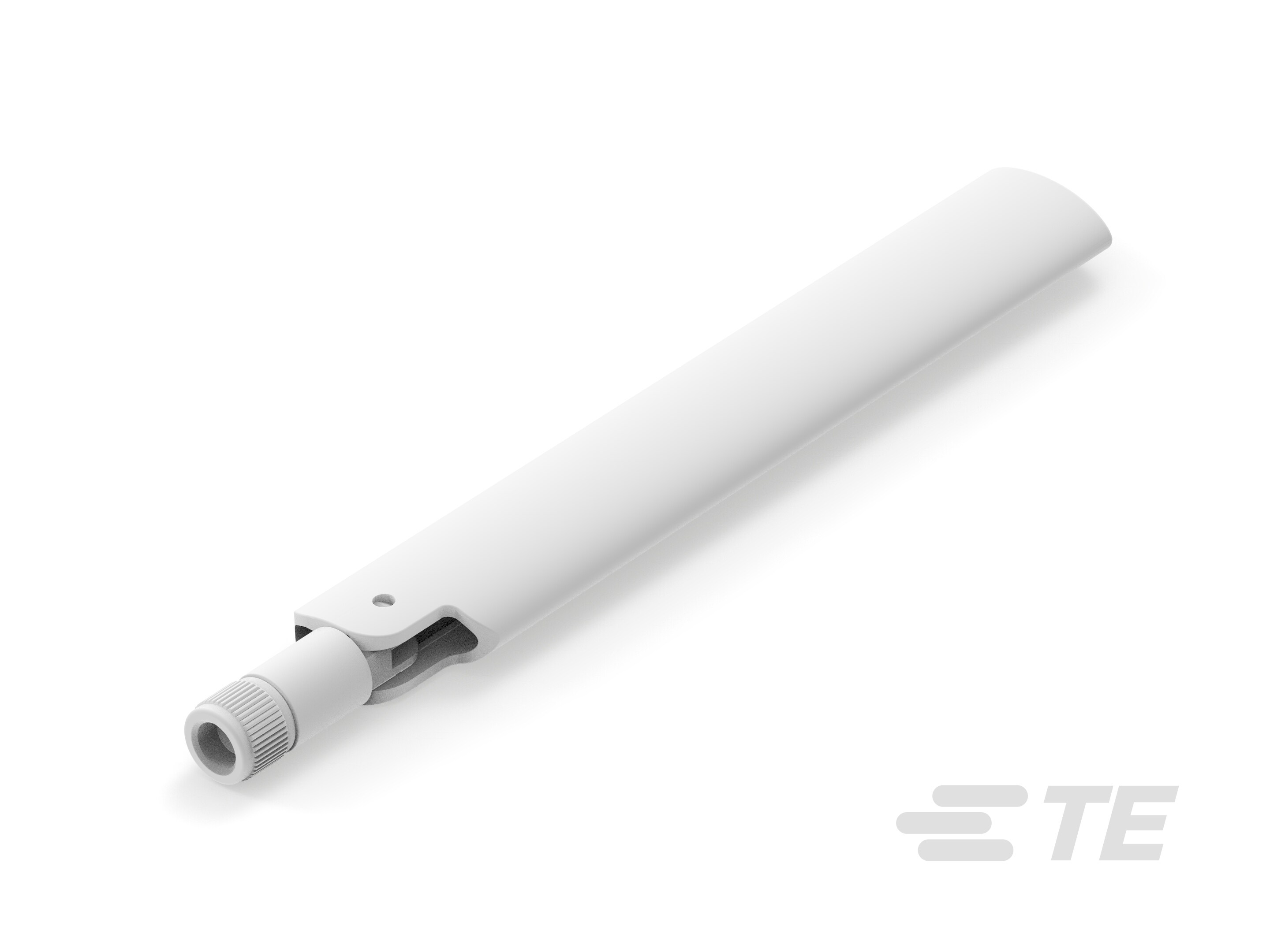

Terminal/Duck Antenna, Triple Band, Wi-Fi, External Mount, Connector, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108923-2
Gain:3.2 dB
VSWR:1.9:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Triple Band
Impedance:50 Ω
Antenna Type:Duck, Enclosure
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Connector
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz
Center Frequency:2450 MHz, 5512.5 MHz, 6525 MHz
Antenna Termination Type:SMA
Application:Bluetooth, Wi-Fi
SKU:AMP2108923-2

Detailed Description

Stay connected with our ROHS-compliant Terminal/Duck Antenna, designed for seamless integration with ZigBee, Bluetooth, and various WiFi standards including 802.11a/ac/ad/b/g/n. This triple-band antenna operates at 2400-2500MHz, 5150-5875MHz, and 5925-7125MHz frequencies, ensuring optimal performance across different wireless protocols. With a gain of 3.2dB and a VSWR of 1.9:1, it guarantees reliable signal reception. The omnidirectional polarization and linear directionality make it ideal for external mounting, offering a wide coverage area. Featuring an SMA connector and 50Ω impedance, it's suitable for both Bluetooth and WiFi applications. Upgrade your connectivity with this high-performance antenna.
