2129320-3

Heilind Number:	AMP2129320-3
Manufacturer:	TE Connectivity
Manufacturer Number:	2129320-3
Datasheet:	Material Declaration
ECAD Model:

Description:

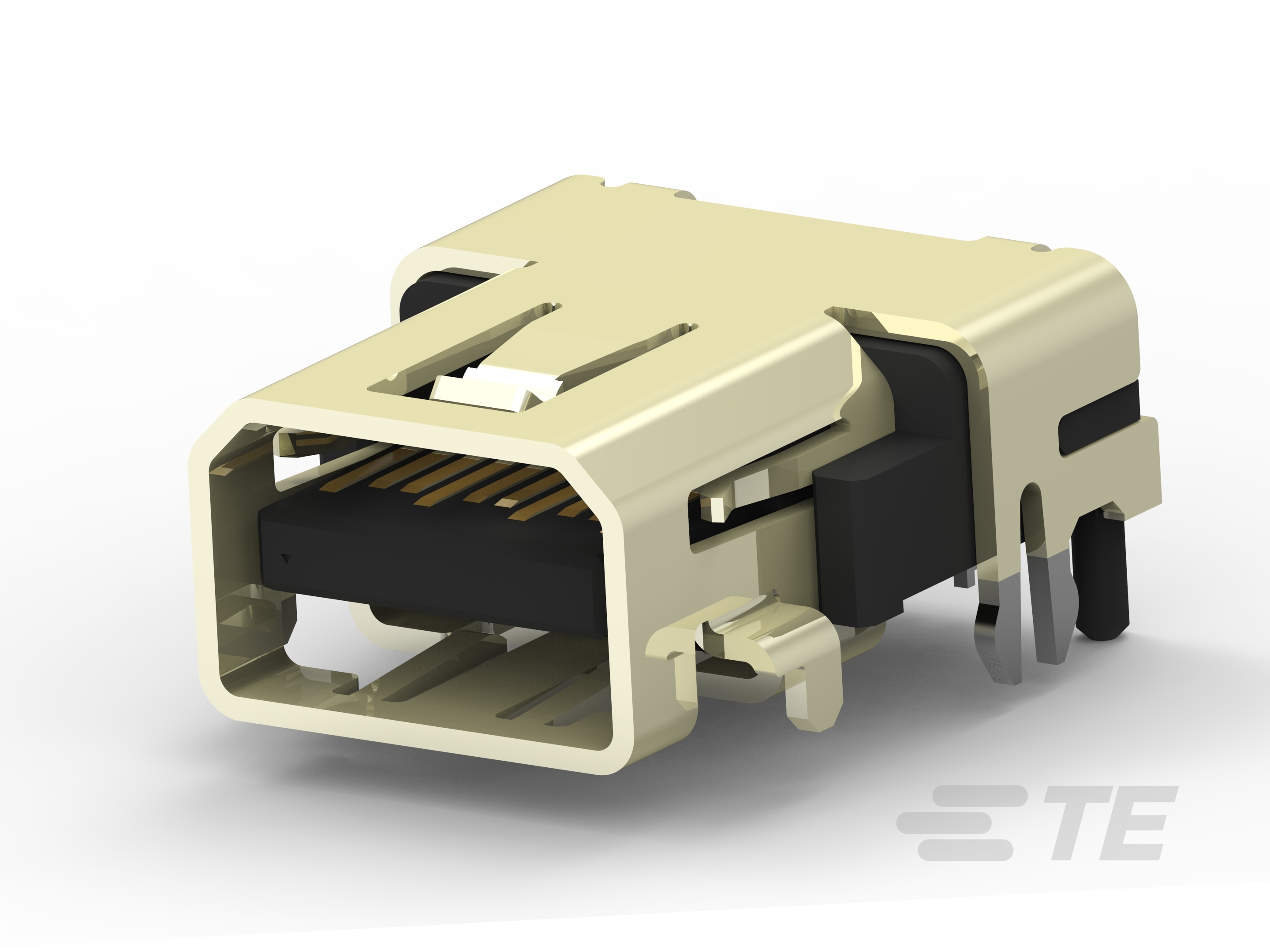

Mini Displayport Reverse Offset

More >>

Specifications

Attribute	Value
Product Category:	Audio, Video & Broadcast Connectors & Accessories Audio, Video & Broadcast Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2129320-3
Color:	Black
Series:	Mini DisplayPort
Connector Type:	Connector Assembly
Gender:	Receptacle
Housing Material:	High Temperature Thermoplastic
Mount Type:	Board Mount, Through Hole
Termination Method:	Boardlock
Contact Material:	Copper Alloy
Contact Plating:	Gold
Pitch:	.02 in, 6 mm
Orientation:	Right Angle
Mount Location:	Top
Number of Positions:	20
Housing Color:	Black
Shell Material:	Stainless Steel
Tail Length:	.055 in, 1.4 mm
Flange:	Without
Pick and Place:	Without Pick and Place Cover
Circuit Application:	Signal
Supplier Product Group:	Audio, Video and Broadcast Connectors
Connector System:	Cable to Board
Material Flammability Standard:	UL 94V-0
SKU:	AMP2129320-3

Detailed Description

Enhance your connectivity with the Mini DisplayPort Reverse Offset connector. Designed for seamless integration, this black connector boasts a high temperature thermoplastic housing and features a versatile through hole, board mount installation. Its gold-plated copper alloy contacts ensure optimal signal transmission, while the UL 94V-0 material flammability standard guarantees safety. With 20 positions and a .6mm pitch, it's perfect for data and device applications. The right-angle orientation and top mount location offer flexibility in setup, and the stainless steel shell adds durability. Packaged on a reel, it's convenient for large-scale projects. RoHS compliant for environmental responsibility, this connector is a reliable choice for audio, video, and broadcast setups.
