2134611-1

AMP2134611-1
Heilind Number:AMP2134611-1
Manufacturer:TE Connectivity
Manufacturer Number:2134611-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

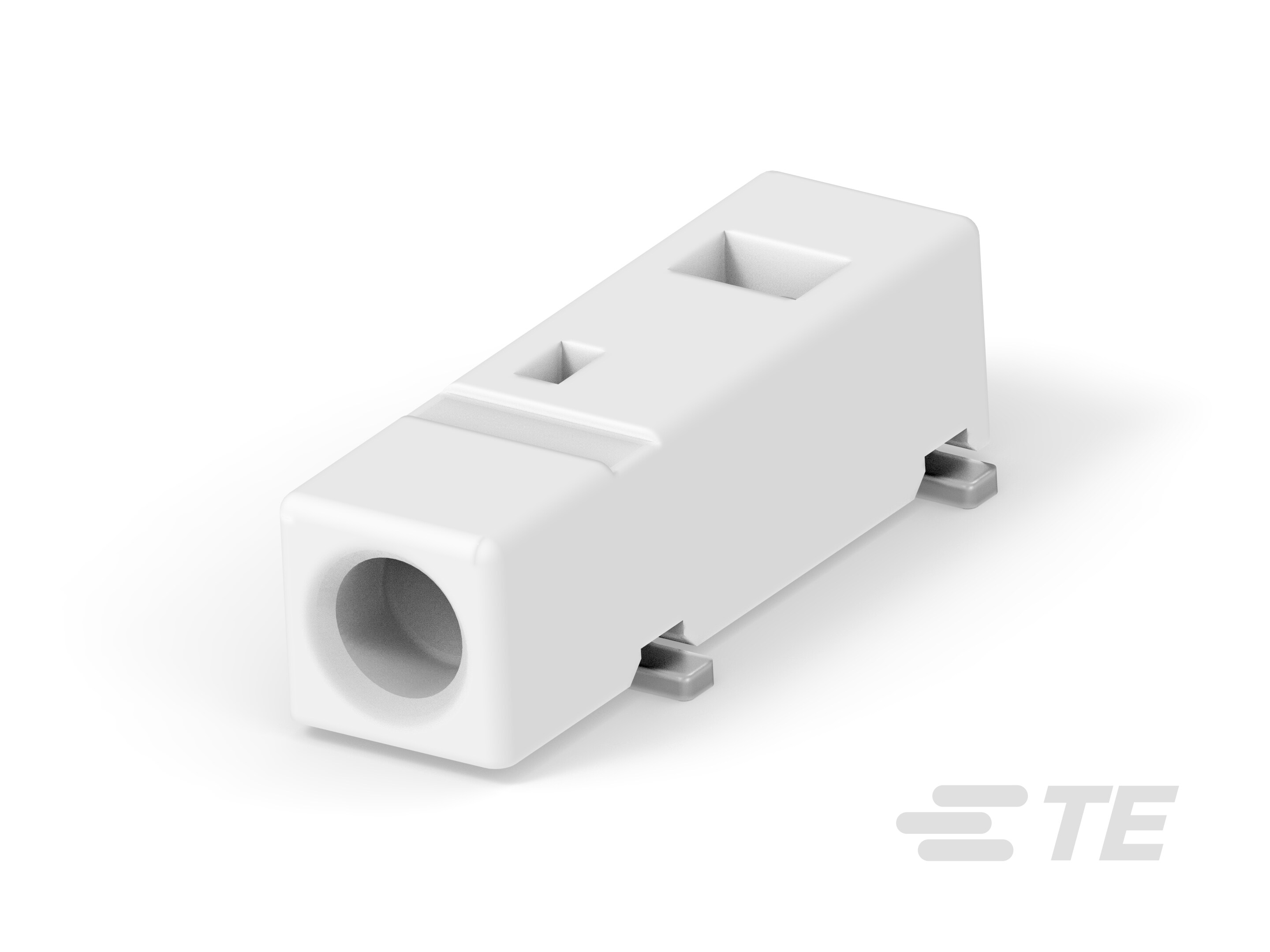

Micro poke in assembly

More >>

Specifications

AttributeValue
Product Category:
Lighting Connectors & Accessories Lighting Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2134611-1
Color:Natural
Connector Type:Connector Assembly
Gender:Receptacle
Number of Rows:1
Termination Method:Surface Mount
Contact Plating:Tin
Voltage:250 V AC, 250 V DC
Contact Type:Socket
Mount Angle:Right Angle
Cable Type:Discrete Wire
Contact Amperage:3 A, 4 A
Number of Positions:1
Housing Color:Natural
GPL:K50
Packaging:SMT Pocket Tape
Operating Temperature Range:-13 - 266 °F, -25 - 130 °C
Contact Mating Area Plating Thickness:118 µin, 3 µm
PCB Retention:Without
Contact Termination Plating Thickness:118.11 µin, 3 µm
Connector Height:.097 in
Sealable:No
Mating Alignment:Without
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board, Wire & Cable
Product Code:L012
Preloaded:Yes
Wire Size:24 - 26 AWG
Contact Layout:Inline
Connector Length:.323 in, 8.2 mm
Connector System:Wire to Board
Contact Termination Plating:Tin
Surface Mount Compatible:Yes
ECCN:EAR99
Connector Width:.096 in, 2.45 mm
Mating Retention:Without
PCB Mount Alignment:Without
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:Without
Header Mating Orientation:Horizontal
Stamped and Formed:Yes
Toolless Wire Termination:Yes
UV Exposure Rated :No
Lighting Interconnect Level:Level 2
Standards Met:UL 94V-0 UL UL E28476
Material Flammability Standard:UL 94V-0
Part Aliases:2134611-1
SKU:AMP2134611-1

Detailed Description

Experience seamless connectivity with our Micro Poke-In Assembly. This innovative connector, designed for surface mount termination, guarantees reliable performance in a variety of applications. With a contact plating of tin and UL 94V-0 flammability standard compliance, rest assured of its quality and safety. Featuring a right-angle mount angle and socket contact type, it offers versatility in use. Suitable for 24-26 AWG wire sizes, this connector is ideal for discrete wire cable types. Its compact design, with a connector length of .323 inches and width of .096 inches, ensures space-efficient installation. Operating within a wide temperature range of -25 to 130°C, it is perfect for industrial environments. With toolless wire termination and RoHS compliance, it's not just efficient but also environmentally friendly. Elevate your connectivity solutions with this high-performance Micro Poke-In Assembly.
