| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 213809-7 |
| Series: | AMP-METRIMATE |
| Housing Material: | Polyester - GF |
| Termination Method: | Solder, Through Hole - Solder |
| Contact Type: | Socket, Tab |
| Strain Relief: | No Strain Relief |
| Package Quantity: | 32 |
| Number of Positions: | 34 |
| Housing Color: | Black |
| Mount Orientation: | Vertical |
| GPL: | 231 |
| Mating Retention Type: | Jackscrews - Fixed |
| Packaging: | Carton |
| Operating Temperature Range: | -55 - 130 °C, -67 - 266 °F |
| Circuit Application: | Signal |
| Panel Mount: | Without |
| Shielded: | No |
| Contact Termination Plating Thickness: | 100 µin, 2.540 µm |
| Connector Height: | 23.24 mm, .915 in |
| Sealable: | No |
| Mating Alignment: | With |
| Mating Alignment Type: | Guide Hole |
| GPL Description: | Industrial |
| Connector and Contact Terminate To: | Printed Circuit Board |
| Product Code: | 4883 |
| Connector Length: | 2 in, 50.8 mm |
| Screw Hole Thread Size: | 6-32 UNC-2A, 6-32 UNC-2B |
| Connector System: | Cable-to-Board |
| Contact Termination Plating: | Tin |
| Connector Product Type: | Connector Assembly |
| ECCN: | EAR99 |
| Connector Width: | 19.05 mm, .75 in |
| Mating Retention: | With |
| Termination Post Tail Length: | .055 in, 1.4 mm |
| Contact Retention: | With |
| Contact Retention Type: | Locking Spring |
| Connector and Housing Type: | Receptacle |
| Material Flammability Standard: | UL 94V-0 |
| Part Aliases: | 213809-7 |
| SKU: | AMP213809-7 |
213809-7
Specifications
Detailed Description

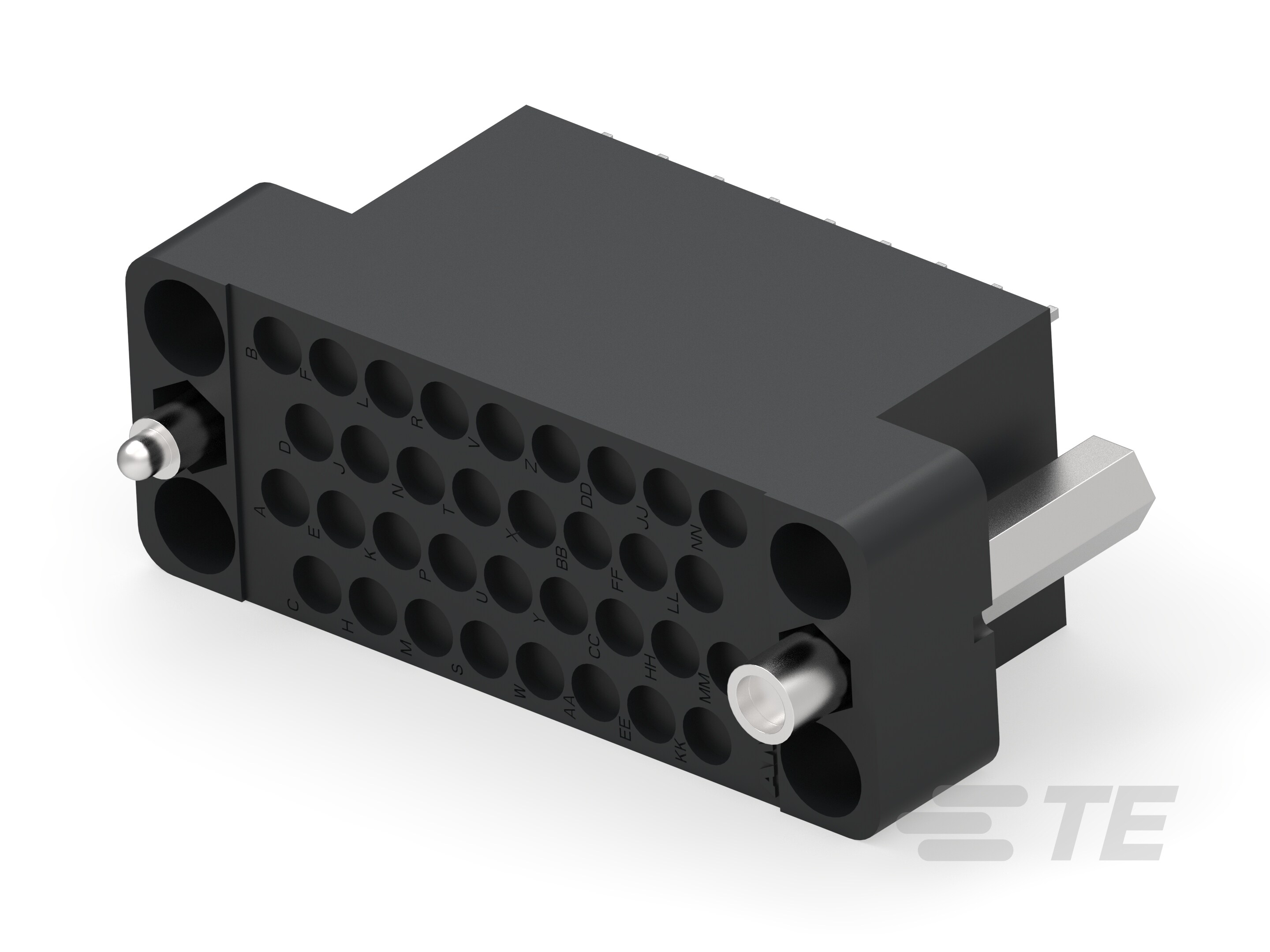

Easily connect V.35 devices with our AMP-METRIMATE series vertical socket assembly. Featuring 34 gold-plated contacts for reliable signal transmission, this connector is housed in durable black polyester with UL 94V-0 flammability rating. Solder termination and through-hole mounting ensure secure attachment to your PCB. With a mating retention system using jackscrews, it offers added stability. Operating in a wide temperature range from -55 to 130°C (-67 to 266°F), it's suitable for industrial applications. The compact design, measuring 50.8mm in length and 19.05mm in width, makes it ideal for space-constrained setups. RoHS compliant and with a locking spring contact retention feature, this connector assembly guarantees both performance and environmental responsibility. Packaged in a carton of 32, it's ready for your power connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
