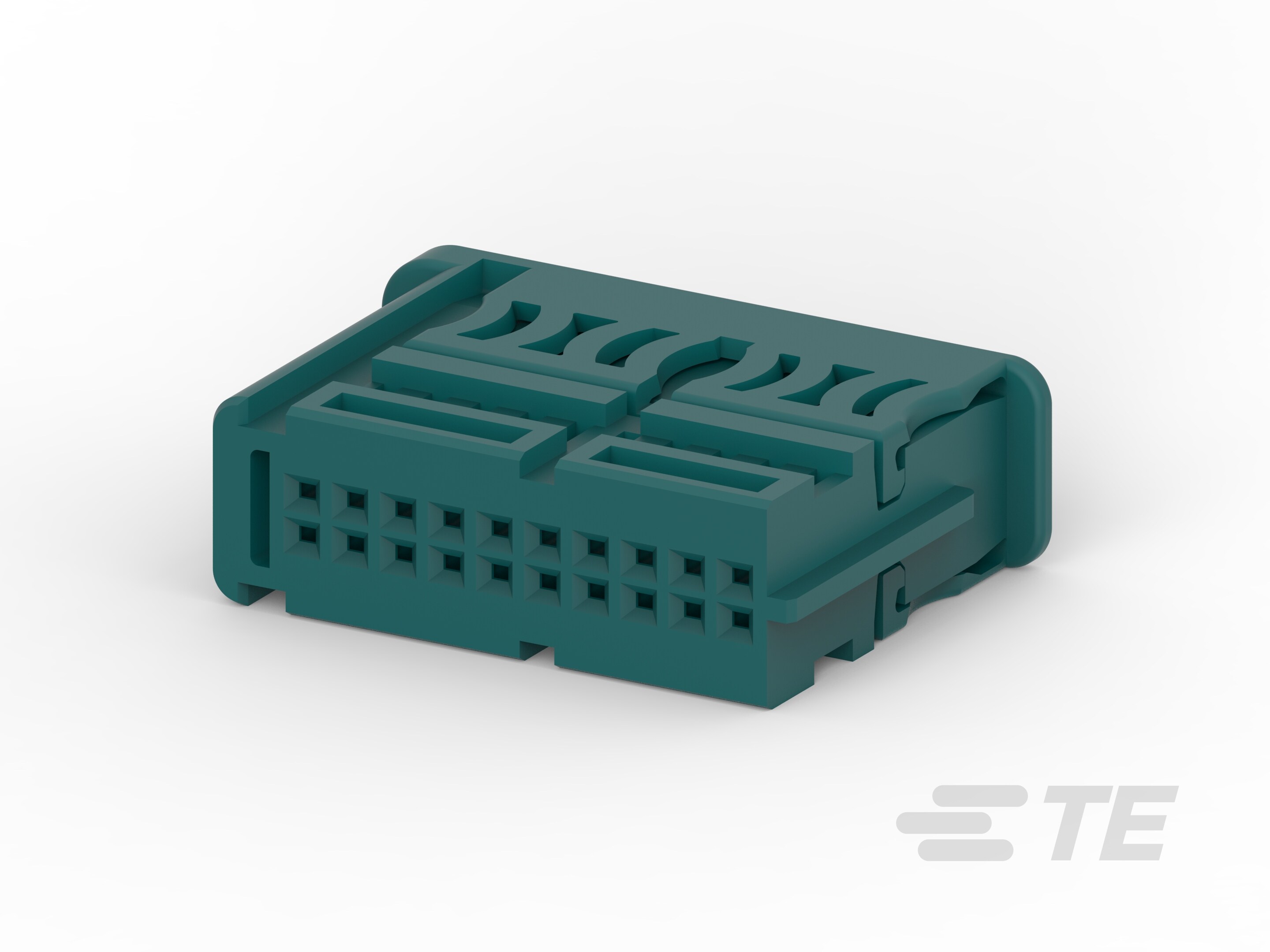

2141404-9

AMP2141404-9
Heilind Number:AMP2141404-9
Manufacturer:TE Connectivity
Manufacturer Number:2141404-9
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

20POS,NANOMQS,REC HSG,CODZ

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2141404-9
Series:Nano MQS
Gender:Housing for female terminals
Number of Rows:2
Pitch:.071 in, 1.8 mm
Voltage:12 V AC, 12 V DC
Row Spacing:.232 in, 5.9 mm
Polarization:Yes
Body Material:PBT GF
Number of Positions:20
GPL:N54
Packaging:Box & Carton
Operating Temperature Range:-40 - 130 °C, -40 - 266 °F
Circuit Application:Signal
Sealable:No
GPL Description:Automotive
Product Code:M120
Connector System:Wire to Board, Wire-to-Device
Length:.952 in
Cable Exit Angle:180°
Height:.283 in, 7.2 mm
Width:16.45 mm, .648 in
Mating Tab Width:.205 in, .5 mm
Nominal Voltage Architecture:12 V
Body Color:Blue
Serviceable:No
Connector Code :Z
Mounting Feature:Without
Connector Position Assurance Capable:No
Hybrid Connector :No
Primary Locking Feature:On the Terminal
Material Flammability Standard:UL 94-HB
Part Aliases:2141404-9
SKU:AMP2141404-9

Detailed Description

Enhance your automotive connectivity with the Nano MQS series, featuring a compact housing designed for female terminals. This essential component offers two rows with a 1.8mm pitch, ensuring secure and efficient signal transmission. With a voltage rating of 12V DC and AC, it meets the power needs of your vehicle systems. Constructed from durable PBT GF material, it complies with UL 94-HB flammability standards for enhanced safety. Its 20 positions and N54 GPL code make it ideal for wire-to-board and wire-to-device applications. Operating reliably in temperatures ranging from -40 to 130°C, it's a dependable choice for automotive environments. The blue body color and 180° cable exit angle add to its versatility, while RoHS compliance underscores its environmental responsibility. Upgrade your connector system with this high-quality solution, perfect for automotive connector accessories.
