| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2150624-1 |
| SKU: | AMP2150624-1 |
2150624-1
| Heilind Number: | AMP2150624-1 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 2150624-1 |
| Datasheet: | Instruction Sheet |
| ECAD Model: | |
Specifications
Detailed Description

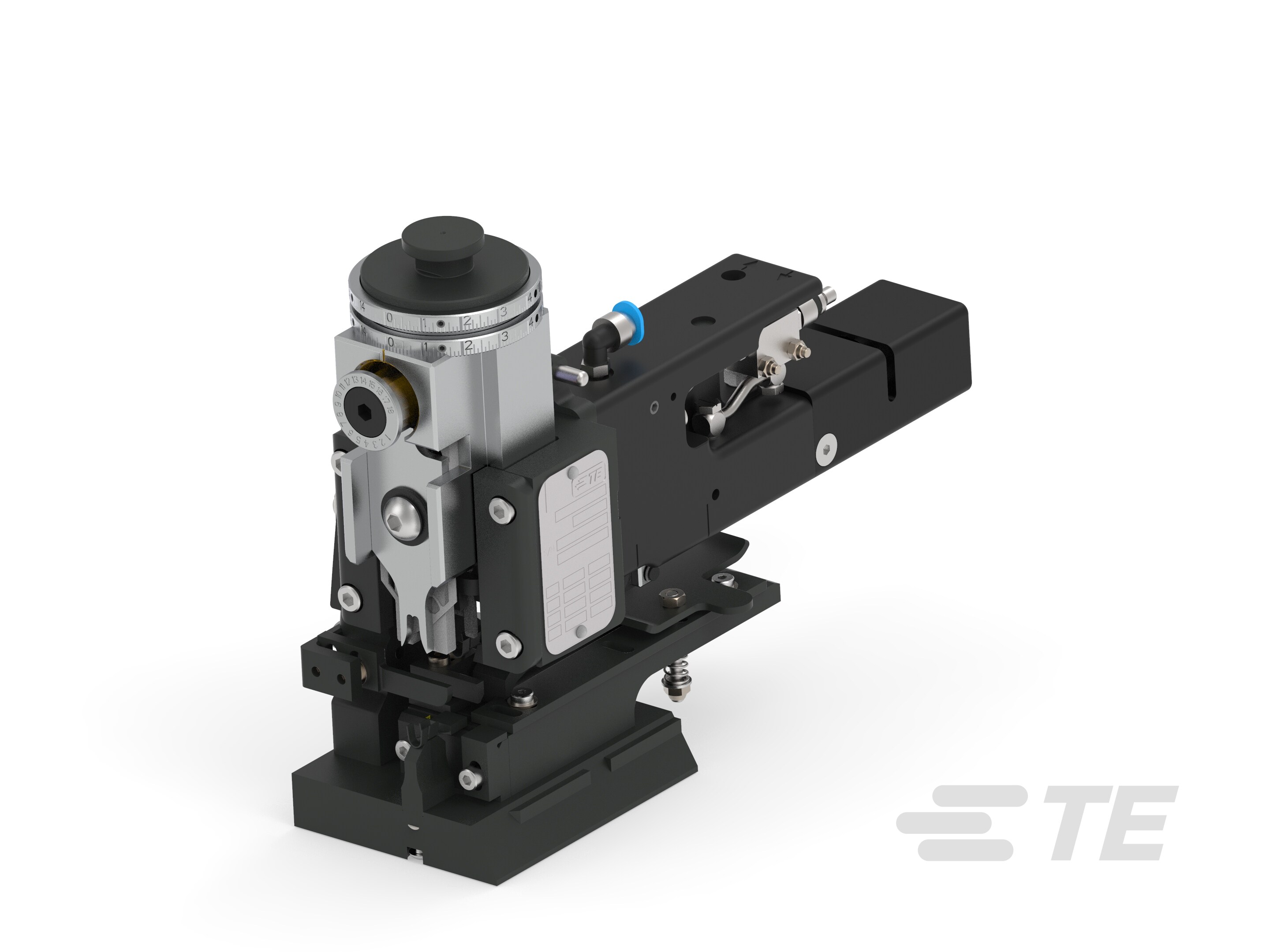

Enhance your application process with the OCEAN-2.0-APPLICATOR-E-190F, a precision tool designed for efficiency and accuracy. This high-performance applicator is equipped with a 30 mm (1.12") Stroke Terminator and a 40 mm (1.62") Stroke Terminator, making it suitable for a variety of tasks. Its mechanical feed type ensures consistent and reliable operation, while its RoHS compliance guarantees environmental responsibility. Perfect for professionals in the connectors and tools industry, this applicator is a must-have for achieving seamless results in your projects. Upgrade your workflow with this cutting-edge tool and experience the difference in performance.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/26/2019 | E-19-009780 - Document Clarification. OCEAN Applicator, 2150624. Corrected a typographical error on the bill of material during the conversion to OCEAN 2.0. This change will be implemented on future applicator orders but is not required for the functionality of existing applicators in the field. | Download | |||
| 02/28/2019 | E-18-016742 - Product Improvement. OCEAN applicator 2150624 has been upgraded to OCEAN 2.0, to include: enhanced terminal strip guide assembly and wire crimp height ram assembly. No change to previous applicator revisions are required. Where listed on the applicator logs-sheet, all terminals have been qualified using the stated crimp specification. | Download | |||
| 02/23/2018 | E-17-015217 - Product Improvement. Item 84, Lubricator Assembly, part number 2119955-2 was added. Lubricators are added to reduce tooling wear. | Download | |||
| 01/08/2018 | E-17-017808 - Product Improvement. OCEAN Applicator, 2150624. Added Item 69, Spacer, p/n 2119943-1. Added item 73, Wire Depressor, p/n 2119791-6. Item 82, Crimper spacer, p/n 455888-5. Added Item 261, Spacer, p/n 1803203-1. This update is an improvement over the current design resulting in the optimization of the rear bellmouth and reduce the possibility of wire stranding. No change necessary to the current revision of applicators. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
