| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2151017-1 |
| Product: | Applicators |
| Terminator Type: | 30 mm (1.12") Stroke Terminator, 40 mm (1.62") Stroke Terminator |
| Feed Type: | Mechanical |
| SKU: | AMP2151017-1 |
2151017-1
Specifications
Detailed Description

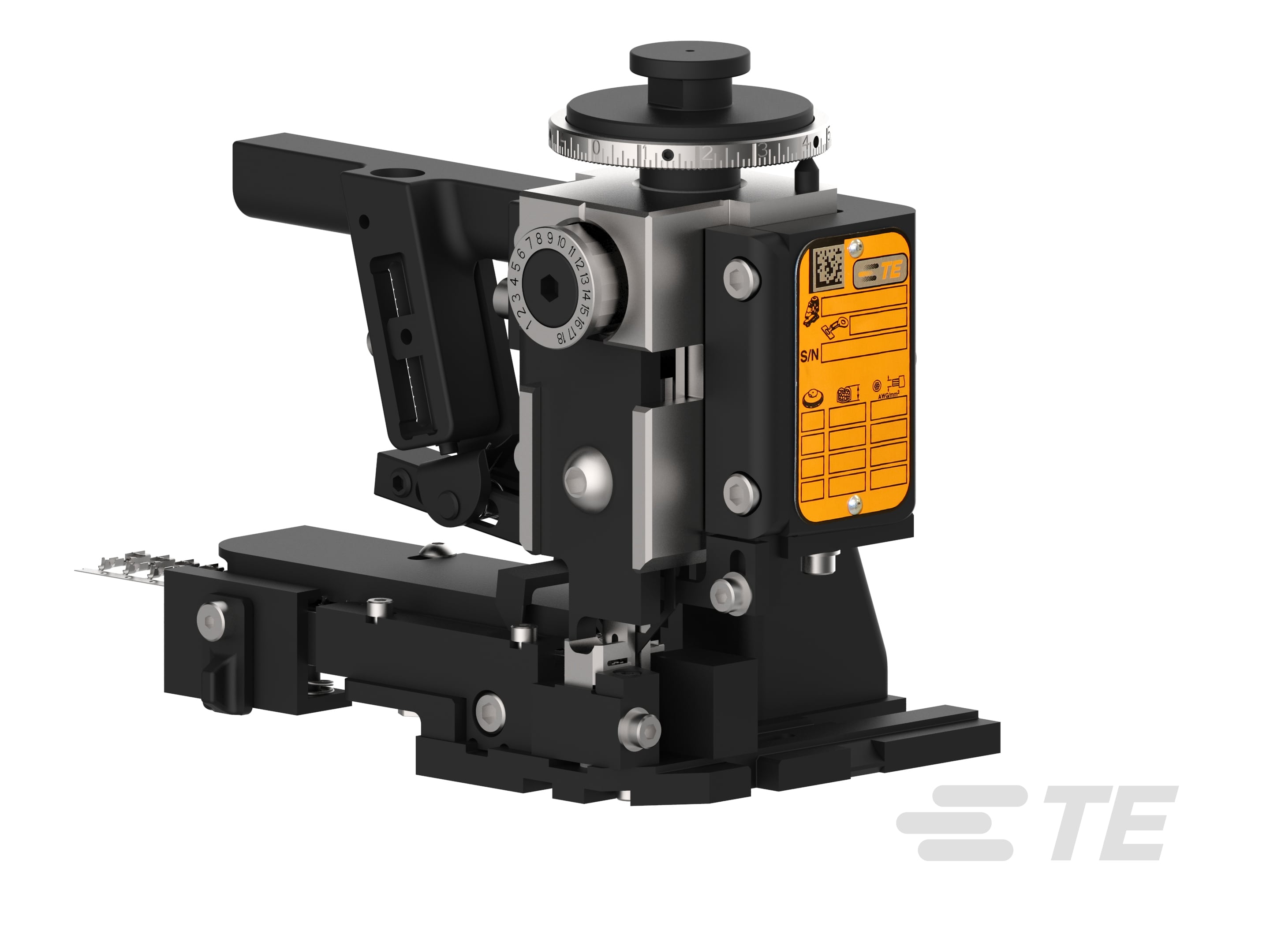

Introducing the OCEAN 2.0 APPLICATOR-S-048F080F, a versatile tool for efficient termination tasks. Featuring a 30mm (1.12") Stroke Terminator and a 40mm (1.62") Stroke Terminator, this applicator offers precision and flexibility in your operations. With a mechanical feed type, it ensures consistent performance with every use. Compliant with RoHS standards, it prioritizes environmental responsibility. Perfect for professionals in the connector and tool industries, this applicator is a must-have for streamlining your workflow. Elevate your termination processes with the OCEAN 2.0 APPLICATOR-S-048F080F.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 03/03/2021 | E-21-001283 - Product Improvement. OCEAN 2.0 applicator 2151017 has been upgraded to include the OCEAN 2.0 air feed assembly. A drafting error was corrected removing items 294 and 295. This change will be implemented on future applicator orders but is not required for the functionality of existing applicators in the field. Where listed on the applicator logs-sheet, all terminals have been qualified using the stated crimp specification. | Download | |||
| 02/22/2021 | E-20-018179 - Product Improvement. Ocean Applicator part number 2151017. Terminal part numbers 770901 (all dashes), 794218 (all dashes), 770902 (all dashes), and 794219 (all dashes) were removed due to the wire developed width was 0.5mm large causing the finished crimps to not meet the application specification. New Ocean applicator part number 2837923 was created to run these terminal part numbers. Crimper spacer was changed between wire crimper and insulation crimper for better coverage of the insulation barrel during crimping. The following part was changed. Item number 2, crimper spacer, part number 455888-7. This change will be implemented on future applicator orders but is not required for the functionality of existing applicators in the field. | Download | |||
| 02/22/2021 | E-21-000112 - Product Improvement. changes were made to Ocean Applicator part number 2151851 in order to better meet bend requirement, minimize flash, and changed to current standard shear depressor, wire depressor, and floating shear. The following items were changed. Item number 5, shear depressor, part number 2119757-5. Item number 9, floating shear, part number 1803095-6. Item number 19, side feed stripper, part number 2119533-4. The following items were removed. Item number 28, crimper spacer, part number 455888-4. Item number 58, slotted spring pin, part number 21028-2. Item number 74, insulation holder, part number 854769-4. Item number 77, compression spring, part number 5-547505-2. The following items were added. Item number 50, spring loaded hold down, part number 1803870-6. Item number 53, socket head cap screw, part number 1-2168083-0. Item number 70, wire depressor, part number 2119791-5. Item number 113, side feed lubricator assembly, part number 2119955-1. | Download | |||
| 08/30/2019 | E-19-006414 - Product Improvement. Item 113, Lubricator Assembly, part number 2119955-1 was added. Terminal lubricators are added to reduce tooling wear and reduce flash. | Download | |||
| 06/20/2018 | E-18-008334 - Product Improvement. OCEAN applicator 2151017 has been upgraded to OCEAN 2.0, to include: enhanced terminal strip guide assembly and wire crimp height ram assembly. No change to previous applicator revisions are required. Where listed on the applicator logs-sheet, all terminals have been qualified using the stated crimp specification. In addition, 2266674 is being obsoleted and new versions are being added to 2151017. | Download | |||
| 03/28/2016 | E-16-001720 - Product Improvement. Changes to Ocean Applicator part number 2151017 in order to eliminate wire stranding in wire barrel when using largest listed insulation diameter. | Download | |||
| 03/05/2013 | Changes made to Ocean Applicator p/n 2151017 per TE Japan request. | Download | |||
| 08/30/2012 | Ocean Applicator 2151017 supersedes the following applicators 1385076, 2034027, 1911214, 1426164, 1528104, and 567066. | N/A | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
