2169791-1

Heilind Number:	AMP2169791-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2169791-1
Datasheet:	Agency Approval Document (UL Report)
ECAD Model:

Description:

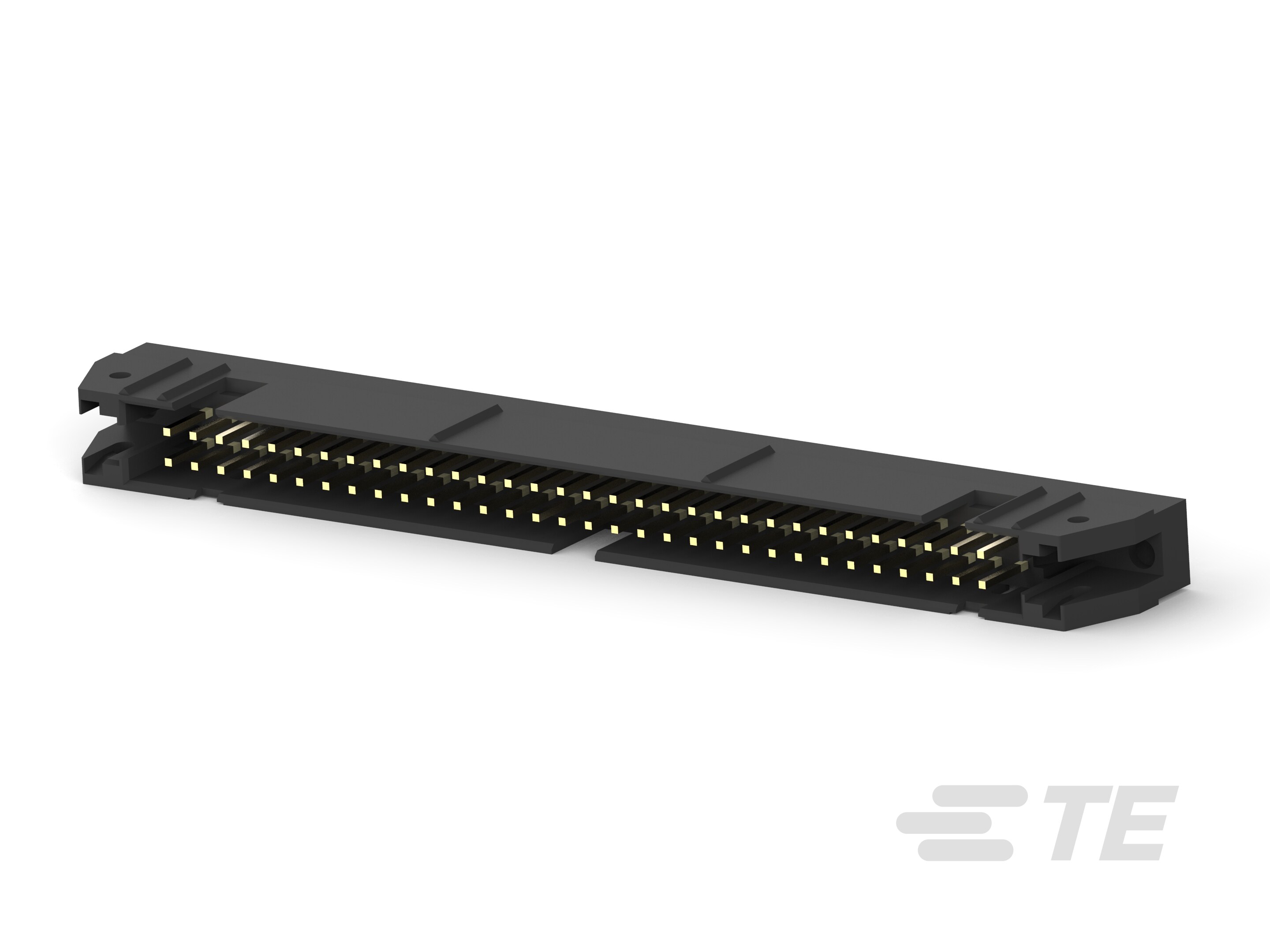

AMP-LATCH UNV HDR,44P,ACT-PIN,SEL LOAD

More >>

Specifications

Attribute	Value
Product Category:	FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2169791-1
Gender:	Plug
Number of Rows:	2
Mount Type:	Board Mount
Termination Method:	Through Hole - Press-Fit
Pitch:	.1 in, 2.54 mm
Row Spacing:	.1 in, 2.54 mm
Contact Amperage:	1 A
Number of Positions:	44
Mount Orientation:	Vertical
GPL:	039
Profile:	Standard
Operating Temperature Range:	-65 - 105 °C, -85 - 221 °F
PCB Retention:	With
PCB Retention Type:	Kinked
Sealable:	No
Mating Alignment Type:	Polarization
Mating Connector Lock Type:	Ejection Latch
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	5275
Connector System:	Wire to Board
Mating Connector Lock:	With
Part Aliases:	2169791-1
SKU:	AMP2169791-1

Detailed Description

Enhance your circuit board connections with this AMP-LATCH UNV HDR, featuring 44 pins for secure and efficient data transfer. Designed for vertical board mounting with through-hole press-fit termination, this connector ensures reliable performance even in demanding environments with an operating temperature range of -65 to 105°C (-85 to 221°F). Its dual-row configuration, 2.54mm pitch, and 1A contact amperage make it suitable for a wide range of applications. With PCB retention and polarization for easy alignment, as well as ejection latch locking for added security, this connector offers convenience and peace of mind. Achieve seamless wire-to-board connectivity with this RoHS-compliant component, ideal for FFC, FPC, ribbon, and IDC applications.
