2174507-2

Heilind Number:	AMP2174507-2
Manufacturer:	TE Connectivity
Manufacturer Number:	2174507-2
Datasheet:	Datasheet
ECAD Model:

Description:

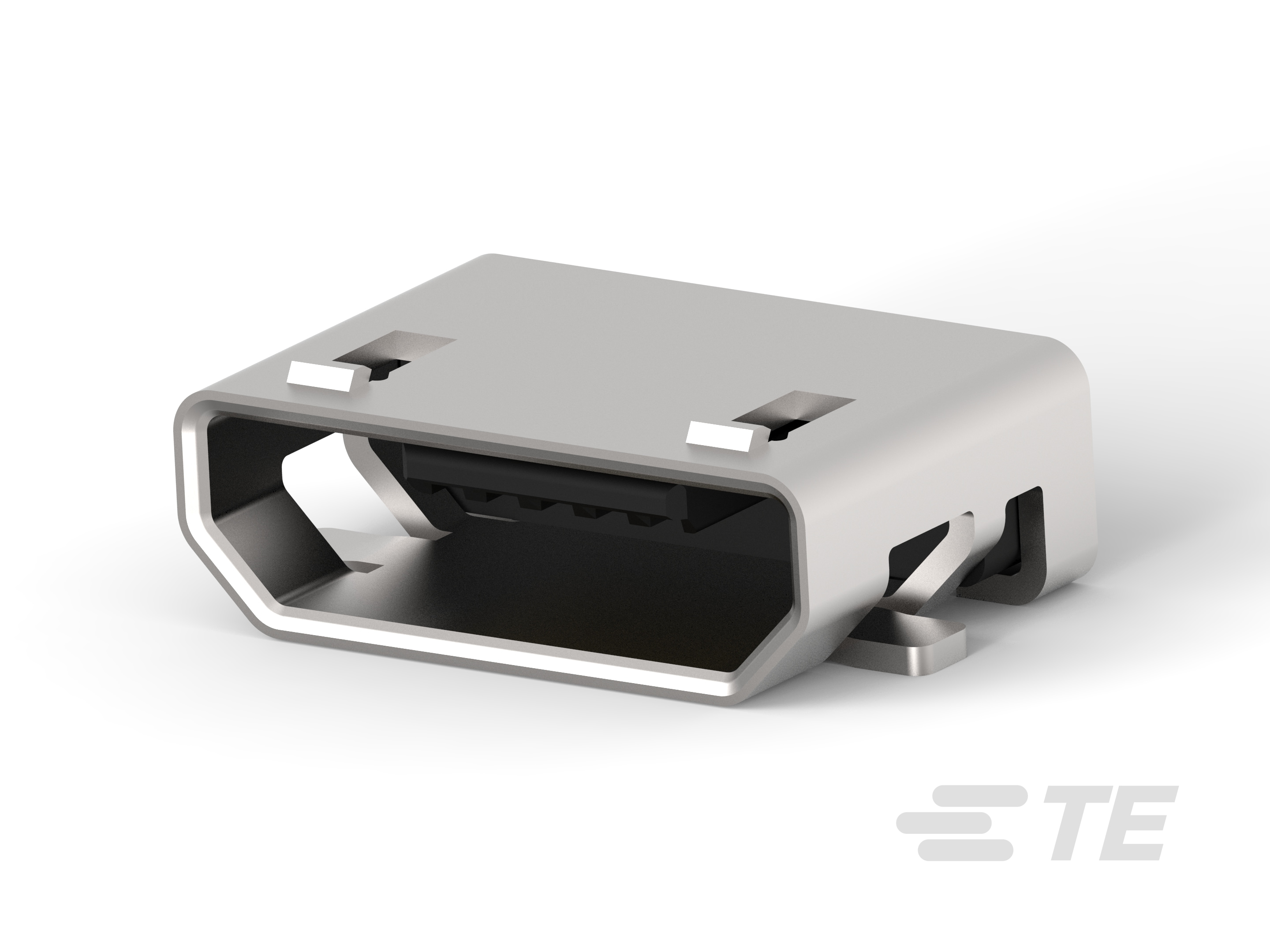

REC TYPE-B ASSY MICRO USB I/O

More >>

Specifications

Attribute	Value
Product Category:	IO Connectors USB Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2174507-2
Amperage:	1.8 A
Gender:	Receptacle
Housing Material:	Thermoplastic
Mount Type:	Board Mount
Termination Method:	Reflow Solder
Maximum Operating Temperature:	85 °C
Body Orientation:	Right Angle
Pitch:	.025 in, .65 mm
Shell Plating:	Reflowed Tin over Nickel
Number of Ports:	1
Orientation:	Right Angle
USB Type:	B
USB Size:	Micro
USB Version:	2.0
Mount Location:	Top
Contact Amperage:	1.8 A
Number of Positions:	5
Housing Color:	Black
Termination Type:	Surface Mount
Tail Length:	.03 in, .75 mm
Pick and Place:	Without Pick and Place Cover
Operating Temperature Range:	-22 - 185 °F, -30 - 85 °C
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	29.52 µin, .76 µm
Mating Cycles:	10000
PCB Thickness (Recommended):	.8 - 1 mm
PCB Retention Type:	SMT Hold-Down
Connector and Contact Terminate To:	Printed Circuit Board
Connector System:	Cable-to-Board
Connector Product Type:	Connector
LED Indicator:	Without
Offset:	0 mm
Shell Plating Finish:	Bright
Locating Posts:	Without
Maximum Soldering Temperature:	260 °C, 500 °F
Locking Latch:	Without
Halogen Free:	No
Locking Feature:	Without
PCB Connector Seating:	Offset
Standard:	USB 2.0
Material Flammability Standard:	UL 94V-0
Part Aliases:	2174507-2
SKU:	AMP2174507-2

Detailed Description

Enhance your electronic devices with our REC Type-B Assembly Micro USB I/O connector. Designed for seamless connectivity, this receptacle features a Type B USB port with a maximum amperage of 1.8 A, making it ideal for power and signal transmission. Crafted from durable thermoplastic with a UL 94V-0 flammability standard, it ensures reliable performance even in demanding environments. The right-angle body orientation and board mount termination method offer convenient installation on PCBs. With gold-plated contacts and a mating cycle of 10,000, it guarantees long-lasting, high-quality connections. This USB 2.0 compliant connector, packaged in quantities of 1000, is perfect for various applications in data and device connectivity. RoHS compliant for environmental responsibility. Elevate your designs with this essential component.
