2199155-1

AMP2199155-1
Heilind Number:AMP2199155-1
Manufacturer:TE Connectivity
Manufacturer Number:2199155-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

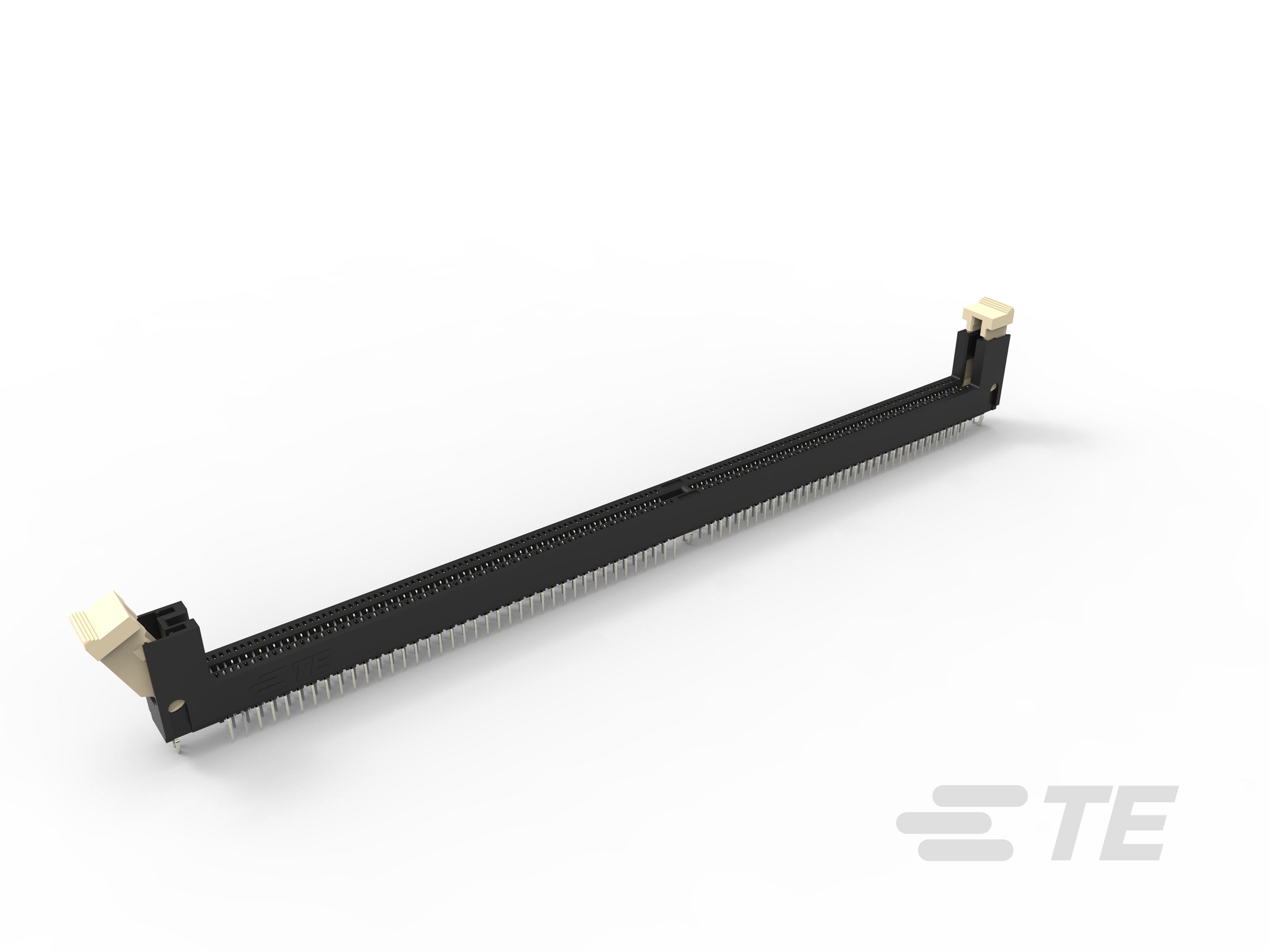

DDR4 DIMM 288 Pin SMT type

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2199155-1
Series:DDR4 DIMM
Amperage:.75 A
Number of Contacts:288
Mount Type:Board Mount
Maximum Operating Temperature:105 °C
Body Orientation:Straight
Pitch:.033 in, .85 mm
Card Orientation:Vertical
Contact Amperage:.75 A
Number of Positions:288
GPL:053
Packaging:Hard Tray
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Signal
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:E449
Connector System:Board-to-Bus Bar
ECCN:EAR99
Ejector Type:Standard
PCB Mounting Style:Surface Mount
DRAM Type:DDR4
Part Aliases:2199155-1
SKU:AMP2199155-1

Detailed Description

Enhance memory performance with our DDR4 DIMM 288 Pin SMT type connector, designed for seamless integration on circuit boards. With a straight body orientation and vertical card placement, it offers efficient signal transmission in electronic devices. Operating at temperatures ranging from -55 to 105 °C (-67 to 221 °F), this connector ensures reliability in diverse environments. Featuring a pitch of .85 mm (.033 in) and 288 contacts, it facilitates secure board-to-bus bar connections. Compliant with RoHS standards, it guarantees environmentally friendly manufacturing practices. Upgrade your system with this essential component for optimal memory functionality.
