| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2204740-1 |
| Housing Material: | LCP (Liquid Crystal Polymer) |
| Number of Rows: | 1 |
| Termination Method: | Through Hole - Press-Fit |
| Contact Material: | Copper Alloy |
| Voltage: | 300 V AC, 300 V DC |
| Contact Size: | 4 |
| Contact Type: | Receptacle |
| Contact Amperage: | 50 A |
| Number of Positions: | 2 |
| Housing Color: | Black |
| Mount Orientation: | Right Angle |
| Insulation Resistance: | 1000 MΩ |
| GPL: | H82 |
| Packaging: | Tray |
| Operating Temperature Range: | -40 - 125 °C, -40 - 257 °F |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | 1.25 µm, 50 µin |
| Shielded: | No |
| PCB Retention: | With |
| Contact Termination Plating Thickness: | .05 µm, 2 µin |
| Contact Underplating Material: | Nickel |
| PCB Thickness (Recommended): | .087 in, 2.2 mm |
| Connector Height: | .348 in, 8.85 mm |
| PCB Retention Type: | Action/Compliant Tail |
| Sealable: | No |
| Mating Alignment: | Without |
| GPL Description: | Data and Devices |
| Connector and Contact Terminate To: | Printed Circuit Board |
| Product Code: | L849 |
| Number of Power Positions: | 2 |
| Contact Layout: | Matrix |
| Connector Length: | 2.244 in, 57 mm |
| Connector System: | Board to Board |
| Contact Termination Plating: | Gold |
| Connector Product Type: | Connector |
| ECCN: | EAR99 |
| Dielectric Withstanding Voltage: | 1500 V AC, 1500 V DC |
| Board to Board Configuration: | Parallel |
| Contact Mating Area Plating Finish: | Bright |
| Contact Underplating Thickness: | 1.25 - 5 µm, 50 - 200 µin |
| Connector Width: | 2.579 in, 65.5 mm |
| Mating Retention: | Without |
| PCB Mount Alignment: | Without |
| Termination Post Tail Length: | .134 in, 3.4 mm |
| Contact Retention: | With |
| Circuit Identification Feature: | Without |
| Contact Termination Area Plating Finish: | Bright |
| VDE Tested: | No |
| Connector and Housing Type: | Receptacle |
| Assembly Process Feature: | None |
| Contact Material (Power): | Copper Alloy |
| Contact Type: | Stamped & Formed |
| Multiple Contact Types: | Without |
| Standards Met: | UL |
| Material Flammability Standard: | UL 94V-0 |
| Part Aliases: | 2204740-1 |
| SKU: | AMP2204740-1 |

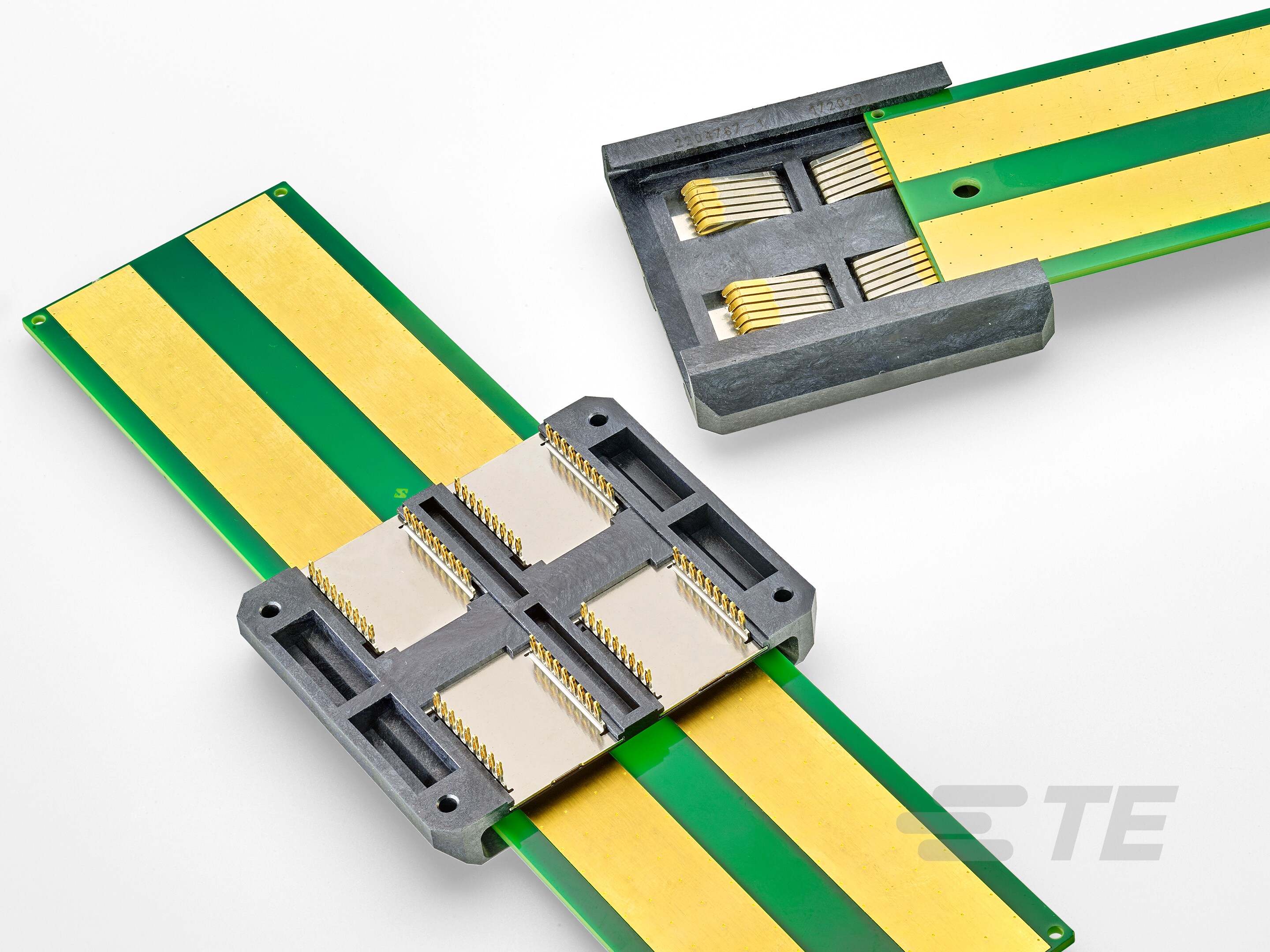

2204740-1
Specifications
Detailed Description
Meet stringent UL standards with our high-quality power connector, designed for reliable performance in demanding applications. Featuring a durable LCP housing in sleek black, this connector is engineered for secure board-to-board connections, with two power positions and right-angle mount orientation. Each 4-size contact boasts copper alloy construction and gold plating for optimal conductivity, accommodating a maximum voltage of 300V AC/DC and 50A contact amperage. With a wide operating temperature range of -40 to 125°C (-40 to 257°F) and insulation resistance of 1000 MΩ, this connector ensures consistent functionality even in harsh environments. Its press-fit termination method, along with PCB retention with compliant tail, offers easy and secure installation. RoHS compliant and lead-free solder capable, this connector is not only high-performing but also environmentally conscious. Whether for industrial machinery, telecommunications, or automotive systems, this connector is the perfect choice for your power transmission needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
