2226744-5

AMP2226744-5
Heilind Number:AMP2226744-5
Manufacturer:TE Connectivity
Manufacturer Number:2226744-5
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

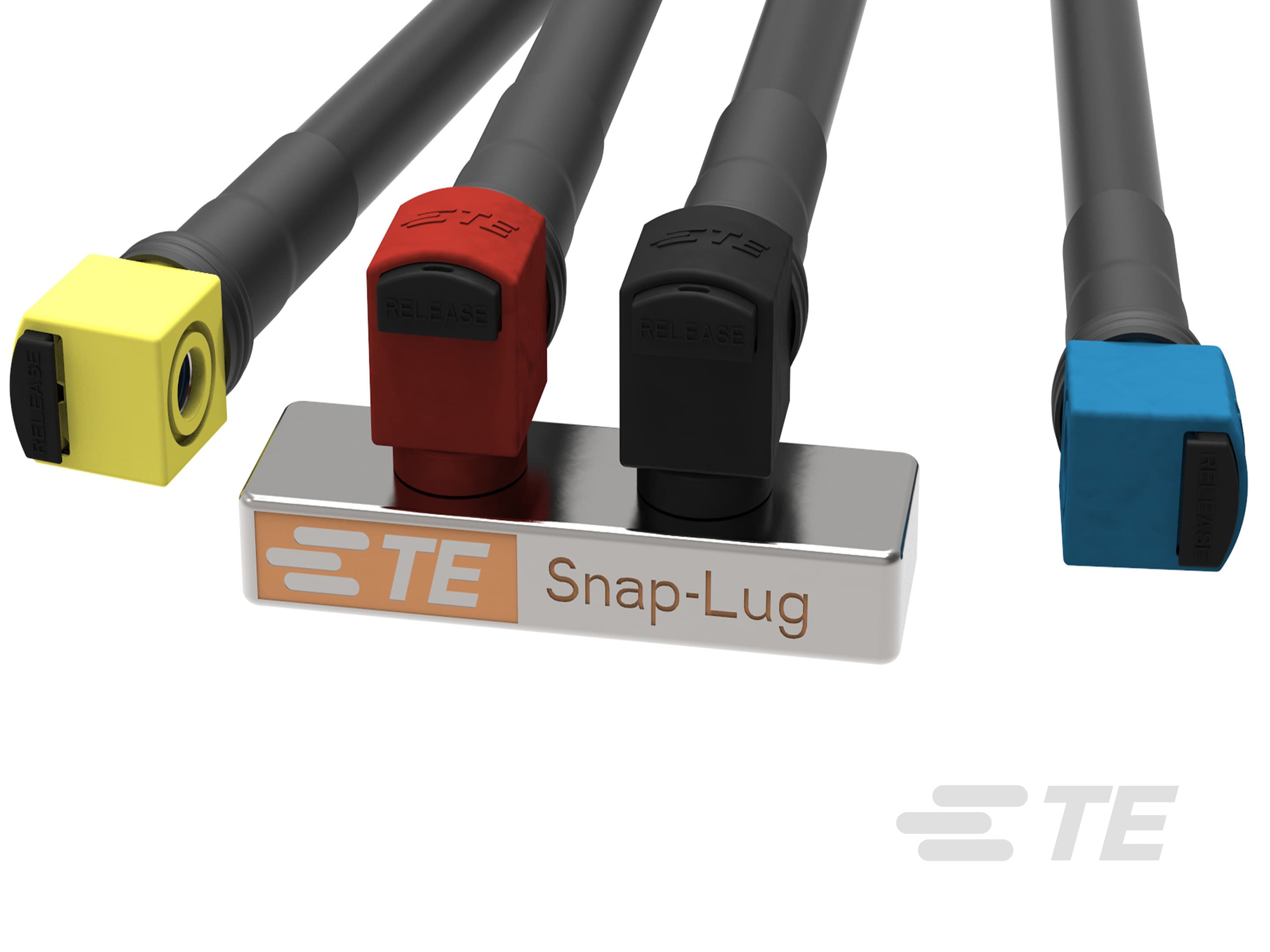

KIT, PIN, SNAP-LUG, YELLOW, 3/8 THREAD

More >>

Specifications

AttributeValue
Product Category:
Power Connectors Busbar Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2226744-5
Color:Yellow
Amperage:250 A
Gender:Plug
Housing Material:Thermoplastic
Contact Material:Copper
Contact Plating:Silver
Insulation Material:Thermoplastic
Contact Length:1.65 in, 42 mm
Contact Amperage:250 A
Number of Positions:1
GPL:372
Packaging:Package
Operating Temperature Range:-65 - 150 °C, -85 - 302 °F
Circuit Application:Power
GPL Description:Aerospace Defense & Marine
Connector and Contact Terminate To:Bus Bar, Wire & Cable
Product Code:EE14
Connector System:Wire-to-Bus Bar
ECCN:EAR99
Contact Style:CROWN BAND
Hot Pluggable:No
Material Flammability Standard:UL 94V-0
Part Aliases:2226744-5
SKU:AMP2226744-5

Detailed Description

Easily connect power components with this Snap-Lug Pin Kit, essential for various industrial applications. Designed for high amperage of up to 250 A, it ensures reliable performance in demanding environments. The yellow thermoplastic housing and copper contact with silver plating guarantee durability and efficient conductivity. With UL 94V-0 flammability standard compliance, it prioritizes safety. Operating in a wide temperature range of -65 to 150 °C, it is suitable for aerospace, defense, and marine industries. This kit, featuring a single position and Crown Band contact style, is RoHS compliant, making it an environmentally friendly choice for power connectivity. Perfect for wire-to-bus bar connections, it offers convenience and ease of installation.
