227426-1

AMP227426-1
Heilind Number:AMP227426-1
Manufacturer:TE Connectivity
Manufacturer Number:227426-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

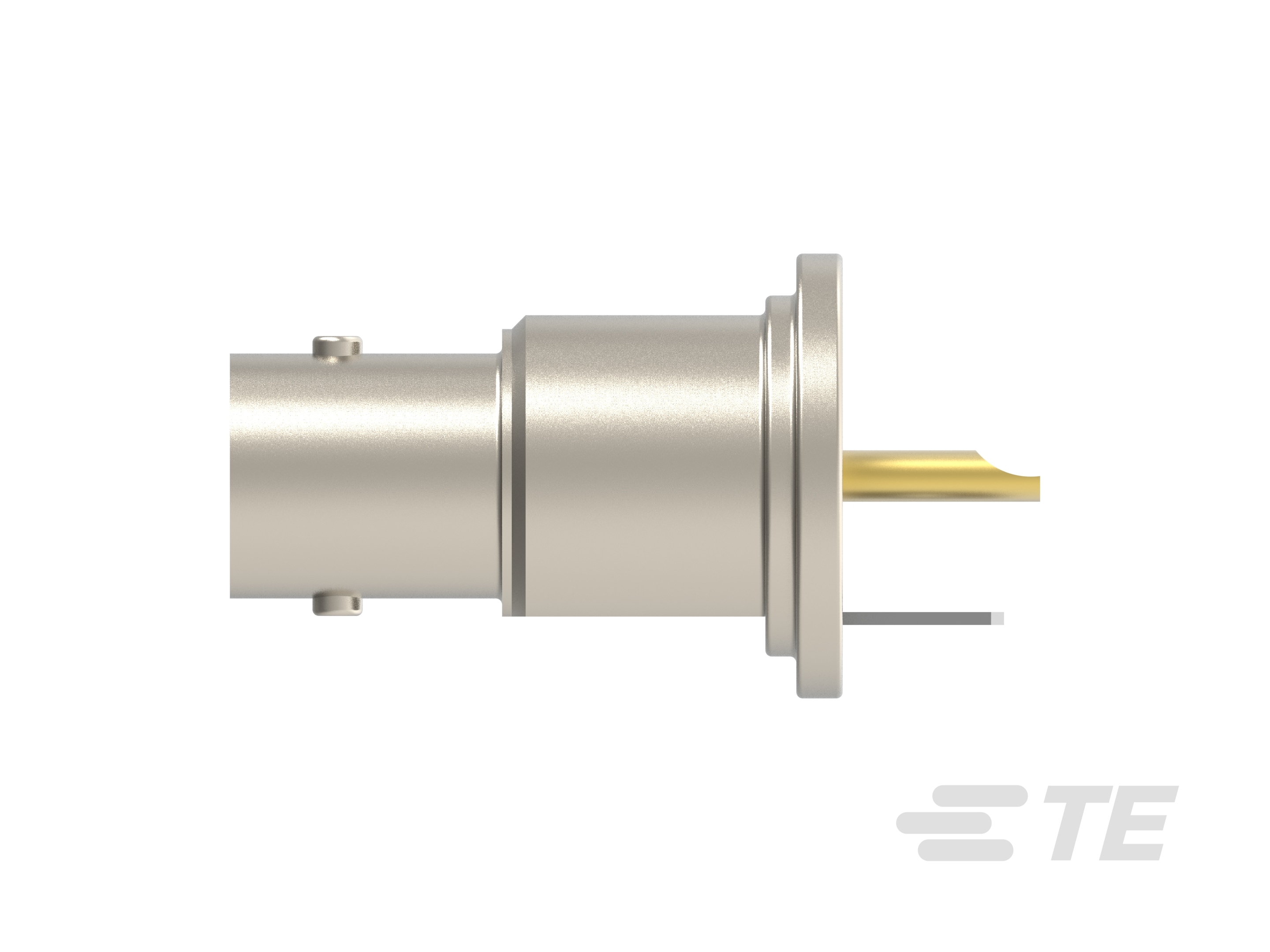

BNC BLKHD RECPT SEALED

More >>

Specifications

AttributeValue
Product Category:
RF Coaxial Connectors & Accessories RF Coaxial Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 227426-1
Gender:Jack
Mount Type:Panel
Termination Method:Solder Terminal
Contact Material:Phosphor Bronze
Contact Plating:Gold
Mating Type:Bayonet
Seal Type:Gasket
Impedance:50 Ω
Operating Frequency:4 GHz
RF Connector Type:BNC
Body Material:Zinc
Body Shape:Circular
Number of Positions:1
Interface:BNC
GPL:076
Port Configuration:Single Port
Packaging:Package
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Panel Mount:Rear Mount
PCB Retention:Without
Additional Features:Hardware Included
Sealable:Yes
Wire Termination Style:Solder Terminal
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire and Cable
Product Code:3134
Number of Coaxial Contacts:1
Body Insulation:Without
Body Plating Material:Nickel
Cable Connector Orientation:Straight
Center Contact Plating Material:Gold
Center Contact Material:Phosphor Bronze
Center Contact Plating Thickness:762 µin
Detent:With
Dielectric Material:Polymethylpentene
Contact Captivation Method:Mechanical
Mated Outer Diameter (Approximate):14.529 mm, .572 in
Product Grade:Commercial
Connector System:Cable to Cable
Panel Attachment Style:Rear Mount
Part Aliases:227426-1
Replacement Part:5227426-1
SKU:AMP227426-1

Detailed Description

Enhance your connectivity with our BNC Bulkhead Receptacle, meticulously designed for seamless integration. Sealed for optimal performance, this jack is perfect for panel mounting with solder terminals ensuring a secure connection. Crafted from durable zinc with gold-plated phosphor bronze contacts, it guarantees reliable signal transmission. Featuring a bayonet mating type and gasket seal, it offers efficient RF connectivity at a frequency of 4 GHz. With a single port configuration and included hardware, installation is a breeze. Operating in a wide temperature range and compliant with RoHS standards, it's ideal for various applications. Trust in its quality for your RF coaxial needs.
