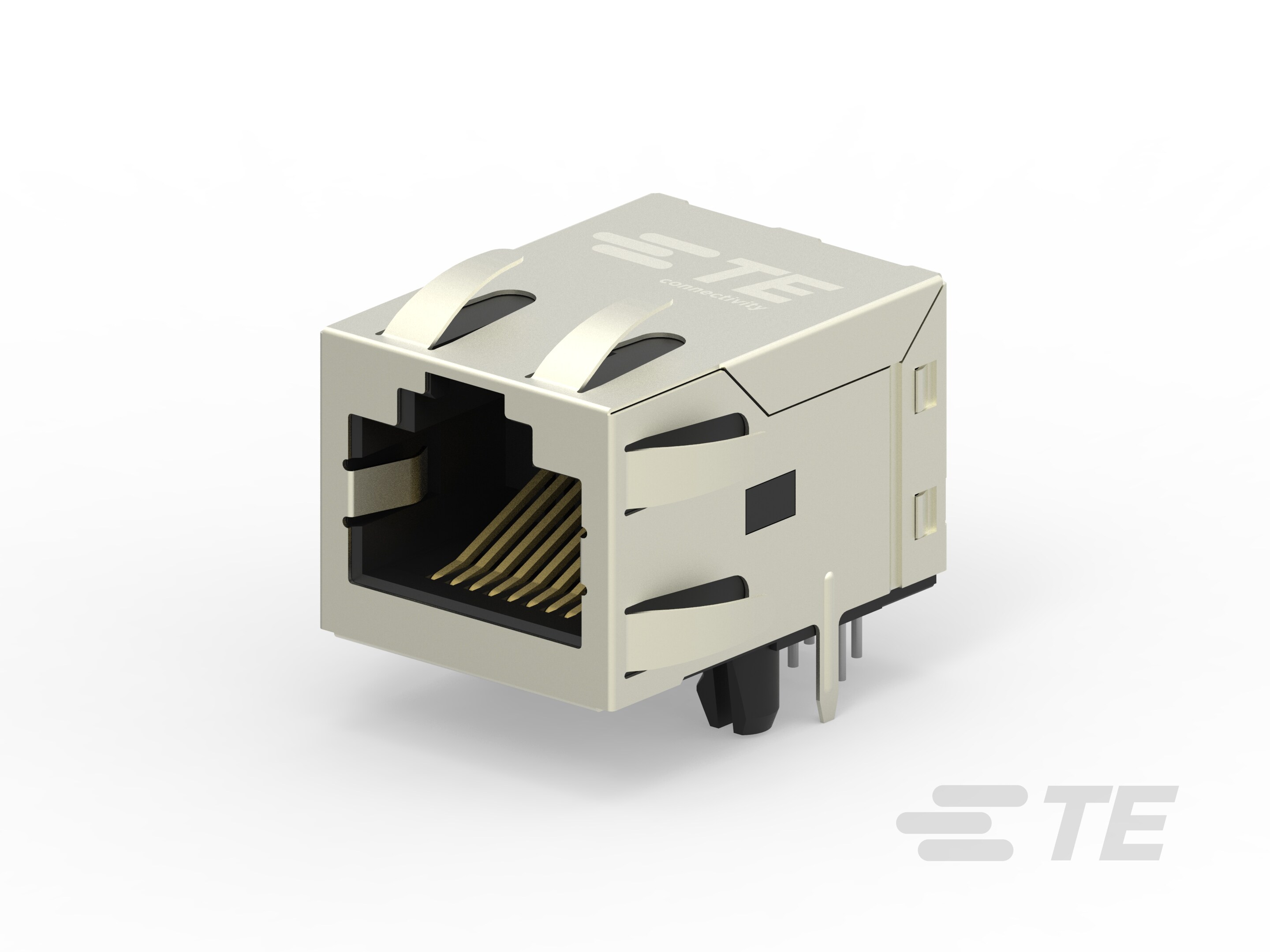

2301994-5

Heilind Number:	AMP2301994-5
Manufacturer:	TE Connectivity
Manufacturer Number:	2301994-5
Datasheet:	Product Specification
ECAD Model:

Description:

RJ45 JACK INT.MAG. 1GB 1X1 INV.

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks & Plugs
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301994-5
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Right Angle
Latch Orientation:	Inverted - Latch Up
GPL:	Z16
LED Color (Bottom Right):	None
LED Color (Bottom Left):	None
LED Color (Top Left):	None
LED Color (Top Right):	None
PCB Ground Tab Location:	.12 in, 3.05 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Number of Loaded Positions:	8
Mating Entry Location:	Side
Number of Panel Ground Tabs:	6
Number of PCB Ground Tabs:	2
Panel Ground Location:	Top and Side
Port Configuration:	Single Port
Port Matrix Configuration:	1 x 1
Status Indicator:	None
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	13.8 mm, .543 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB and Panel Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301994-5

Detailed Description

Enhance your network connectivity with our high-performance Industrial RJ45 Jack. Designed for seamless integration, this 1X1 inverted mag jack boasts 1GB data transfer capabilities, meeting Cat 5e standards for reliable speeds. Crafted with durable LCP housing and copper alloy contacts, it ensures long-lasting connectivity even in demanding industrial environments. The sleek black housing, right-angle mount orientation, and inverted latch up design offer flexibility in installation. With UL 94V-0 flammability standard compliance and shielded construction, this jack prioritizes safety and signal integrity. Perfect for single-port configurations, it comes in a package of 80 on a convenient reel for efficient deployment. Trust in its gold-plated contact mating area and nickel-plated shield for optimal performance. RoHS compliant and operating efficiently at temperatures up to 260°C, this RJ45 jack is the ideal choice for industrial applications. Elevate your networking infrastructure with this reliable and high-speed connector.
