2301995-1

Heilind Number:	AMP2301995-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2301995-1
Datasheet:	2D Model (DXF)
ECAD Model:

Description:

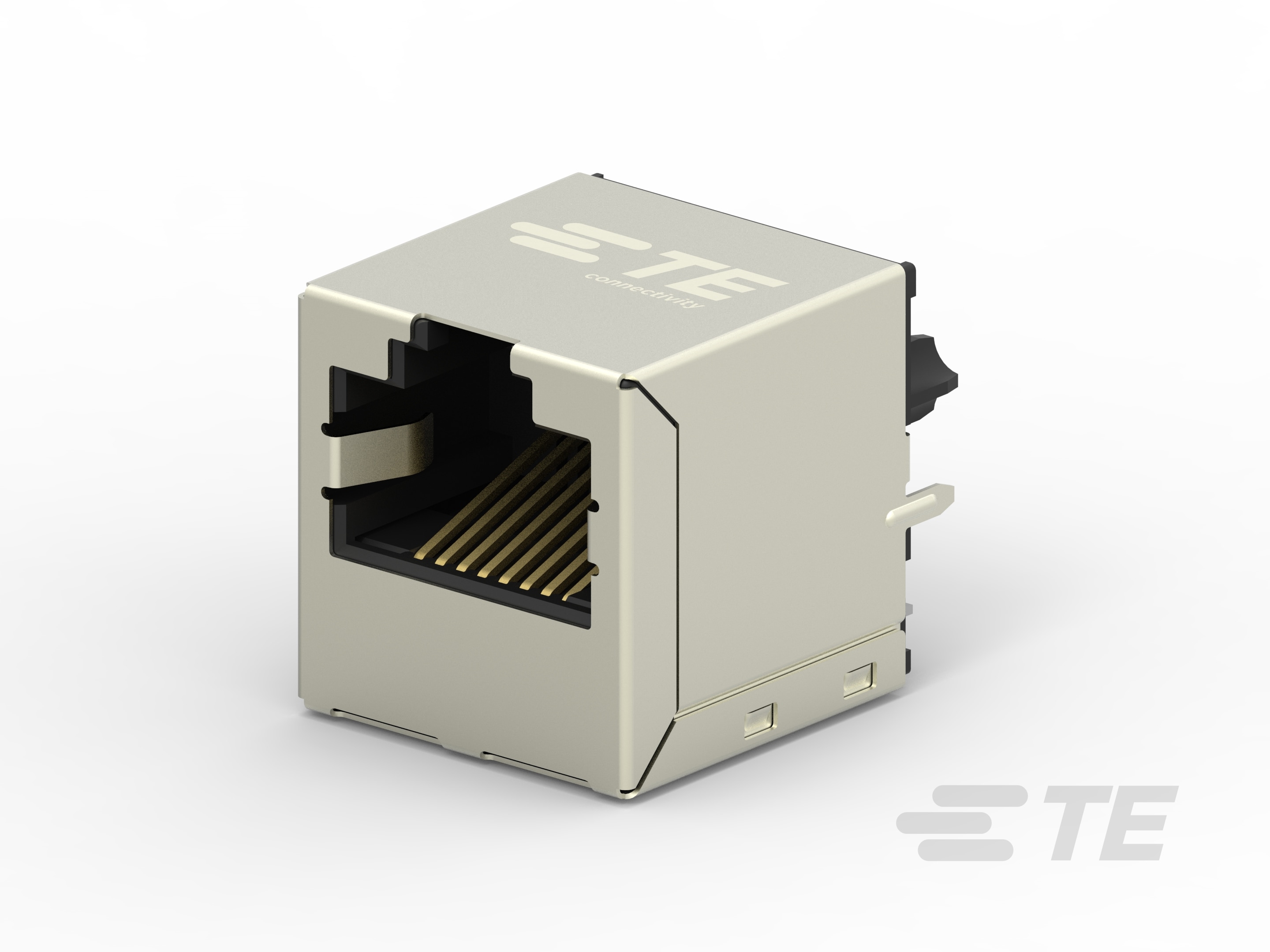

RJ45 JACK INT.MAG. 1GB 1X1 VERT.

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301995-1
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Vertical
Latch Orientation:	Standard - Latch Down
GPL:	Z16
LED Color (Bottom Right):	None
LED Color (Bottom Left):	None
LED Color (Top Left):	None
LED Color (Top Right):	None
PCB Ground Tab Location:	.153 in, 3.89 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Number of Loaded Positions:	8
Mating Entry Location:	Top
Number of PCB Ground Tabs:	2
Port Configuration:	Single Port
Port Matrix Configuration:	1 x 1
Status Indicator:	None
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	16.89 mm, .665 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301995-1
