Heilind Number:	AMP2301995-4
Manufacturer:	TE Connectivity
Manufacturer Number:	2301995-4
Datasheet:	Drawing
ECAD Model:

Description:

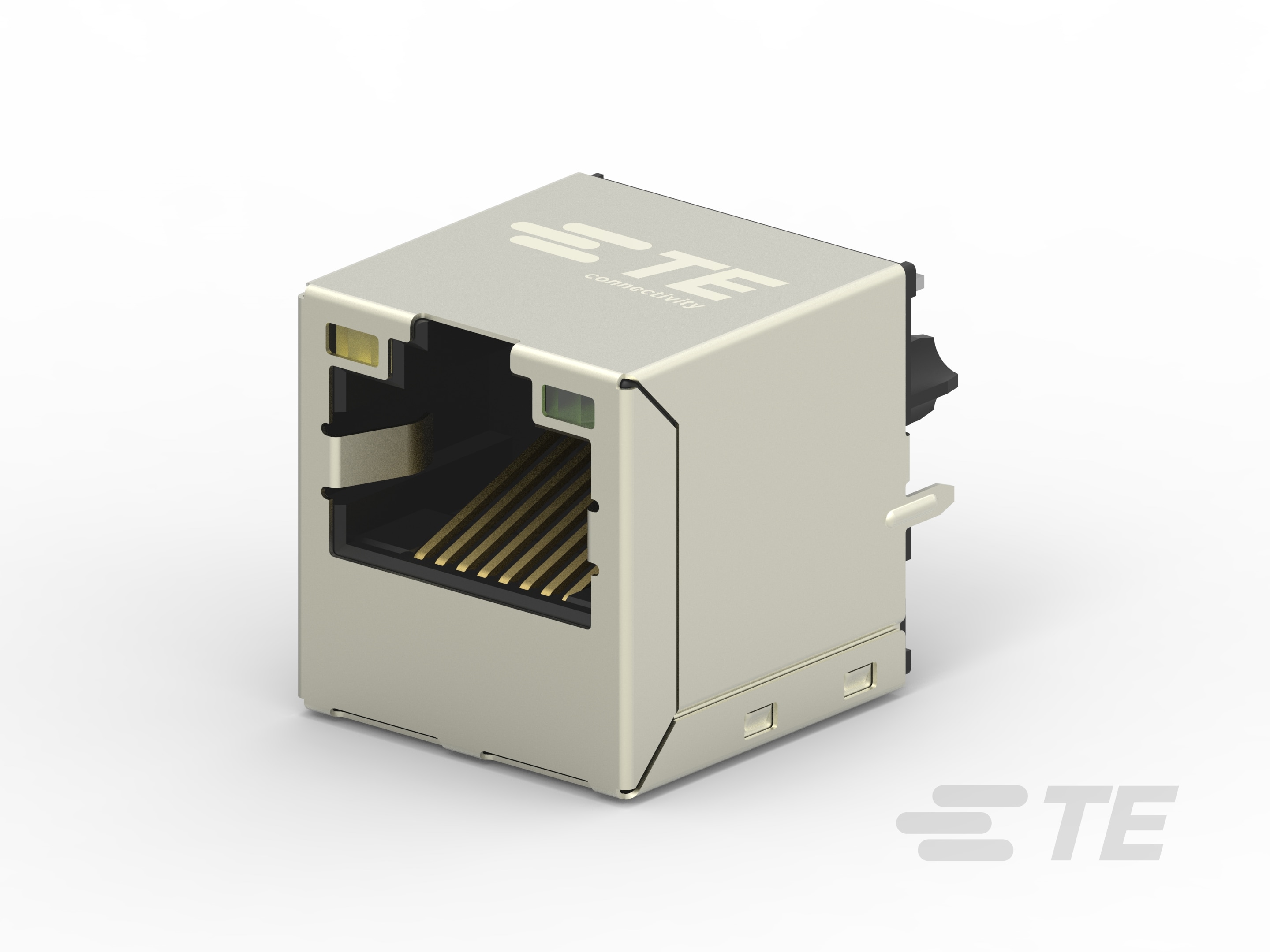

RJ45 JACK INT.MAG. 1GB LED 1X1 VERT.

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301995-4
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Vertical
Latch Orientation:	Standard - Latch Down
GPL:	Z16
LED Color (Bottom Right):	Green/Yellow
LED Color (Bottom Left):	Green/Yellow
LED Color (Top Left):	None
LED Color (Top Right):	None
PCB Ground Tab Location:	.153 in, 3.89 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Number of Loaded Positions:	8
Mating Entry Location:	Top
Number of PCB Ground Tabs:	2
Port Configuration:	Single Port
Port Matrix Configuration:	1 x 1
Status Indicator:	LED
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	16.9 mm, .665 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301995-4

Detailed Description

Upgrade your network connectivity with our Industrial RJ45 Jack. Designed for high-speed data transmission with a data rate of 1000 Mb/s, this jack features integrated magnetics and LED indicators for seamless operation. Constructed with durable LCP housing and copper alloy contacts, it ensures reliable performance in industrial environments. The black housing, along with standard shielded design, offers enhanced protection. With a vertical mount orientation and through-hole solder termination, installation is convenient. RoHS compliant and meeting UL 94V-0 flammability standards, it guarantees safety and environmental responsibility. Ideal for Cat 5e applications, this RJ45 Jack is a must-have for industrial networking setups.
