2301996-7

Heilind Number:	AMP2301996-7
Manufacturer:	TE Connectivity
Manufacturer Number:	2301996-7
Datasheet:	Product Specification
ECAD Model:

Description:

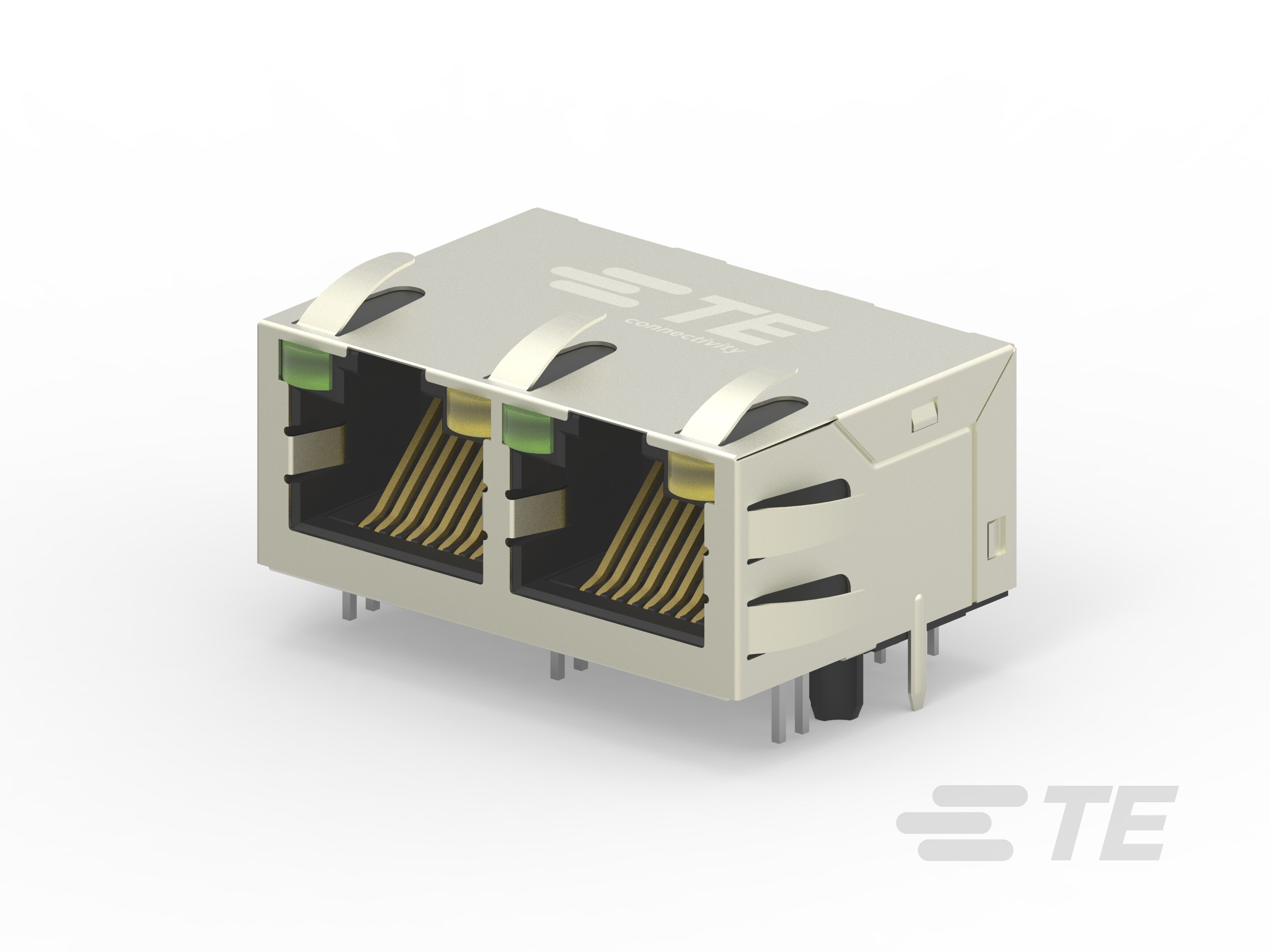

RJ45 JACK INT.MAG. 1GB LED 1X2 INV.

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Components RJ Jacks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2301996-7
Series:	Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:	LCP (Liquid Crystal Polymer)
Termination Method:	Through Hole - Solder
Contact Material:	Copper Alloy
USOC Codes:	RJ45 with Integrated Magnetics
Insulation Material:	LCP
LAN Category:	Cat 5e
Keying:	No
Package Quantity:	80
Number of Positions:	8
Data Rate:	1000 Mb/s
Housing Color:	Black
Mount Orientation:	Right Angle
Latch Orientation:	Inverted - Latch Up
GPL:	Z16
LED Color (Bottom Right):	None
LED Color (Bottom Left):	None
LED Color (Top Left):	Green/Yellow
LED Color (Top Right):	Green/Yellow
PCB Ground Tab Location:	.12 in, 3.05 mm
Profile:	Standard
Shield Material:	Brass
Shield Plating Material:	Nickel
Shield Plating Finish:	Matte
Connector Contact Density:	Standard
Multiple Port Configuration:	Ganged
Number of Loaded Positions:	8
Mating Entry Location:	Side
Number of Panel Ground Tabs:	7
Number of PCB Ground Tabs:	2
Panel Ground Location:	Top and Side
Port Configuration:	Multiple Ports
Port Matrix Configuration:	1 x 2
Status Indicator:	LED
Packaging:	Reel
Operating Temperature Range:	,
Contact Mating Area Plating:	Gold over Nickel
Contact Mating Area Plating Thickness:	30 µin, .76 µm
Shielded:	Yes
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Tin
PCB Termination Area Plating Finish:	Matte
Connector Height:	13.5 mm, .531 in
PCB Retention Type:	Boardlock
Boardlock Material:	LCP
Shield Panel Ground Type:	Shield has bottom panel grounds.
Sealable:	No
Grounding Options:	PCB and Panel Ground
Housing Material Temperature:	260
Reel Diameter:	33 cm
Connector Type:	Jack
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	K842
Modular Product Type:	RJ Type Jacks & Plugs
Material Flammability Standard:	UL 94V-0
SKU:	AMP2301996-7

Detailed Description

Enhance your industrial networking setup with our RJ45 Jack featuring integrated magnetics for seamless data transmission at 1GB speeds. Designed for Cat 5e applications, this connector boasts a durable LCP housing and copper alloy contacts for reliable performance. The LED indicators, in green and yellow, provide visual status updates, while the inverted latch orientation ensures secure mating. Shielded for optimal signal integrity, this right-angle mountable jack is ideal for space-constrained environments. With a panel and PCB ground option, it offers versatile installation possibilities. Trust in our UL 94V-0 compliant connector for efficient and robust connectivity in demanding industrial settings.
