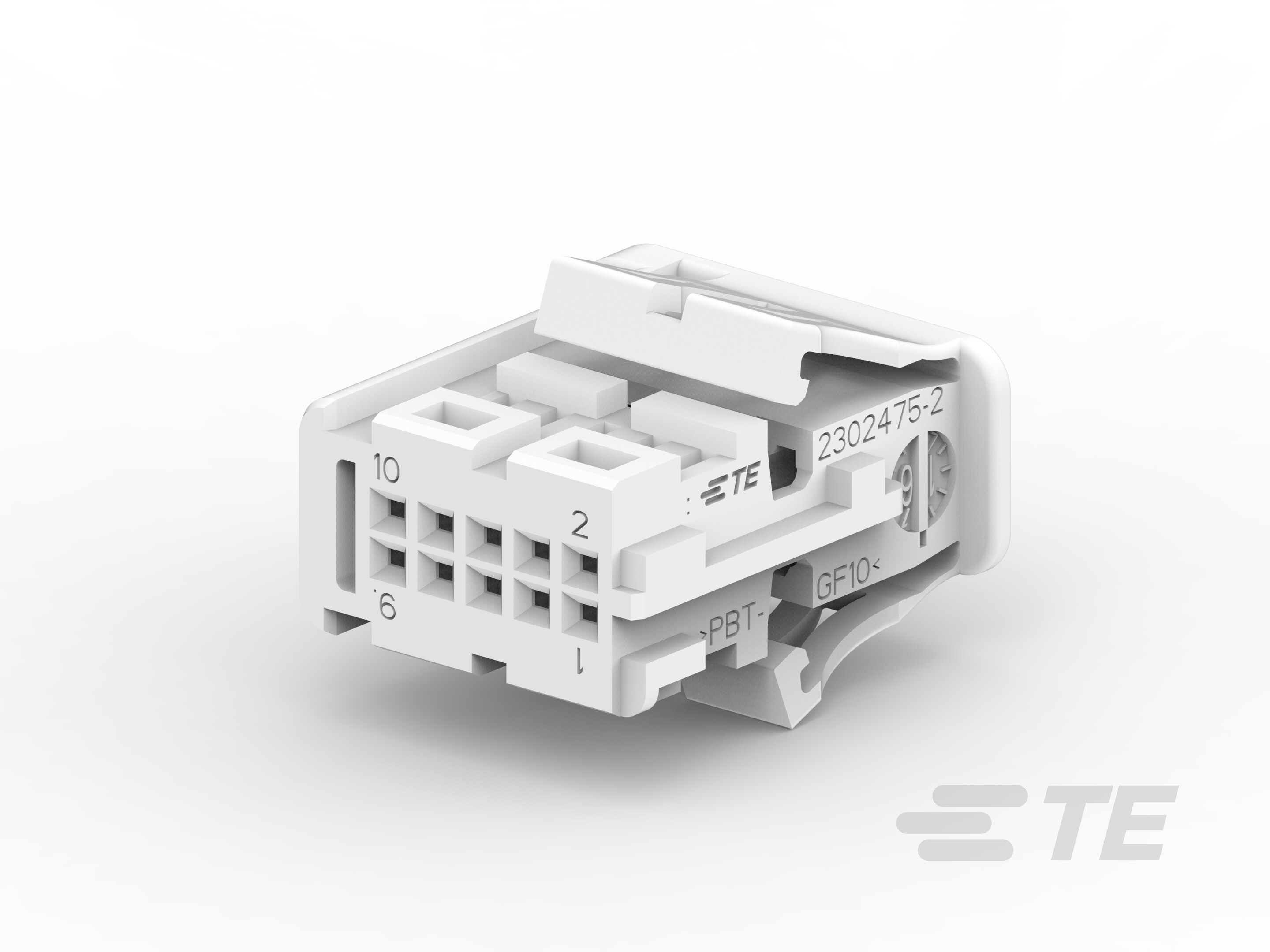

2302475-2

Heilind Number:	AMP2302475-2
Manufacturer:	TE Connectivity
Manufacturer Number:	2302475-2
Datasheet:	Catalog Section
ECAD Model:

Description:

10POS,NANOMQS,REC HSG,COD B

More >>

Specifications

Attribute	Value
Product Category:	Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2302475-2
Series:	Nano MQS
Gender:	Housing for female terminals
Number of Rows:	2
Pitch:	.071 in, 1.8 mm
Row Spacing:	.059 in, 1.5 mm
Polarization:	Yes
Body Material:	PBT GF
Number of Positions:	10
GPL:	N54
Operating Temperature Range:	-40 - 130 °C, -40 - 266 °F
Circuit Application:	Signal
Sealable:	No
GPL Description:	Automotive
Product Code:	M120
Connector System:	Wire to Board, Wire-to-Device, Wire to Wire
Mating Tab Width:	.02 in, .5 mm
Nominal Voltage Architecture:	12 V
Body Color:	Natural
Connector Code :	B
Mounting Feature:	Without
Terminal Position Assurance:	Yes
Connector Position Assurance Capable:	No
Hybrid Connector :	No
Primary Locking Feature:	On the Terminal
Material Flammability Standard:	UL 94-HB
Part Aliases:	2302475-2
SKU:	AMP2302475-2

Detailed Description

Introducing our Nano MQS Series, designed for seamless connectivity in automotive applications. This housing for female terminals features a compact design with two rows, offering a pitch of 1.8mm (.071 in) and row spacing of .059 in (1.5mm). With a total of 10 positions, it is ideal for signal transmission. Crafted from PBT GF material with UL 94-HB flammability standard, it ensures durability and safety. The operating temperature range of -40 to 130°C (-40 to 266°F) makes it suitable for various environmental conditions. Featuring a primary locking feature on the terminal, it guarantees secure connections. Compliant with RoHS standards, this connector is a reliable choice for automotive applications, whether for wire-to-wire, wire-to-board, or wire-to-device connections.
