2308107-1

AMP2308107-1
Heilind Number:AMP2308107-1
Manufacturer:TE Connectivity
Manufacturer Number:2308107-1
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

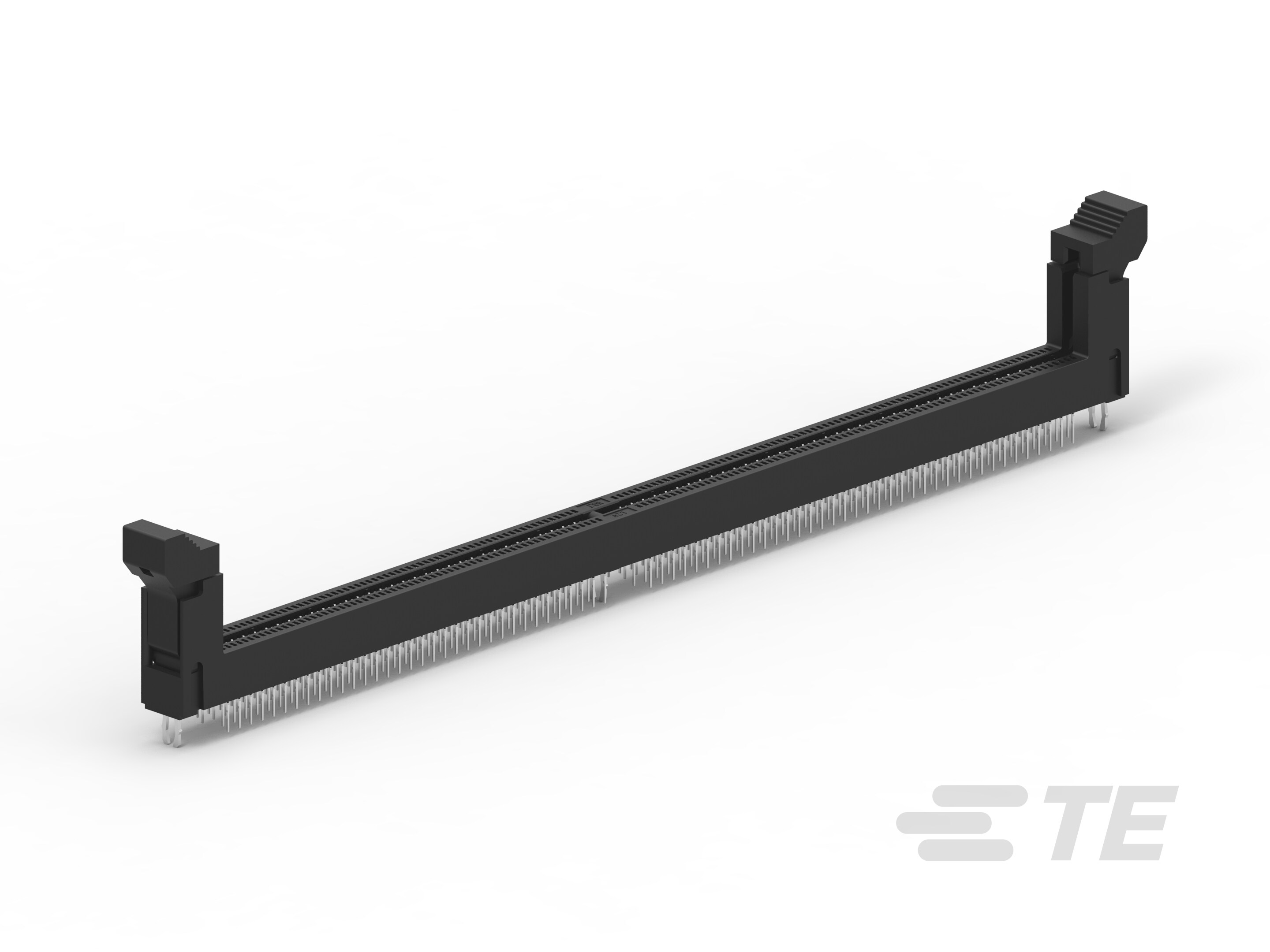

DDR4 DIMM 288 PIN TH TYPE

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2308107-1
Series:DDR4 DIMM
Amperage:.75 A
Connector Type:DIMM
Housing Material:High Temperature Thermoplastic
Number of Contacts:288
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Maximum Operating Temperature:105 °C
Body Orientation:Straight
Pitch:.033 in, .85 mm
Voltage:1.2 V
Socket Type:Memory Card
Keying:Standard
Card Orientation:Vertical
Key Type:Offset Right
Latch Material:High Temperature Thermoplastic
Contact Amperage:.75 A
Number of Positions:288
Housing Color:Black
GPL:053
Profile:Standard
Packaging:Soft Tray
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:15 µin, .38 µm
PCB Retention:With
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Tin
PCB Retention Type:Boardlock
Boardlock Material:Stainless Steel
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:E449
Connector System:Board-to-Bus Bar
Connector Product Type:Socket
ECCN:EAR99
Ejector Type:Standard
Card Insertion Style:Direct Insert
PCB Mounting Style:Through Hole
Ejector Location:Both Ends
Ejector Material:High Temperature Thermoplastic
Ejector Color:Black
Latch Color:Black
Center Key:Offset Right
Center Post:Without
DRAM Type:DDR4
Standards Met:UL 94V-0
Material Flammability Standard:UL 94V-0
Part Aliases:2308107-1
SKU:AMP2308107-1

Detailed Description

Elevate your system's performance with our DDR4 DIMM 288 PIN TH TYPE memory module. Designed for seamless integration, this high-speed DIMM features UL 94V-0 standards compliance and a robust construction of High Temperature Thermoplastic for reliable operation. With 288 copper alloy contacts and a voltage rating of 1.2V, it ensures efficient power delivery and signal transmission. Operating at temperatures ranging from -55 to 105°C, this module is suitable for diverse environments. The gold-plated contact mating area and nickel underplating guarantee excellent conductivity and longevity. Ideal for memory card applications, this DDR4 DIMM is RoHS compliant and lead-free solder capable, meeting stringent environmental standards. Upgrade your system's memory performance with this cutting-edge component.
