2309408-4

AMP2309408-4
Heilind Number:AMP2309408-4
Manufacturer:TE Connectivity
Manufacturer Number:2309408-4
Datasheet:Drawing
ECAD Model:
3D Model

Description:

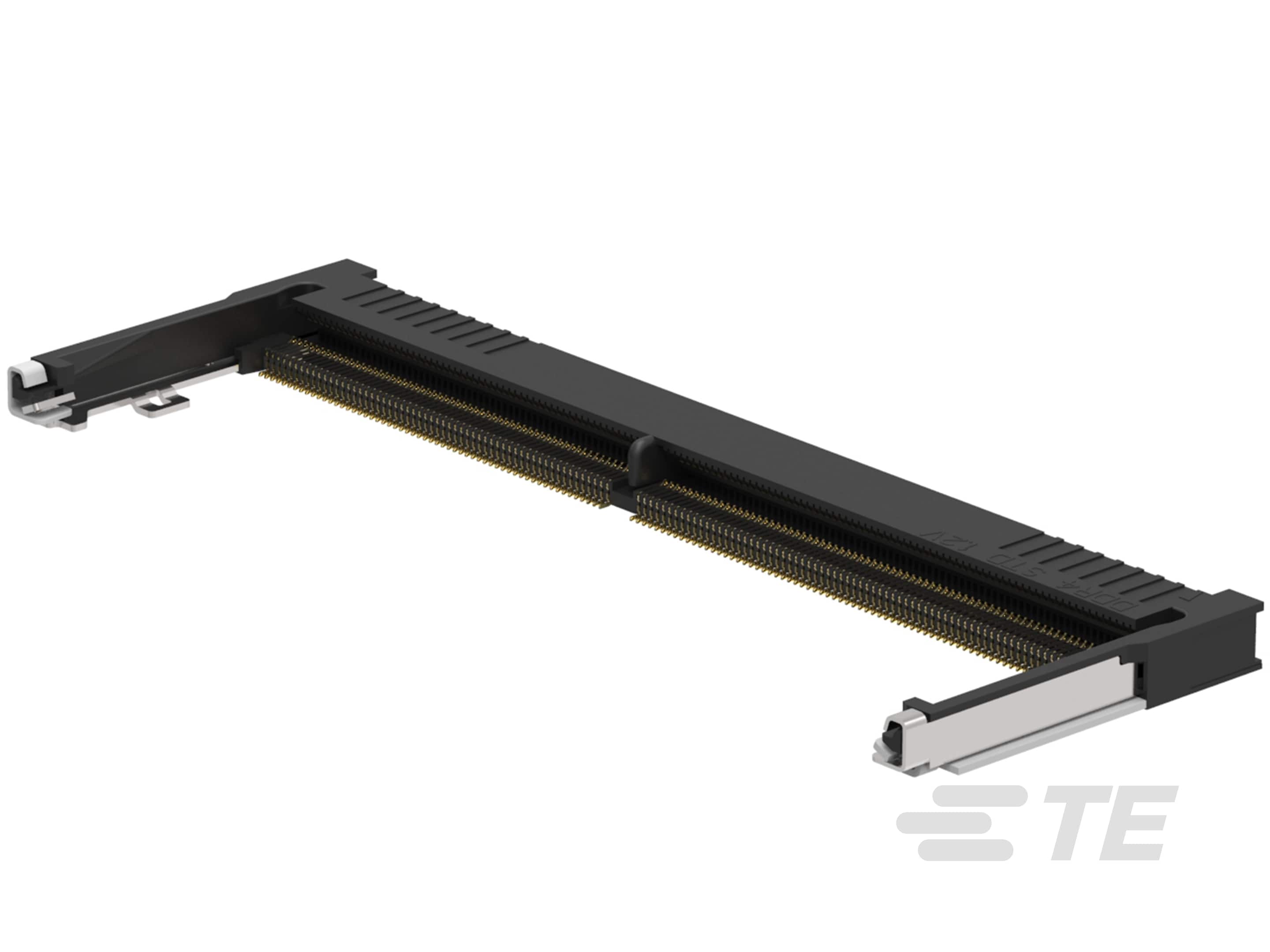

DDR4 SODIMM 260P 4.0H RVS

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2309408-4
Series:DDR4 DIMM
Housing Material:High Temperature Thermoplastic
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.0197 in, 5 mm
Voltage:1.2 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Reverse
Package Quantity:900
Latch Material:High Temperature Thermoplastic
Contact Amperage:.5 A
Number of Positions:260
Housing Color:Black
GPL:053
Profile:Low
Packaging:Tape & Reel
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:15 µin, .381 µm
PCB Retention:With
PCB Contact Termination Area Plating:Gold Flash
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L540
Connector System:Cable-to-Board
Stack Height:.157 in, 4 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Center Key:Offset Right
Center Post:Without
DRAM Type:Small Outline (SO)
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Retention Post Location:Both Ends
Material Flammability Standard:UL 94V-0
Part Aliases:2309408-4
SKU:AMP2309408-4

Detailed Description

Enhance system performance with our DDR4 SODIMM 260P 4.0H RVS Memory Module. Designed for seamless integration, this high-quality component boasts a sturdy construction with a high temperature thermoplastic housing in sleek black. Featuring 260 positions and a low profile, it ensures reliable connectivity in compact spaces. With gold flash plating on contact mating areas, it guarantees optimal signal transmission. Operating efficiently at temperatures ranging from -55 to 85°C, it's suitable for a wide range of applications. RoHS compliant and lead-free solder capable, it meets stringent environmental and safety standards. Perfect for power circuit applications, this memory socket is essential for demanding computing needs.
