2309409-2

AMP2309409-2
Heilind Number:AMP2309409-2
Manufacturer:TE Connectivity
Manufacturer Number:2309409-2
Datasheet:Drawing
ECAD Model:
3D Model

Description:

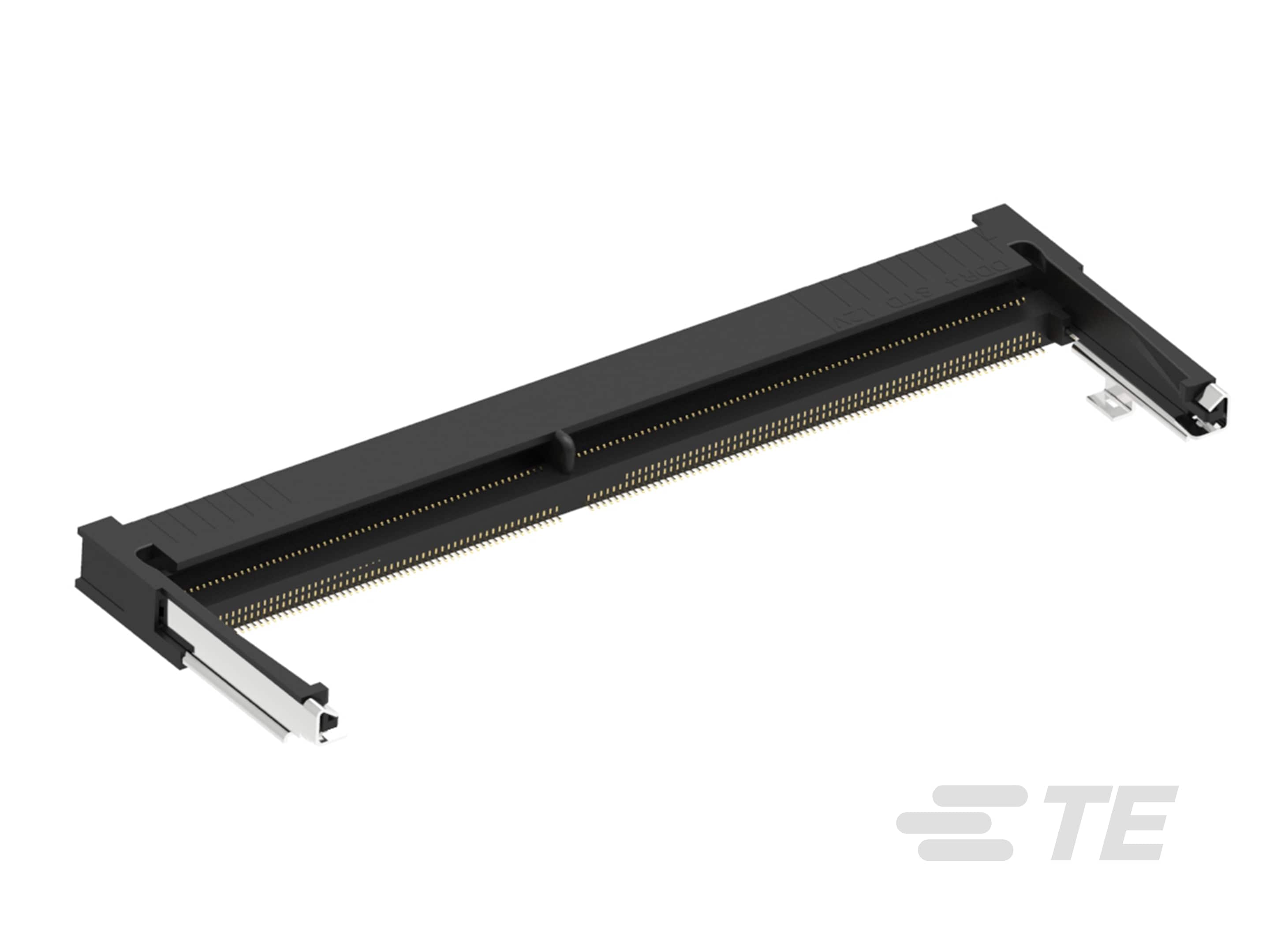

DDR4 SODIMM 260P 5.2H STD

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2309409-2
Series:DDR4 DIMM
Housing Material:High Temperature Thermoplastic
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.0197 in, 5 mm
Voltage:1.2 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Standard
Package Quantity:800
Key Type:Offset Left
Latch Material:High Temperature Thermoplastic
Contact Amperage:.5 A
Number of Positions:260
Housing Color:Black
GPL:053
Profile:Low
Packaging:Tape & Reel
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:.127 µm, 5 µin
PCB Retention:With
PCB Contact Termination Area Plating:Gold Flash
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L540
Connector System:Cable-to-Board
ECCN:EAR99
Stack Height:.205 in, 5.2 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Center Key:Offset Left
Center Post:Without
DRAM Type:Small Outline (SO)
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Retention Post Location:Both Ends
Material Flammability Standard:UL 94V-0
Part Aliases:2309409-2
SKU:AMP2309409-2

Detailed Description

Upgrade your system's memory performance with this DDR4 SODIMM 260P 5.2H STD connector. Designed for seamless board mounting, this connector features a low profile and a high-temperature thermoplastic housing, ensuring durability in various operating conditions. With a standard keying system and offset left key type, it offers easy and secure connectivity. The gold-plated contact mating area guarantees reliable signal transmission, while its compliance with RoHS regulations reflects our commitment to environmental responsibility. Perfect for power circuit applications, this connector is also lead-free solder capable, making it a sustainable choice for your electronic projects.
