2309410-1

Heilind Number:	AMP2309410-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2309410-1
Datasheet:	Product Specification
ECAD Model:

Description:

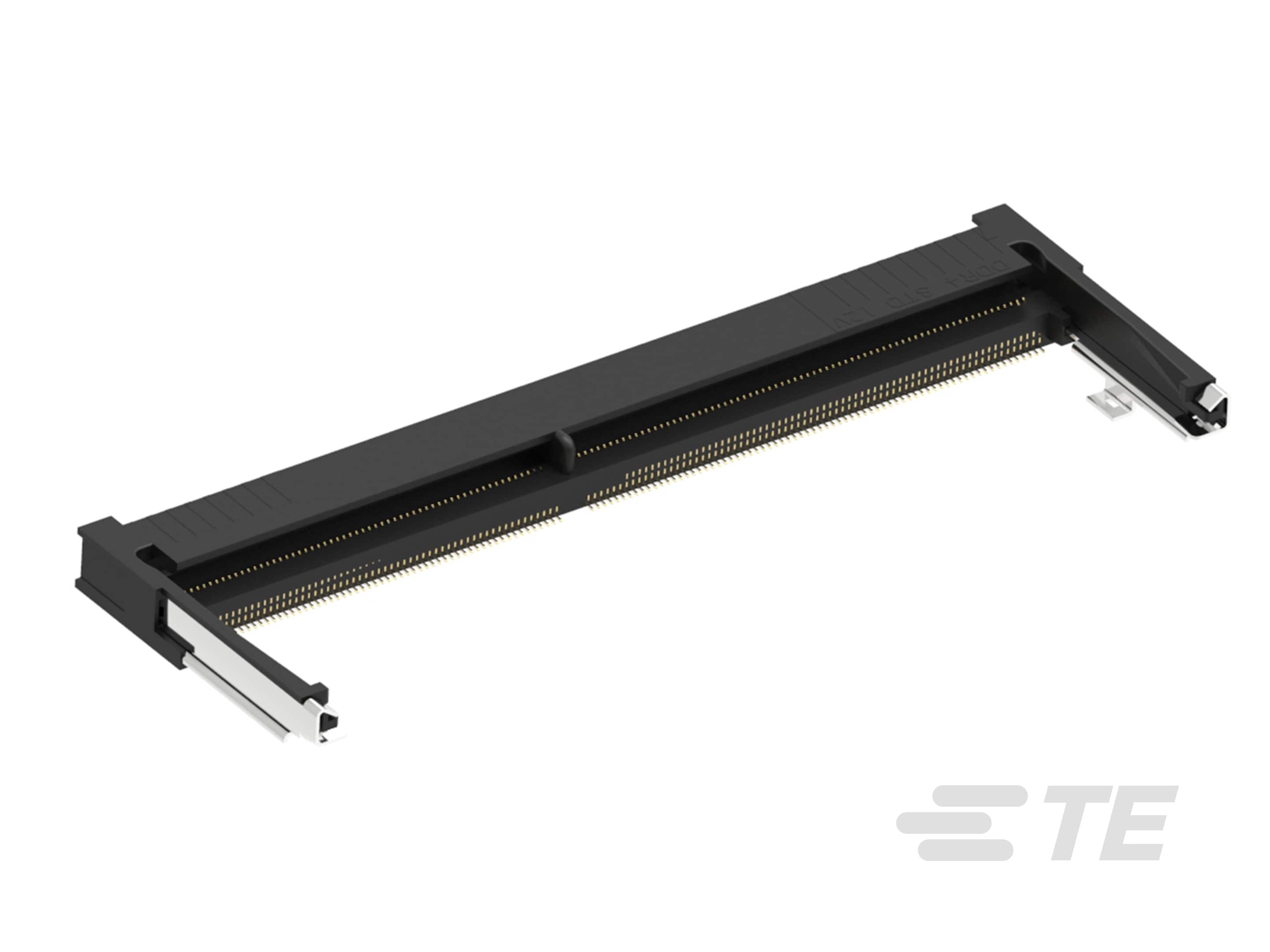

DDR4 SODIMM 260P 5.2H RVS

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2309410-1
Series:	DDR4 DIMM
Housing Material:	High Temperature Thermoplastic
Number of Rows:	2
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Pitch:	.0197 in, .129 in, 3.3 mm, 5 mm
Voltage:	1.2 V
Socket Type:	Memory Card
Row Spacing:	.322 in, 8.2 mm
Keying:	Reverse
Package Quantity:	800
Latch Material:	High Temperature Thermoplastic
Contact Amperage:	.5 A
Number of Positions:	200, 260
Housing Color:	Black
GPL:	053
Profile:	Low
Packaging:	Tape & Reel
Operating Temperature Range:	-55 - 85 °C, -67 - 185 °F
Circuit Application:	Power
Contact Mating Area Plating:	Gold Flash
PCB Retention:	With
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Gold Flash
PCB Retention Type:	Solder Peg
Sealable:	No
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	L540
Connector System:	Cable-to-Board
ECCN:	EAR99
Stack Height:	.205 in, 5.2 mm
Ejector Type:	Locking
PCB Mounting Style:	Surface Mount
Ejector Location:	Both Ends
Center Key:	Offset Right
Center Post:	Without
DRAM Type:	Small Outline (SO)
Insertion Style:	Cam-In
Socket Style:	SO DIMM
Module Orientation:	Right Angle
Retention Post Location:	Both Ends
Retention Post Material:	Copper Alloy
Material Flammability Standard:	UL 94V-0
Part Aliases:	2309410-1
SKU:	AMP2309410-1

Detailed Description

Enhance your system's memory performance with our DDR4 SODIMM 260P 5.2H RVS. Designed for seamless board mounting, this memory card connector features a high-temperature thermoplastic housing in sleek black. With a low profile and keying for reverse orientation, it ensures efficient operation in various setups. Boasting a contact material of copper alloy and gold flash plating, it guarantees reliable power transmission while meeting RoHS compliance. Operating in a wide temperature range from -55 to 85°C, it's ideal for demanding applications. The board mount connector comes in a tape & reel packaging of 800 pieces, perfect for large-scale projects. Trust in its UL 94V-0 flammability standard and ECCN classification of EAR99 for quality and compliance assurance. Elevate your connector system with our innovative solution.
