2309410-2

Heilind Number:	AMP2309410-2
Manufacturer:	TE Connectivity
Manufacturer Number:	2309410-2
Datasheet:	Statement of Compliance
ECAD Model:

Description:

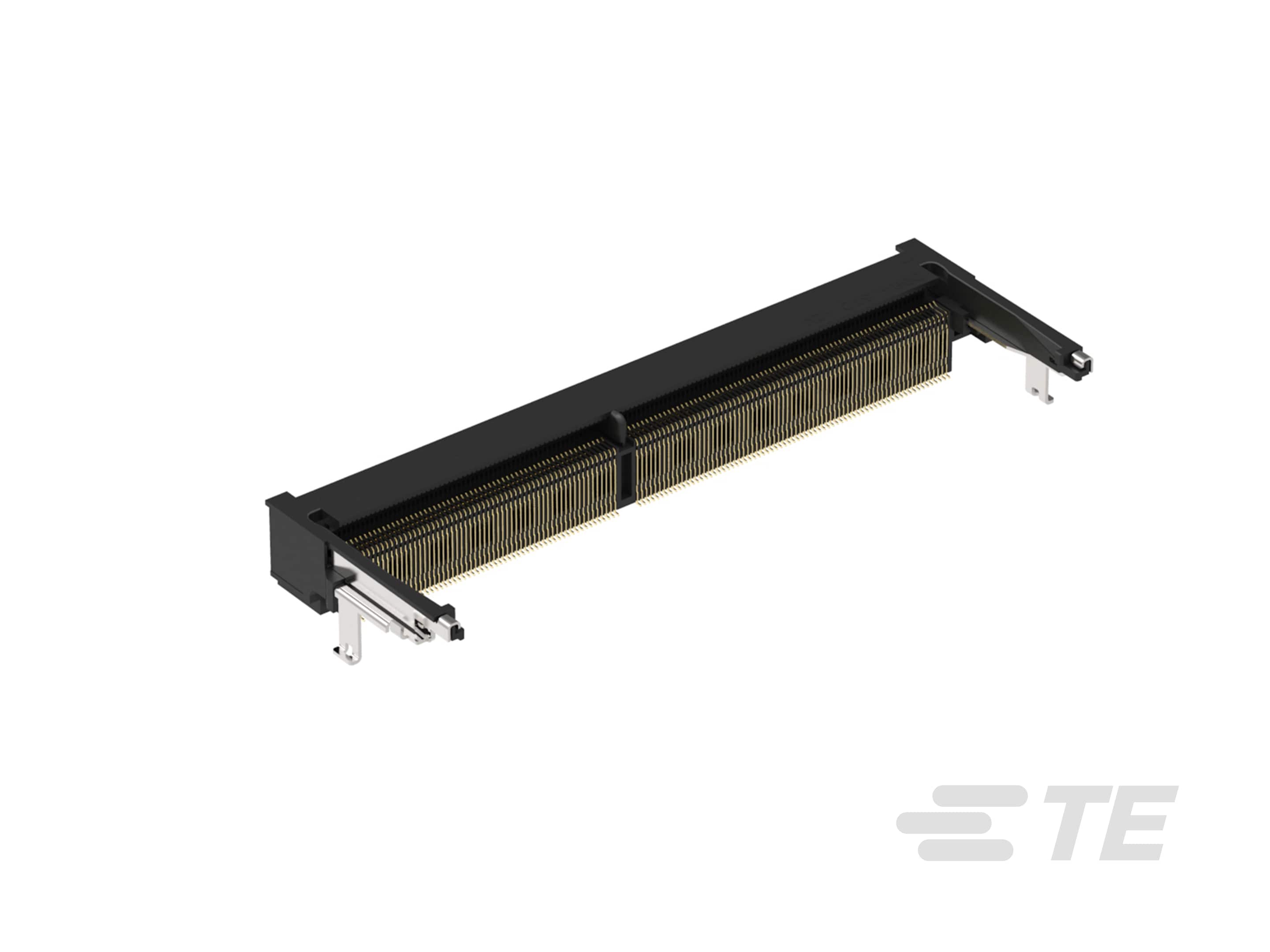

DDR4 SODIMM 260P 5.2H RVS

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2309410-2
Series:	DDR4 DIMM
Housing Material:	High Temperature Thermoplastic
Number of Rows:	2
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Pitch:	.0197 in, 5 mm
Voltage:	1.2 V
Socket Type:	Memory Card
Row Spacing:	.322 in, 8.2 mm
Keying:	Reverse
Package Quantity:	800
Latch Material:	High Temperature Thermoplastic
Contact Amperage:	.5 A
Number of Positions:	200, 260
Housing Color:	Black
GPL:	053
Profile:	Low
Packaging:	Tape & Reel
Operating Temperature Range:	-55 - 85 °C, -67 - 185 °F
Circuit Application:	Power
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.127 µm, 5 µin
PCB Retention:	With
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Gold Flash
PCB Retention Type:	Solder Peg
Sealable:	No
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	L540
Connector System:	Cable-to-Board
ECCN:	EAR99
Stack Height:	.205 in, 5.2 mm
Ejector Type:	Locking
PCB Mounting Style:	Surface Mount
Ejector Location:	Both Ends
Center Key:	Offset Right
Center Post:	Without
DRAM Type:	Small Outline (SO)
Insertion Style:	Cam-In
Socket Style:	SO DIMM
Module Orientation:	Right Angle
Retention Post Location:	Both Ends
Retention Post Material:	Copper Alloy
Material Flammability Standard:	UL 94V-0
Part Aliases:	2309410-2
SKU:	AMP2309410-2

Detailed Description

Enhance your system's memory performance with our DDR4 SODIMM 260P 5.2H RVS, a cutting-edge memory module designed for seamless integration. This high-quality component features a low-profile, board-mount design with a reverse keying feature for easy installation. Built to last, it boasts a housing made of high-temperature thermoplastic and copper alloy contacts for optimal conductivity. With a voltage rating of 1.2V and gold-plated contact mating areas, it ensures efficient power transmission. Operating in a wide temperature range and compliant with RoHS standards, it guarantees reliability in various environments. Perfect for a range of applications, from power circuits to data devices, this memory socket connector is a versatile and essential component for any project.
