2309411-1

Heilind Number:	AMP2309411-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2309411-1
Datasheet:	Statement of Compliance
ECAD Model:

Description:

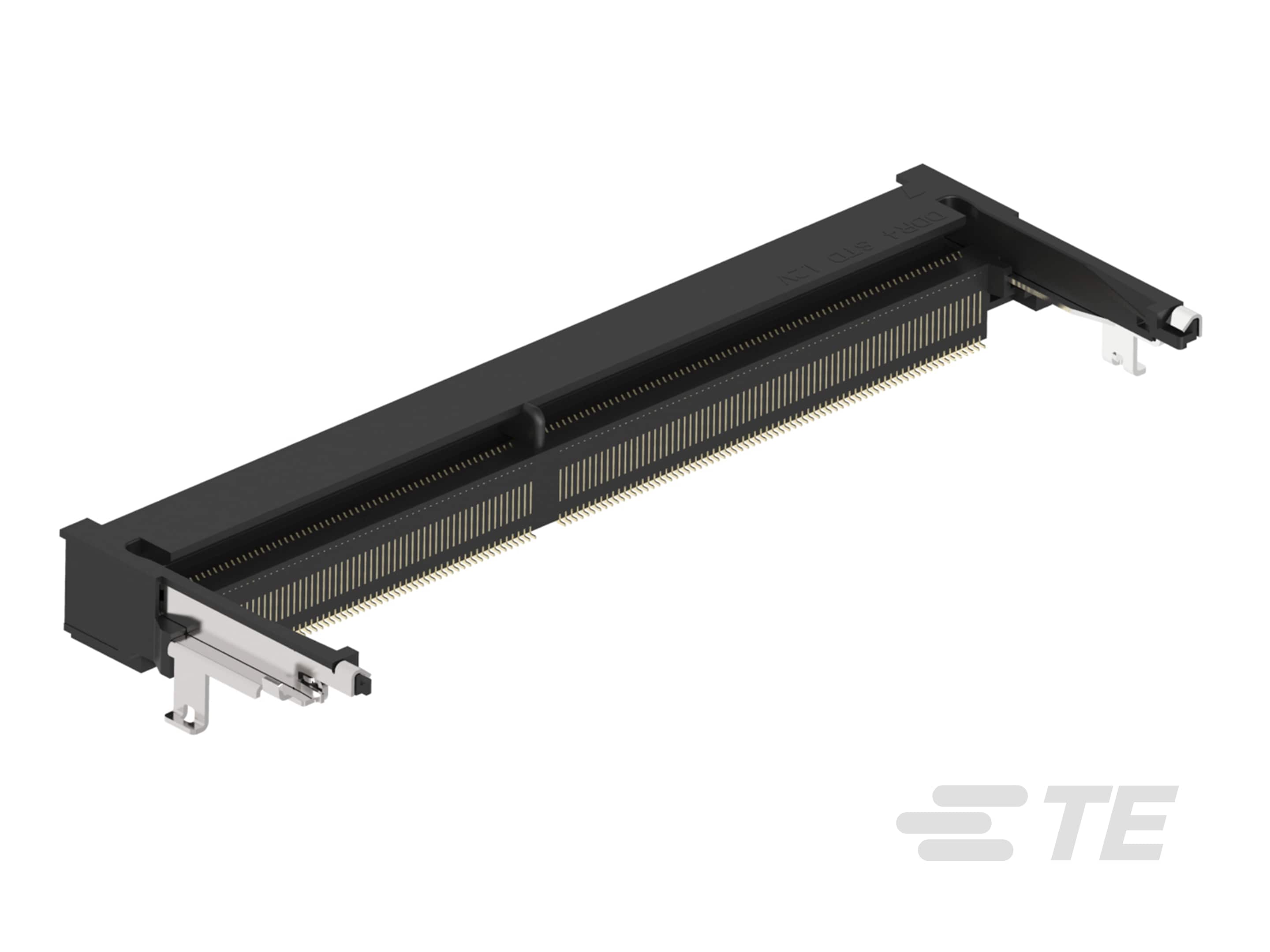

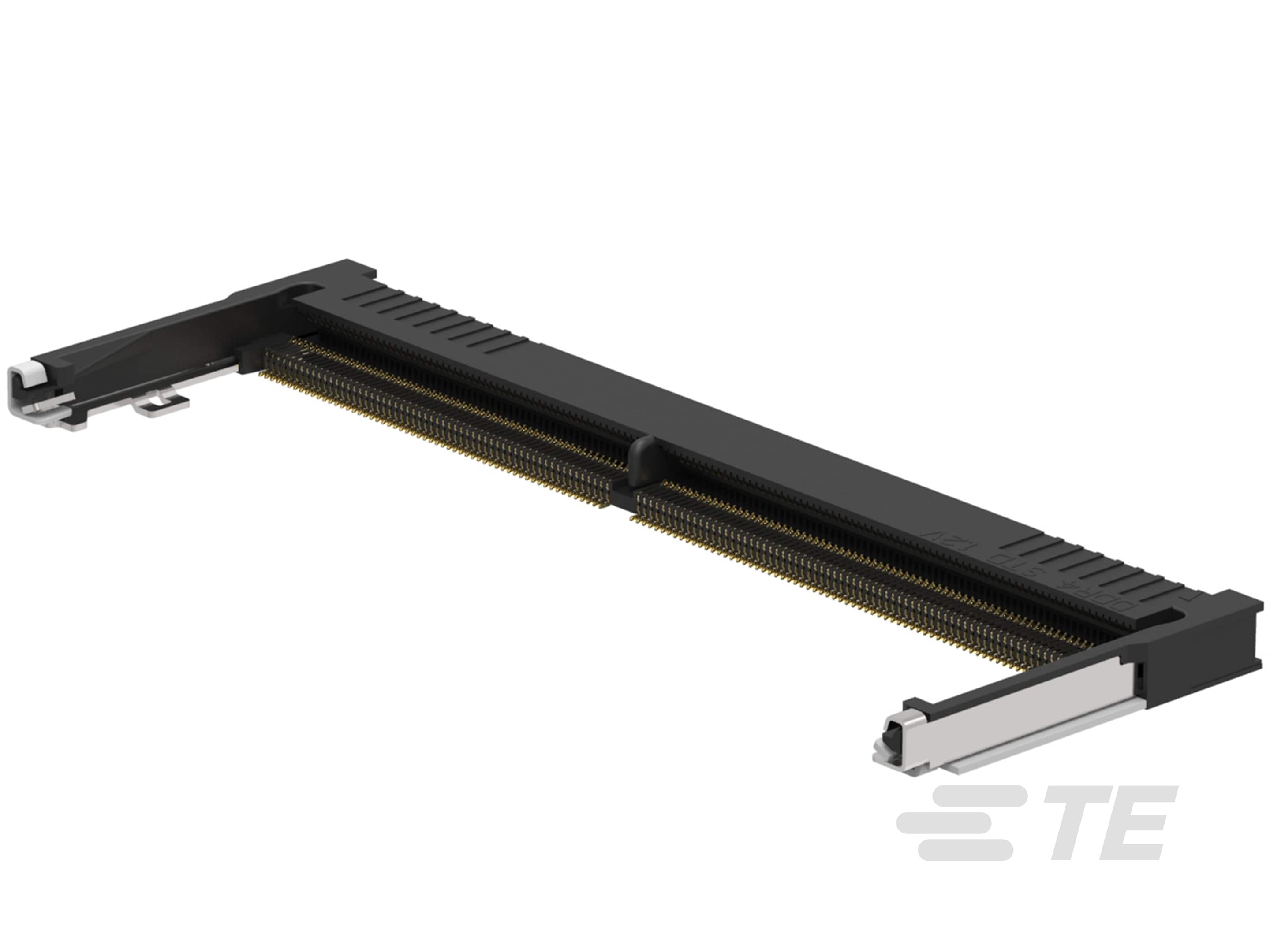

DDR4 SODIMM 260P 8.0H STD

More >>

Specifications

Attribute	Value
Product Category:	Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2309411-1
Series:	DDR4 DIMM
Housing Material:	High Temperature Thermoplastic
Number of Rows:	2
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Pitch:	.0197 in, 5.4 mm, 5 mm, 6.1 mm
Voltage:	1.2 V
Socket Type:	Memory Card
Row Spacing:	.322 in, 8.2 mm
Keying:	Standard
Package Quantity:	500
Key Type:	Offset Left
Latch Material:	High Temperature Thermoplastic
Contact Amperage:	.5 A
Number of Positions:	260
Housing Color:	Black
GPL:	053
Profile:	High
Packaging:	Tape & Reel
Operating Temperature Range:	-55 - 85 °C, -67 - 185 °F
Circuit Application:	Power
Contact Mating Area Plating:	Gold Flash
PCB Retention:	With
Contact Underplating Material:	Nickel
PCB Contact Termination Area Plating:	Gold Flash
PCB Retention Type:	Solder Peg
Sealable:	No
GPL Description:	Data and Devices
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	L540
Connector System:	Cable-to-Board
ECCN:	EAR99
Stack Height:	.315 in, 8 mm
Ejector Type:	Locking
PCB Mounting Style:	Surface Mount
Ejector Location:	Both Ends
Center Key:	Offset Left
Center Post:	Without
DRAM Type:	Small Outline (SO)
Insertion Style:	Cam-In
Socket Style:	SO DIMM
Module Orientation:	Right Angle
Retention Post Location:	Both Ends
Retention Post Material:	Stainless Steel
Material Flammability Standard:	UL 94V-0
Part Aliases:	2309411-1
SKU:	AMP2309411-1

Detailed Description

Enhance your system's memory performance with our DDR4 SODIMM 260P 8.0H STD module. This high-quality component, featuring a compact design with two rows of contacts, is ideal for board mount applications. Operating at a low 1.2V voltage, it ensures efficient power usage. The gold flash plating on the contact mating area and PCB termination guarantees reliable connectivity. With a wide operating temperature range of -55 to 85°C, this module is suitable for diverse environments. Its UL 94V-0 housing material in sleek black, along with a high-profile design, offers durability and ease of installation. Perfect for cable-to-board connections, this ECCN-compliant memory socket is RoHS compliant, making it a responsible choice for your hardware needs.
