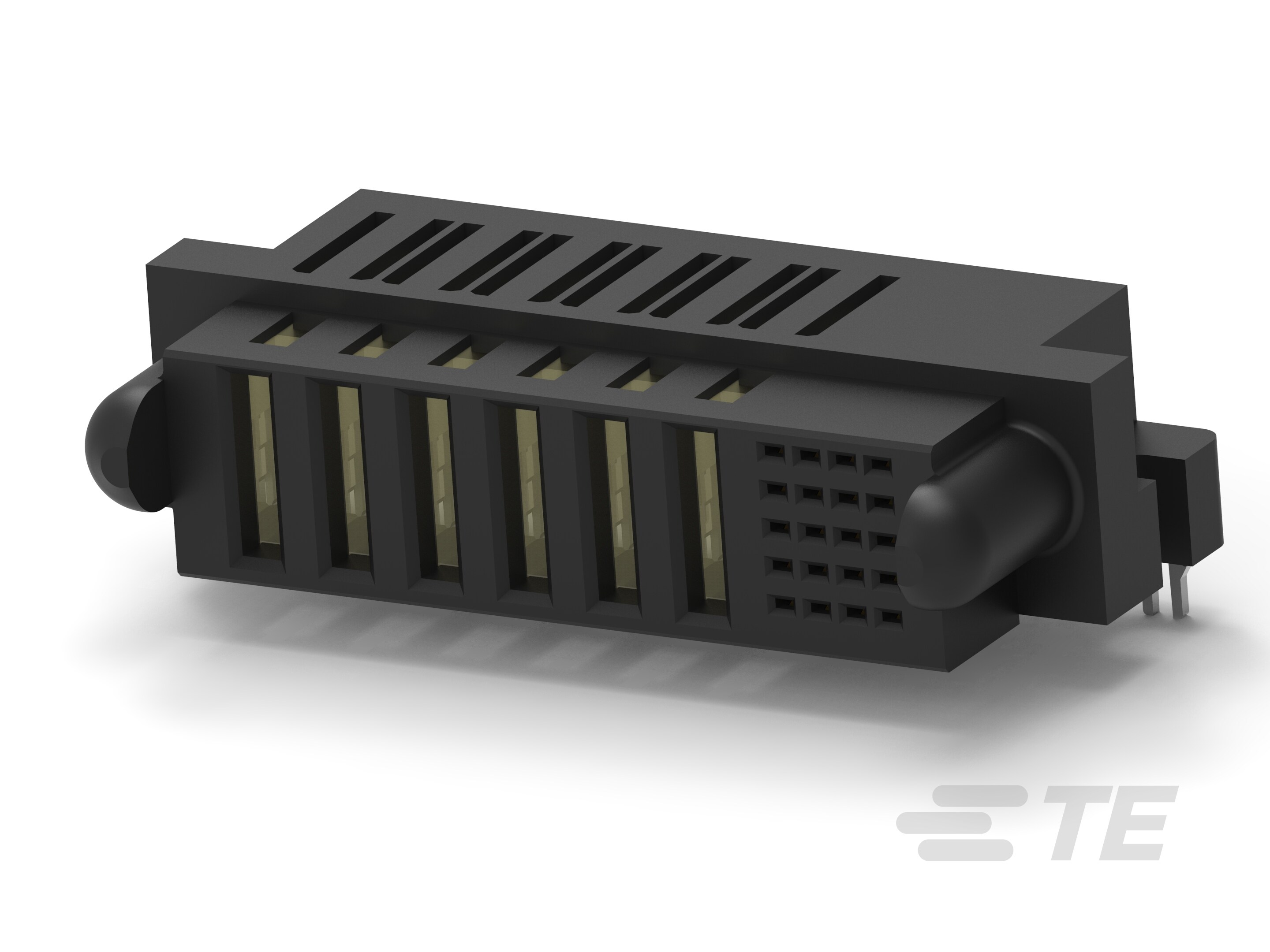

2334571-1

Heilind Number:	AMP2334571-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2334571-1
Datasheet:	Product Specification
ECAD Model:

Description:

MBPLUS R/A RCPT 20S + 6P

More >>

Specifications

Attribute	Value
Product Category:	Connectors Power Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2334571-1
Housing Material:	LCP GF30 (Liquid Crystal Polymer)
Number of Rows:	4
Voltage:	60 V AC, 60 V DC
Row Spacing:	2 mm
Contact Amperage:	100 A
Housing Color:	Black
Mount Orientation:	Right Angle
GPL:	E79
Packaging:	Box & Tray
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Gold
Sealable:	No
GPL Description:	Data and Devices
Product Code:	L843
Number of Power Positions:	6
Number of Signal Positions:	20
Connector System:	Board to Board
Contact Termination Plating:	Matte Tin
Connector Product Type:	Connector
ECCN:	EAR99
Board to Board Configuration:	Right Angle
Contact Retention:	With
Glow Wire Rating:	High Temperature Part - Not Glow Wire
Connector and Housing Type:	Receptacle Housing
Material Flammability Standard:	UL 94V-0
Part Aliases:	2334571-1
SKU:	AMP2334571-1

Detailed Description

Introducing a high-performance MBPLUS Right Angle Receptacle Connector, boasting a robust construction with 20 signal and 6 power positions for seamless power and signal transmission. Crafted from durable LCP GF30 housing material, it meets UL 94V-0 flammability standards and operates at 60V AC/DC. Ideal for power and signal applications, this connector features gold-plated contact mating areas and matte tin termination plating. With a 100A contact amperage, it ensures reliable performance in demanding environments. RoHS compliant and suitable for wave solder processes up to 265°C, it offers peace of mind in terms of environmental friendliness and assembly convenience. Perfect for board-to-board configurations, this connector is a vital component for high-temperature applications, providing secure and efficient connectivity.
