2344654-3

AMP2344654_3
Heilind Number:AMP2344654-3
Manufacturer:TE Connectivity
Manufacturer Number:2344654-3
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

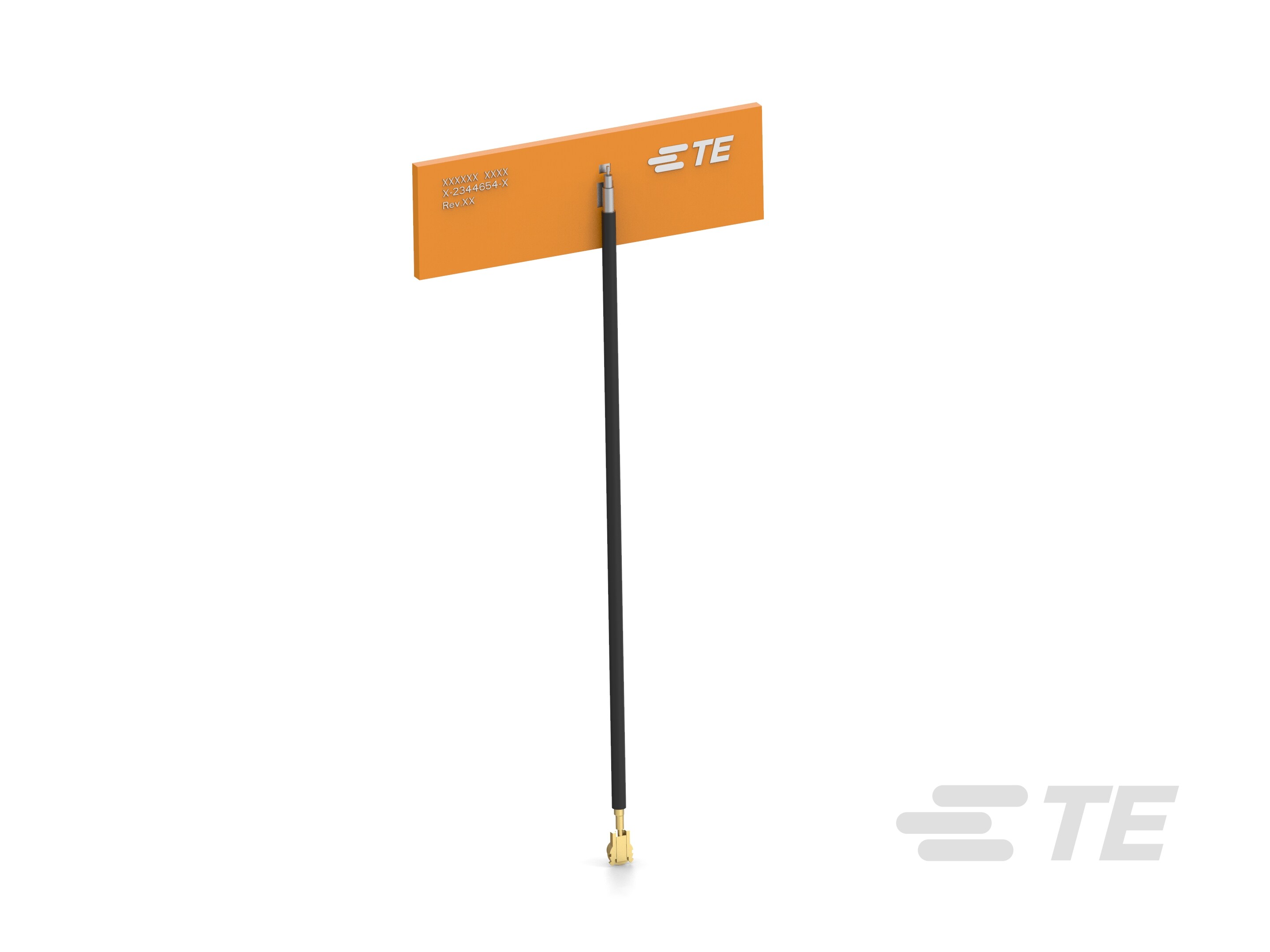

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344654-3
Gain:2 dB
VSWR:2:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Dual Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Center Frequency:2450 MHz, 5512.5 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2344654-3

Detailed Description

Stay connected with our RoHS compliant Dual Band PCB Antenna, designed for seamless integration into your wireless devices. With a 2 dB gain and 2:1 VSWR, this antenna supports ZigBee, Bluetooth, and various 802.11 protocols, ensuring reliable performance across different wireless standards. Operating in the 2.4 GHz and 5 GHz frequency bands, it offers omnidirectional coverage with linear polarization, making it ideal for Wi-Fi and Bluetooth applications. The adhesive mounting style allows for easy installation, while the 50 Ω impedance and multiple termination options (MHF, MHF1, U.FL, UMCC) ensure compatibility with a range of devices. Whether you're designing for IoT, smart home, or industrial applications, this antenna is a versatile choice for achieving optimal wireless connectivity.
