MS3456W16S-8SX

AMP2344656_5
Heilind Number:AMP2344656-5
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3456W16S-8SX
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

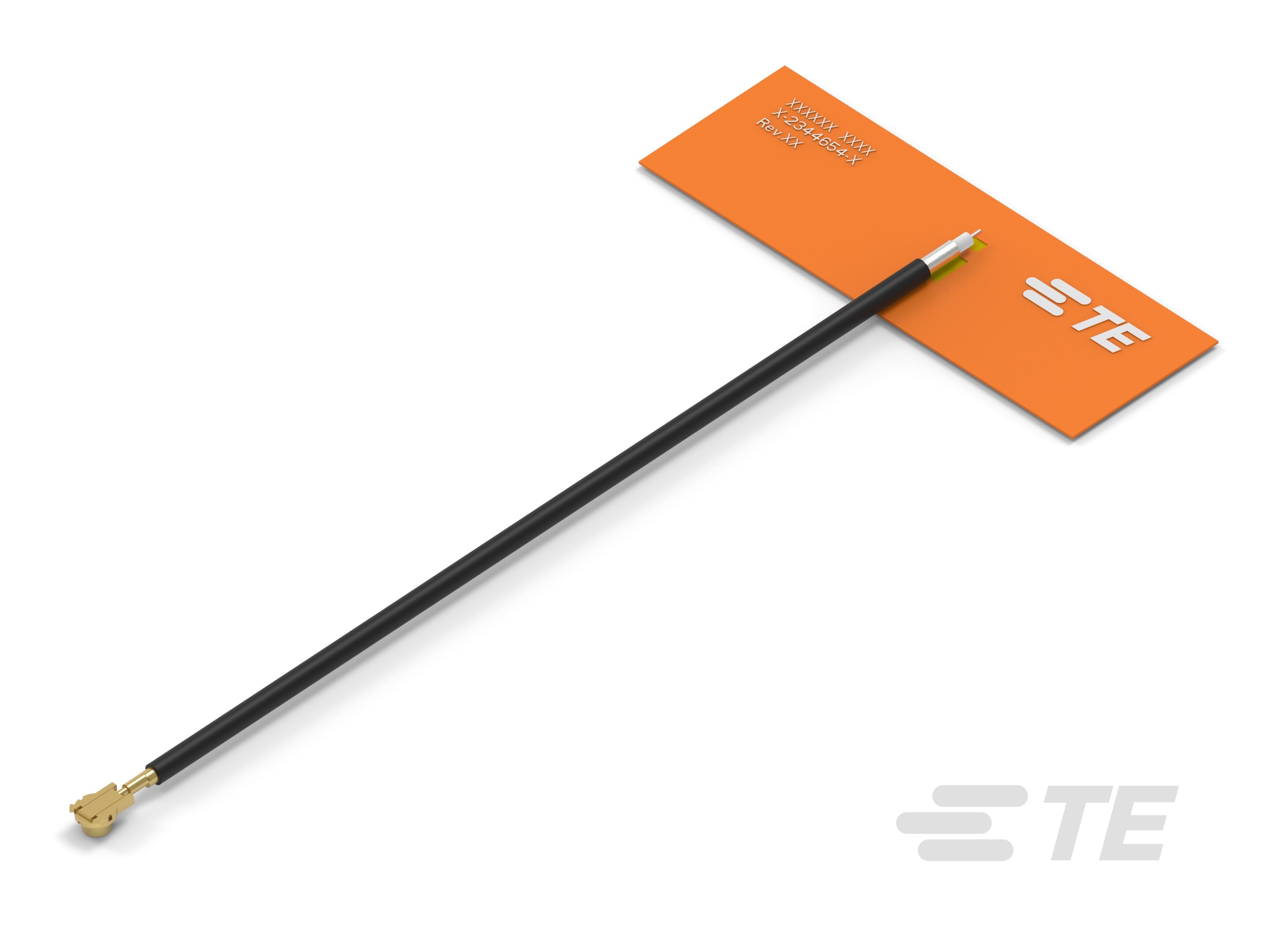

Flexible PCB (FPC) Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3456W16S-8SX
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Mounting Style:Adhesive
VSWR:2:1
Antenna Type:Flexible PCB, Thin PCB
Antenna Termination Type:MHF4
Application:Bluetooth, Wi-Fi
Band Type:Dual Band
Center Frequency:2450 MHz, 5512.5 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Gain:5 dB
SKU:AMP2344656-5

Detailed Description

Ensure seamless connectivity with this RoHS-compliant dual-band Wi-Fi antenna, designed for internal/embedded mounting. Featuring a flexible PCB construction and adhesive mounting style, it offers versatile installation options. With a gain of 5 dB and VSWR of 2:1, this omnidirectional antenna guarantees efficient signal transmission and reception. Operating in the 2.4 GHz and 5 GHz frequency bands, it is compatible with various protocols including ZigBee, Bluetooth, and 802.11 standards, ensuring broad connectivity capabilities. The antenna's linear polarization and 50 Ω impedance further enhance its performance, making it ideal for Bluetooth and Wi-Fi applications. Its MHF4 termination and single-port design provide easy integration, while its compact form factor suits space-constrained environments. Trust in this antenna for reliable, high-speed wireless communication in diverse settings.
