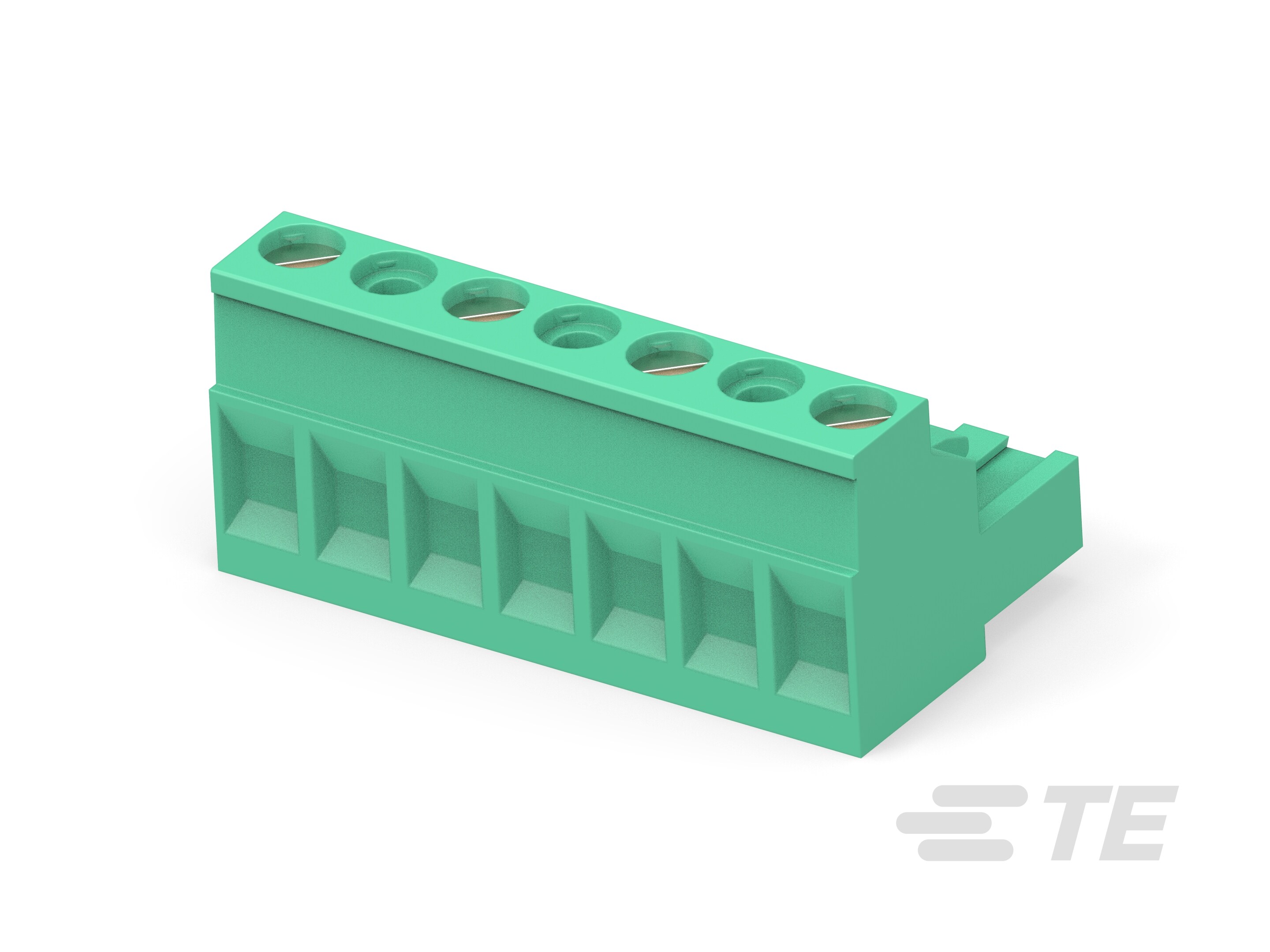

282808-4

Heilind Number:	AMP282808-4
Manufacturer:	TE Connectivity
Manufacturer Number:	282808-4
Datasheet:	Statement of Compliance
ECAD Model:

Description:

TERMI-BLOK PLUG STACKING 4P.10

More >>

Specifications

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282808-4
Amperage:	15 A
Gender:	Plug
Housing Material:	Polyamide 6/6 - GF
Number of Contacts:	4
Number of Rows:	1
Contact Material:	Phosphor Bronze
Pitch:	10 mm, .394 in
Voltage:	600 V AC
Mount Angle:	Right Angle
Block Type:	Stacking Plug
Screw Size:	M3
Package Quantity:	100
Contact Amperage:	15 A
Number of Positions:	4
Housing Color:	Green
GPL:	124
Packaging:	Box
Operating Temperature Range:	-40 - 110 °C, -40 - 230 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Wire & Cable
Product Code:	7743
Wire Size:	.03 - 2.5 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
ECCN:	EAR99
Screw Plating:	Nickel
Body Color:	Green
Entry Angle:	Top
Interlock:	With
Screw Flange:	Without
Screwless Terminal Block:	No
Wire Protection:	With
Part Aliases:	282808-4
SKU:	AMP282808-4

Detailed Description

Introducing the TERMI-BLOK Plug Stacking 4P.10, a versatile and efficient solution for power and signal connections. This right-angle stacking plug features a durable Polyamide 6/6 housing in a vibrant green color, with a secure screw termination for easy installation. With four contacts, suitable for 12-30 AWG wire sizes, it offers a reliable connection for various applications. Rated for 15A and 600V AC, this terminal block header is designed for industrial use, with a wide operating temperature range of -40 to 110°C. RoHS compliant and lead-free solder capable, it meets stringent environmental standards. Perfect for wire-to-board connections, this connector is essential for your electronic assembly needs. Each package includes 100 units, making it convenient for bulk installations. Upgrade your connectivity with the TERMI-BLOK Plug Stacking 4P.10.
